SAVÖX SV-1270TG PLUS

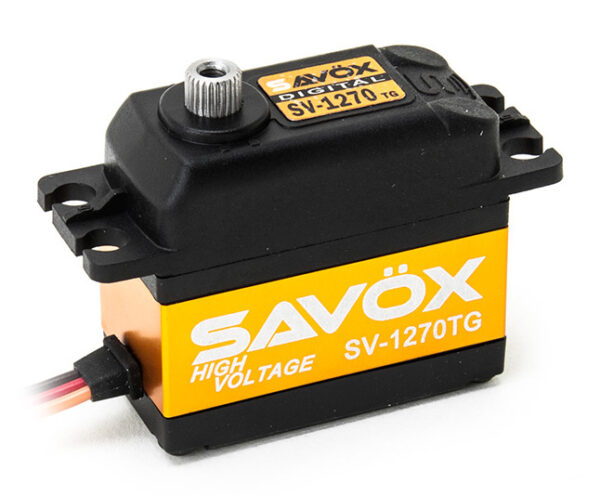

SAVÖX SV-1270TG – Monster Torque Titanium-Geared Standard-Sized Servo

This is the Savox SV-1270TG Digital High Voltage «Monster Torque» Titanium Gear Servo. Built to handle extreme requirements – this servo delivers!

Features:

• High Voltage

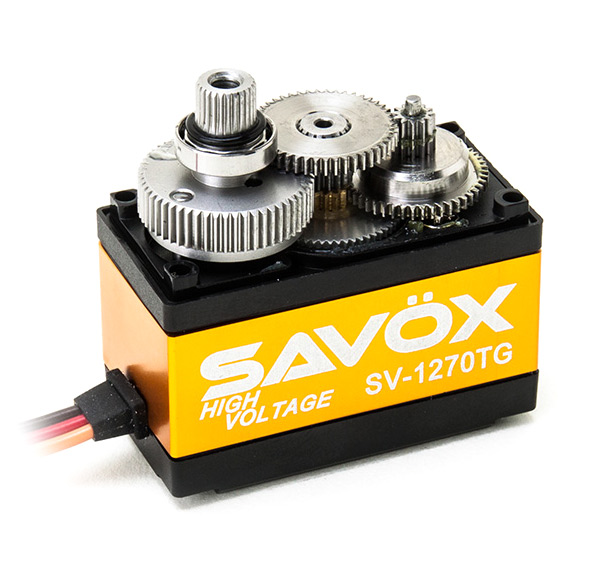

• Super strong, precision made, titanium gears provide durability that will survive heavy use

• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications

• The servo that racers desire

Specifications:

• Torque @6V: 26kg/cm

• Torque @7.4V: 35kg/cm

• Speed @6V: 0.14 sec/60 deg

• Speed @7.4V: 0.11 sec/60 deg

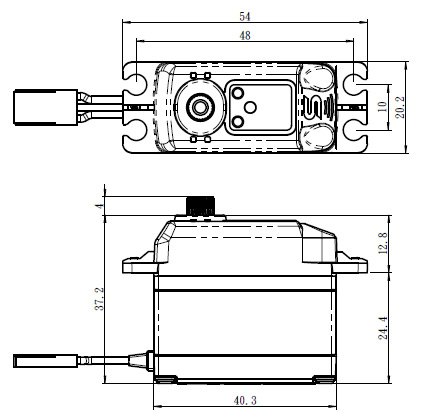

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm

• Weight: 56g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 120mA @6.0V, 150mA @7.4V

• Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 200 ± 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless
