SAVÖX SH-0257MG PLUS SOFT START

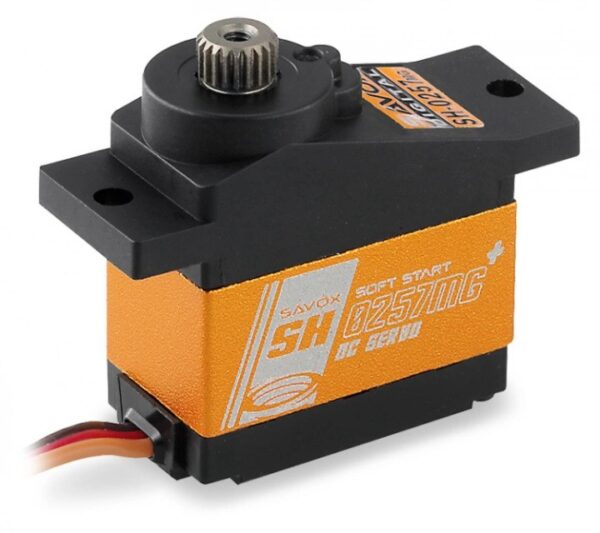

SAVÖX SH-0257MGPLUS – Metal-Geared Micro Servo

The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:

• New: Soft Start

• New: Sanwa SSR compatible

• Metal gear train ensures durability and longevity

• Aluminum middle case allows for cooler operating temperatures

• Ideal for small planes and 450 size helicopters

Specifications:

• Torque @4.8V: 1.8kg/cm

• Torque @6V: 2.2kg/cm

• Speed @4.8V: 0.13 sec/60 deg

• Speed @6V: 0.09 sec/60 deg

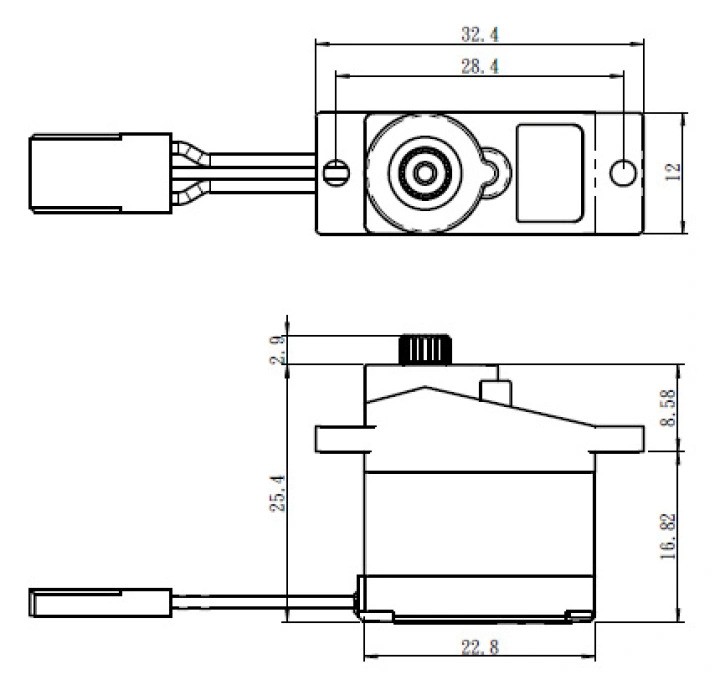

• Dimensions L x W x H: 22.8 x 12.0 x 25.4mm

• Weight: 14g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 150mA @4.8V, 180mA @6.0V

• Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 250 ± 5mm

• Output Gear Spline: 21 Tooth

• Bearings: 1BB

• Operating Travel: 90° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 700 → 2300 µ second

• Maximum Travel: Appx 150° (700 → 2300 µ second)

• Refresh Rate: 240 Hz

• Motor Type: Brushed
