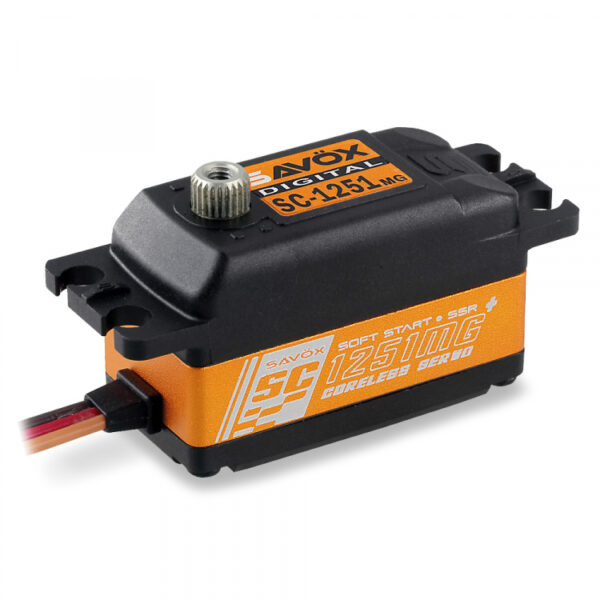

SAVÖX SC-1251MG PLUS SOFT START LOWPROFILE

SAVÖX SC-1251MG – Metal-Geared Digital Low-Profile Servo – PLUS/V2

The SC-1251MG is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• NEW! Softstart Function

• NEW! Sanwa SSR compatible

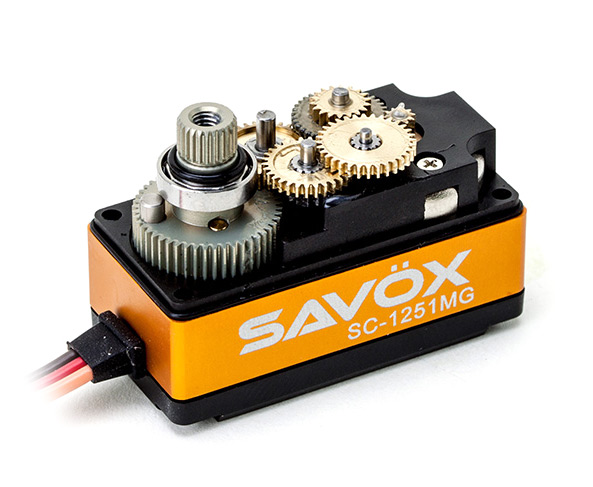

• Metal gear train ensures durability under harsh situations

• Ideal for 1/10 on road vehicles and some boat applications

• Aluminum case provides cooler operating temperatures

Specifications:

• Voltage range: 4.8-6.6V

• Torque @ 4.8V: 7kg/cm

• Torque @ 6V: 9kg/cm

• Speed @ 4.8V: 0.10 sec/60 deg

• Speed @ 6V: 0.09 sec/60 deg

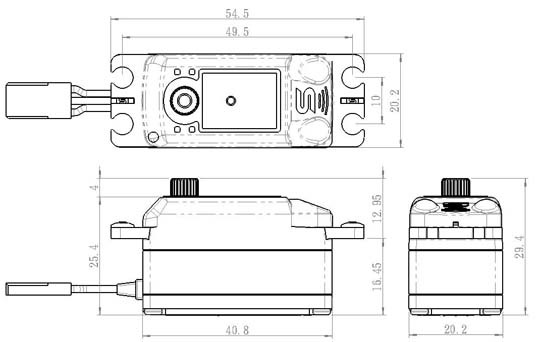

• Dimensions L x W x H: 40.3 x 20.2 x 25.4mm

• Weight: 44.5g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 150mA @4.8V, 180mA @6.0V

• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 300 +/- 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 90° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 950 → 2050 µ second

• Maximum Travel: Aprox. 160° (700 → 2300 µ second)

• Refresh Rate: 240 Hz

• Motor Type: Coreless
