SAVÖX SC-1256TG PLUS

SAVÖX SC-1256TG – Titanium-Geared Digital Coreless Standard-Sized Servo

The SC1256TG servo is a great servo for those looking to replace a standard servo with one that has superior specifications.

Features:

• Titanium gears ensure long life, durability and lighter weight

• Aluminum middle case to help with cooler operating temperatures

• Great replacement for RTR servos and other 1/10 off road vehicles

Specifications:

• Torque @ 4.8V: 16kg/cm

• Torque @ 6V: 20kg/cm

• Speed @ 4.8V: 0.18 sec/60 deg

• Speed @ 6V: 0.15 sec/60 deg

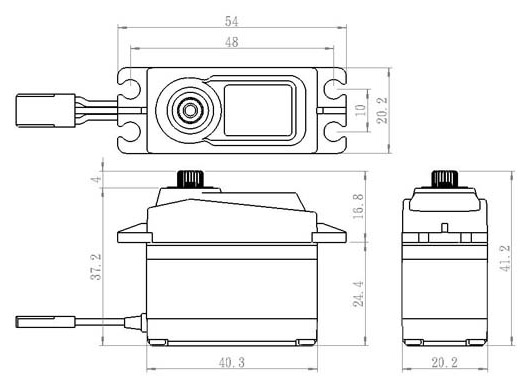

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm

• Weight: 52.4g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 100mA @4.8V, 120mA @6.0V

• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 250 +/- 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless
