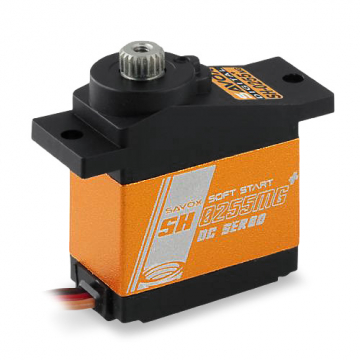

SAVÖX SH-0255MG PLUS SOFT START

SAVÖX SH-0255MG PLUS – Metal-Geared Digital Micro Servo – V2

The Savox SH-0255MG+ micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:

• Metal gear train ensures durability and longevity

• Aluminum middle case allows for cooler operating temperatures

• Ideal for small planes and 450 size helicopters

• Soft Start

Specifications:

• Torque @4.8V: 3.1kg/cm

• Torque @6V: 3.9kg/cm

• Speed @4.8V: 0.16 sec/60 deg

• Speed @6V: 0.13 sec/60 deg

• Dimensions L x W x H: 22.8 x 12.0 x 29.4mm

• Weight: 15.8g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 180mA @4.8V, 240mA @6.0V

• Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 250 ± 5mm

• Output Gear Spline: 21 Tooth

• Bearings: 1BB

• Operating Travel: 90° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 750 → 2250 µ second

• Maximum Travel: Appx 145° (750 → 2250 µ second)

• Refresh Rate: 240 Hz

• Motor Type: Brushed
