SAVÖX SC-1258TG PLUS SOFT START

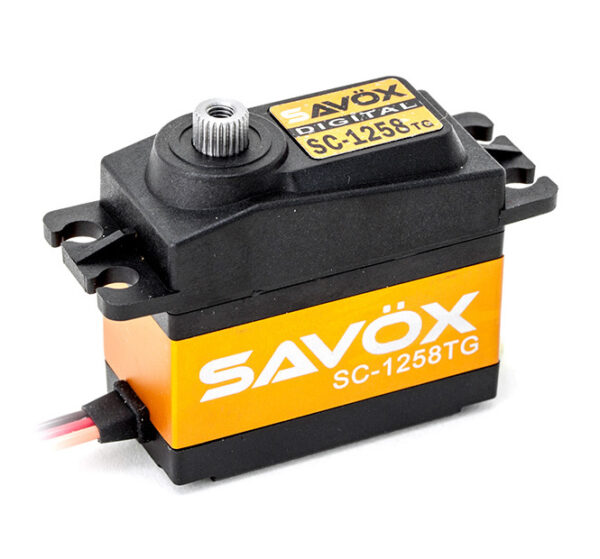

SAVÖX SC-1258TG – Titanium-Geared High-Speed Digital Standard-Sized Servo

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:

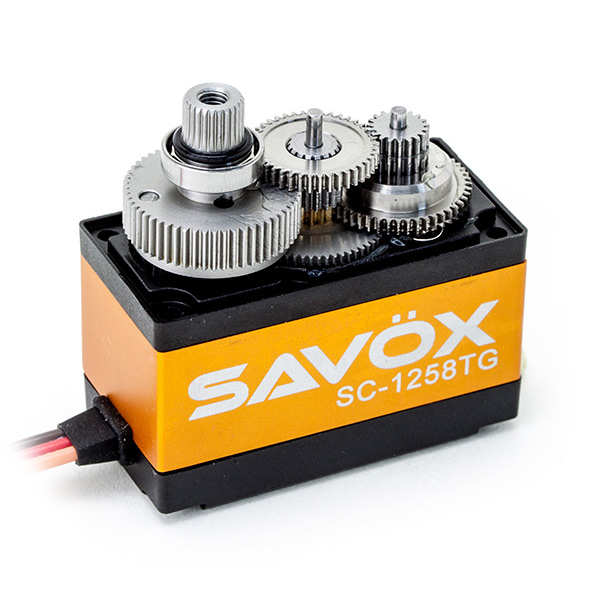

• Extremely strong titanium gears ensure long-life, durability and light weight

• Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies

• Aluminum middle case allows for cooler operating temperatures

Specifications:

• Torque @ 4.8V: 9.6kg/cm

• Torque @ 6V: 12kg/cm

• Speed @ 4.8V: 0.10 sec/60 deg

• Speed @ 6V: 0.08 sec/60 deg

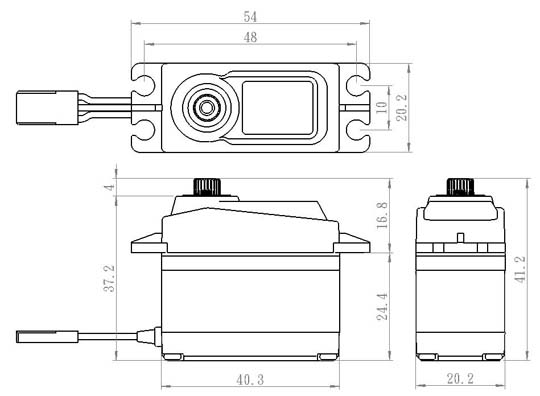

• Dimensions L x W x H: 40.8 x 20.2 x 37.2mm

• Weight: 64g

Technical Details:

• Operating Temperature: -10° to 50°C

• Running Current (no load): 100mA @4.8V, 120mA @6.0V

• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 250 +/- 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless
