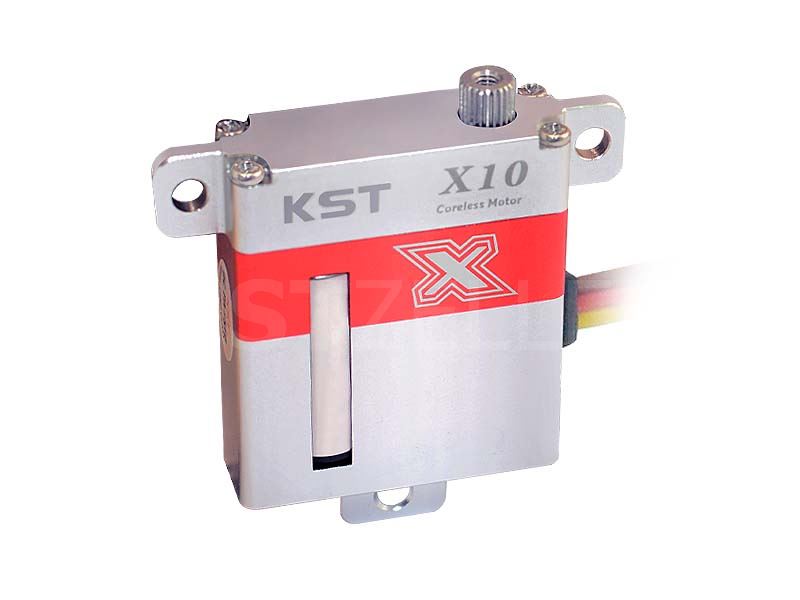

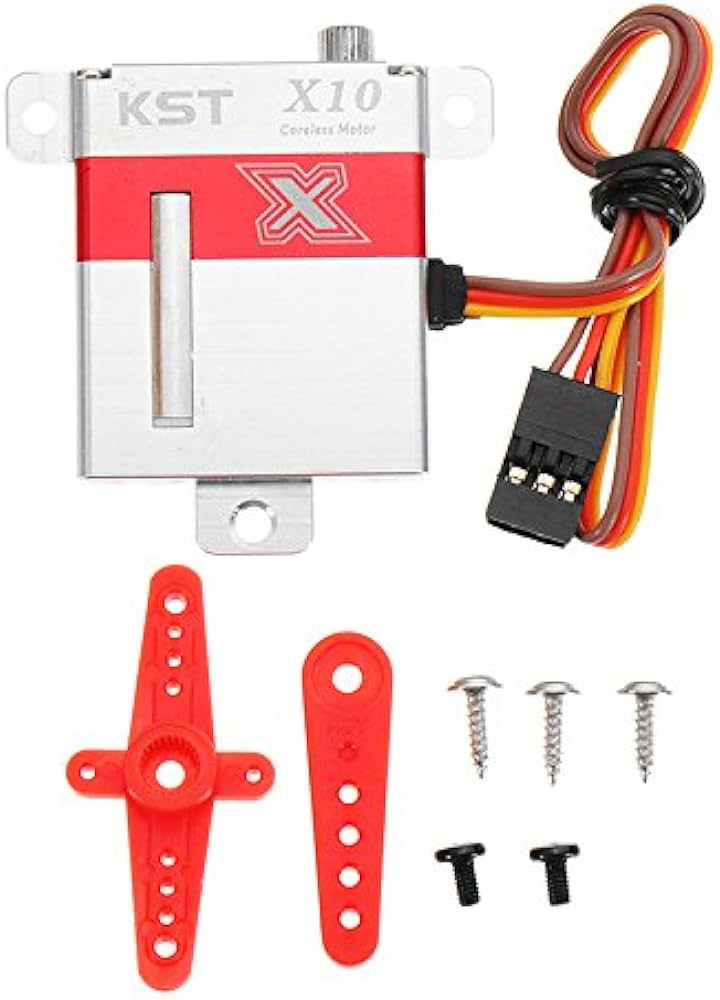

KST X10 V8.0 WING SERVO

The newest wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice it’s price.

Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes… it’s just awesome.

Features

• Compact and Lightweight Design


• Extreme Torque and Excellent Speed

• Excellent Heat Dissipation

Specification

• Item: X10 Servo

• Operating voltage: 4.8V-8.4V

• Torque: 6.2Kg.cm@4.8V,  7.5Kg.cm@6.0V,  10.8Kg.cm@8.4V

• Speed: 0.16sec/60° @4.8V,  0.14sec/60° @6.0V,  0.12sec/60°@8.4V

• Travel Angle: ±50°=100° Total

• Dimensions: 30*10*35.5mm ±0.2mm

• Lead length: 15cm

• Weight: 28g

• Bearing: Dual ball bearings


• Gear material: Steel gear version


• Motor Type: Coreless


• Case Material: Aluminum
