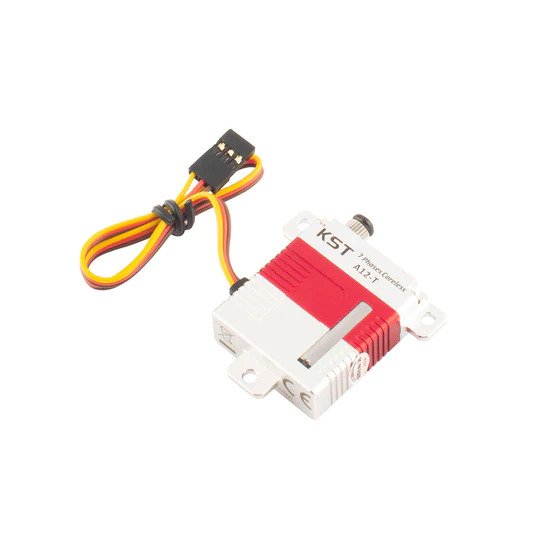

KST A12-T METAL GEAR HV 20,39KG WINGSERVO

The KST A12-T servo uses a magnetic (hall effect) sensor to provide position feedback,

replacing the troublesome sliding contact potentiometer used in most sevos.

This improves the reliability of the servo enormously, while also proviing better accuracy and resolution.

The A12-T also benefits from an ultra-efficient coreless motor, a steel gear train, aluminum case, slow start,

low current consumption and constant power output. These make it perfect for high performance gliders, larger electric models and jets.

This servo uses a mini 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.

Features

• 7 Phase Coreless DC Motor

• Compact and light weight design

• Excellent torque and speed

• Designed for high performance RC Gliders

• Excellent heat dissipation

• Programing box/USB link compatible

Specification

• Item: A12-T Digital Metal Gear HV Servo

• Rated Voltage DC7.4V

• Voltage Range DC6.0V-8.4V

• Torque: 1.6N.m@6.0V, 1.8N.m@7.4V, 2.0N.m@8.4V

• Torque: 16.31kg-cm@6.0V, 18.35kg-cm@7.4V,20.39kg-cm@8.4V

• Speed: 0.15sec/60°@6.0V, 0.13sec/60°@7.4V, 0.12sec/60°@8.4V

• Working Frequency 1520us/333Hz

• Default Travel Angle ±60° = 120° Total

• Temperature Range: -10℃……+60℃

• Soft Start: Yes

• Programable: Yes

• Case Material: Aluminum Alloy

• Motor Type: 7 Phases Coreless DC Motor

• Gear Set Material: Hardened Steel

• Position Sensor: Contactless(Magnetic sensor)

• Ball Bearing: 2BB

• Case Dimensions: 30mm*12mm*35.5mm±0.2mm

• Weight: 32g±10%
