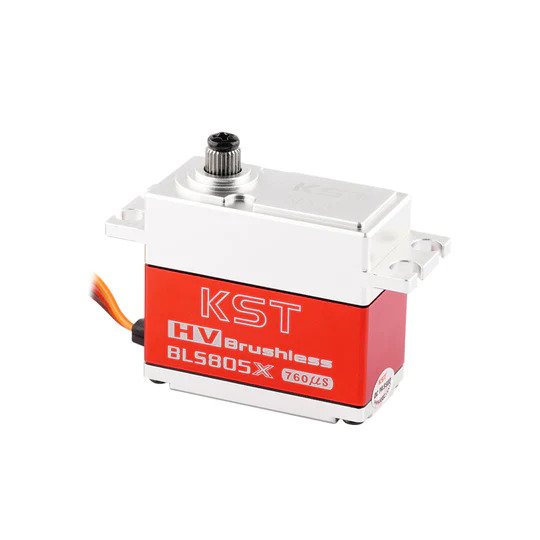

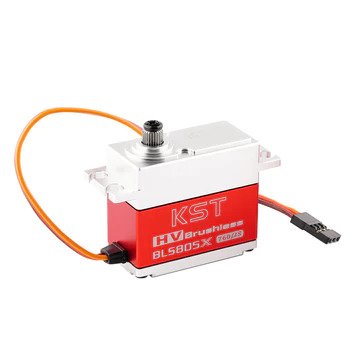

KST BLS805X TAIL SERVO V8.0

KST BLS805X Servo is very solid due to the aluminium housing and the solid metal gear.

The high positioning speed and the extremely accurate setting back to initial position allow an optimal performance in the 3D helicopter aerobatics.

It is very fast because of the neutral impulse of 760µs and a possible frequency of  560Hz.

Features

• Extreme torque and Excellent speed

• CNC aluminium case

• Brushless DC Motor

• Two Ball Bearings

Specification

• Item: BLS805X HV Brushless Tail Servo

• Operating Voltage: DC6.0V-8.4V


• Dimension : 40.5*20*38mm

• Torque : 5.5Kg.cm@6.0V,  6.5kg.cm@7 .4V,  7. 5kg.cm@8.4V

• Speed: 0.048sec/60° @6.0V,   0.042sec/60°@7.4V,   0.039sec/60°@8.4V

• Weight: 70g

• Palse width: 760us/560Hz

• Motor: Brushless

• Ball Bearing: 2BB

Size
