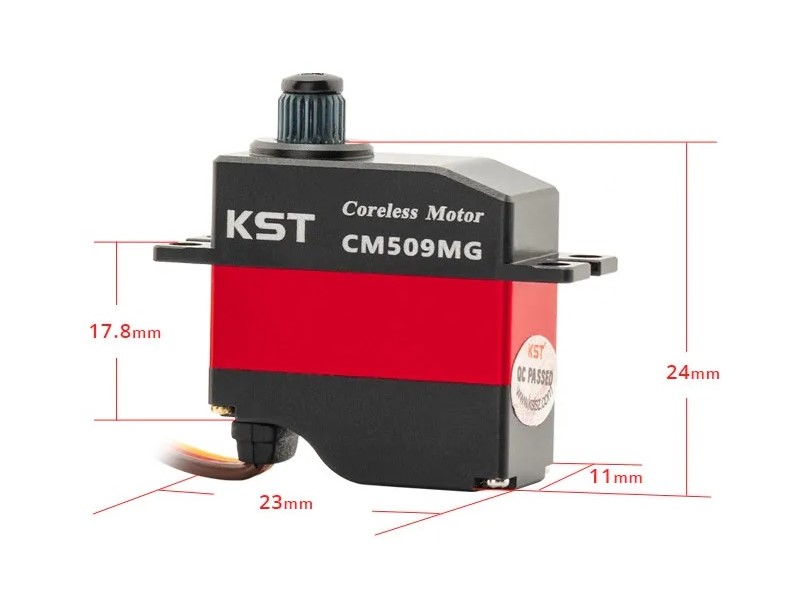

KST CM509 HV SERVO

• High Torque & Amazing Speed
• Compact and Lightweight Design
• Programmable
• Dual Ball Bearings
• Coreless DC Motor
• Ideal for Small Scale RC Planes & Cars

• Item: CM509MG Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC4.8V-8.4V
• Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
• Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
• Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±50° =100° Total
• Temperature Range: -10℃…….+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless Motor
• Gear Set Material: Metal Gear
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 23mm*11mm*24mm ±0.2mm
• Weight: 15g±10%

Size

• 1 * CM509MG Micro Servo
• 2 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw
