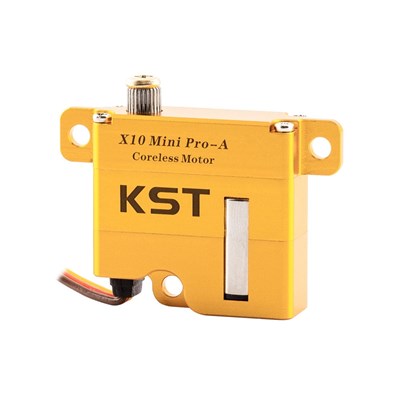

KST X10 MINI PRO-A SERVO

The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.



Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.



Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.

Features

• Programmable
• Supports Soft Start
• Hardened Steel Gears
• Anodized CNC Aluminium Case
• Ultra High Torque & Excellent Speed
• Smaller Size and Larger Travel Angle
• Ideal for Competition Gliders and Large Scale Gliders

Specification

• Item: X10 Mini Pro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC4.8V-8.4V
• Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V
• Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60°=120° Total
• Temperature Range: -10℃…….+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 30mm*10mm* 28mm±0.2mm
• Weight: 20g±10%
