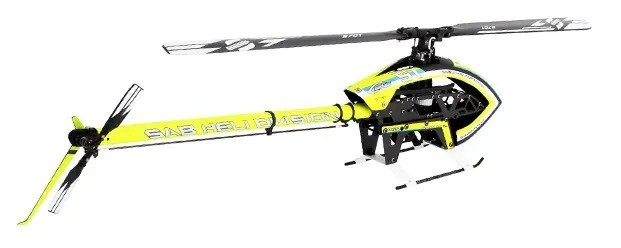

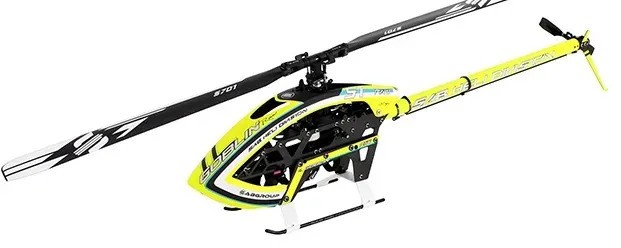

ILGOBLIN RAW YELLOW

AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
