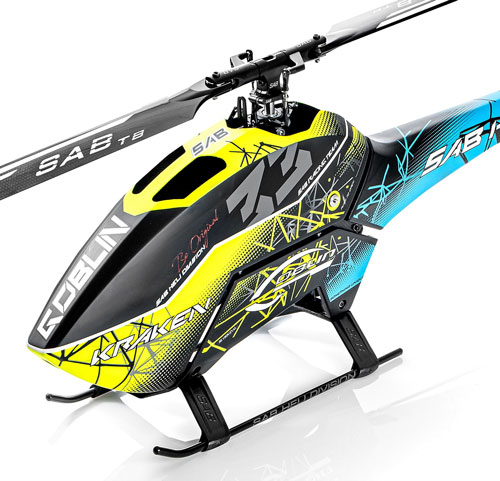

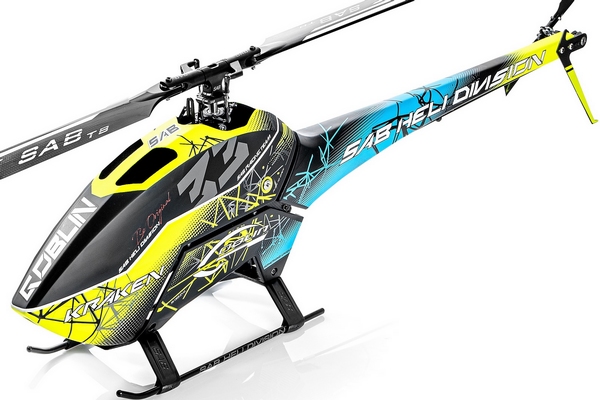

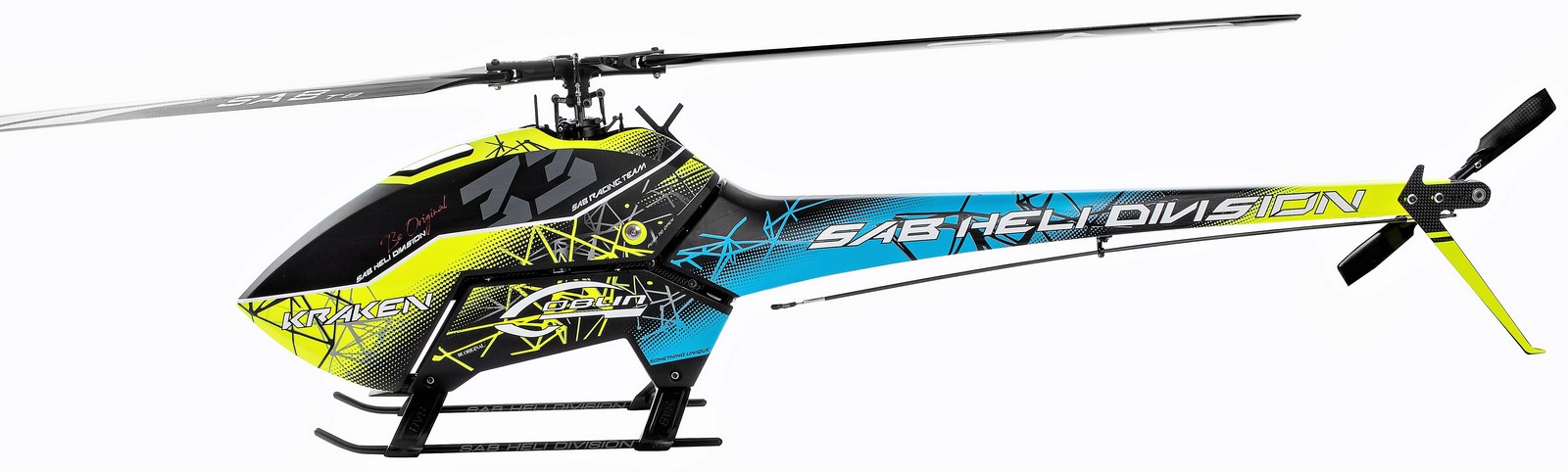

GOBLIN KRAKEN 580 KIT

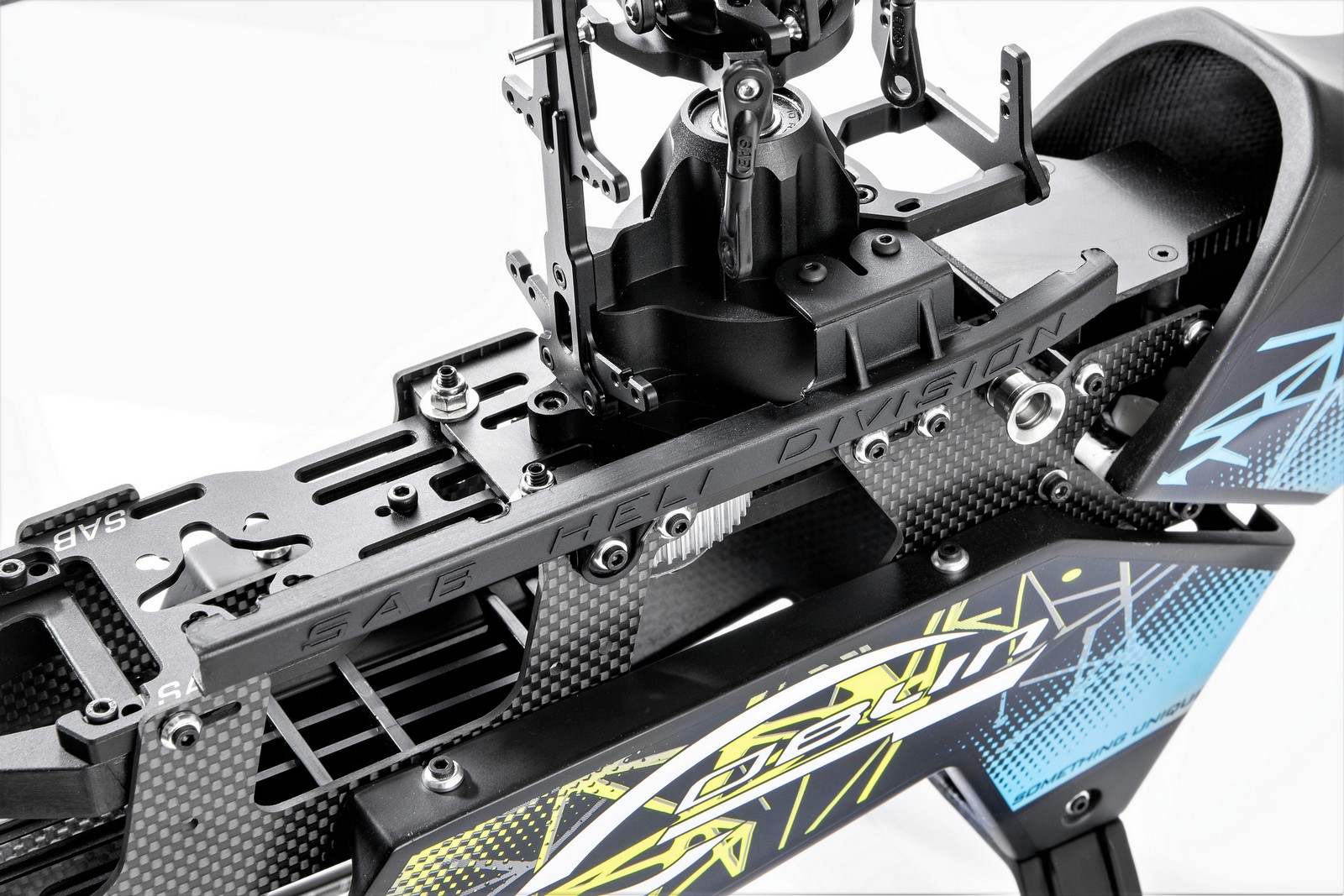

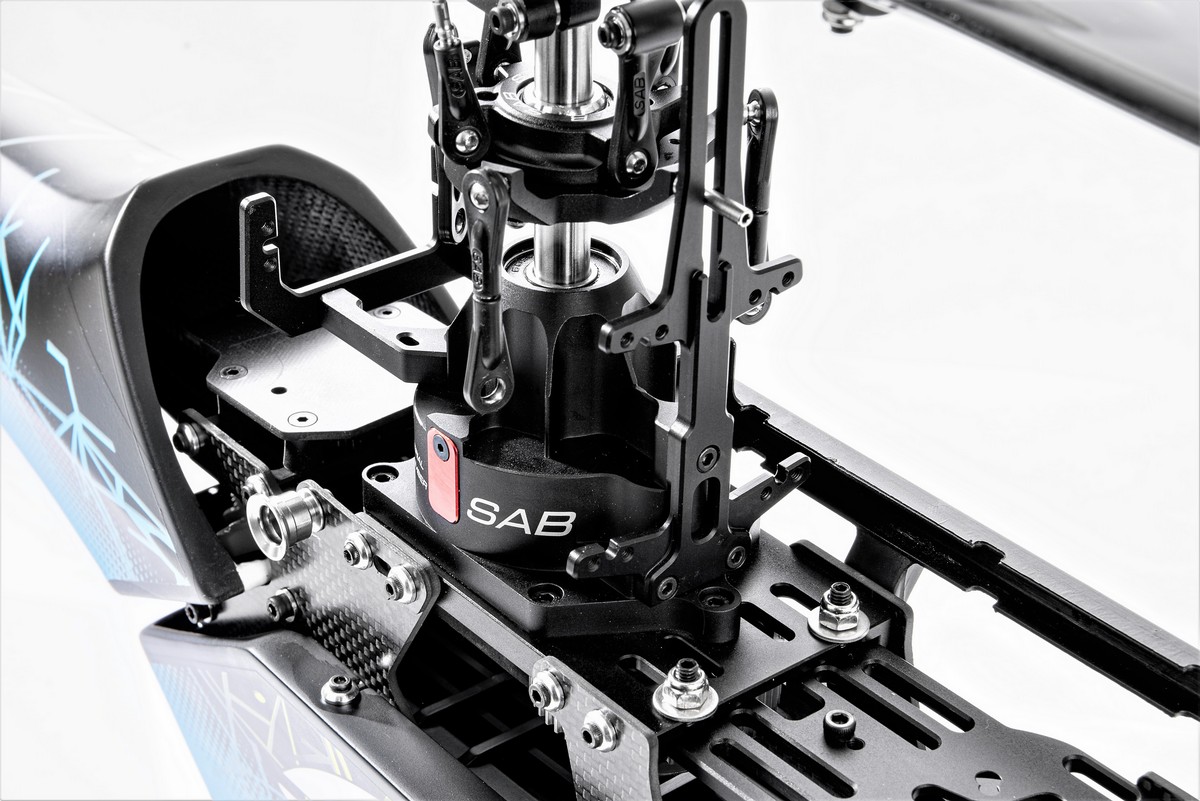

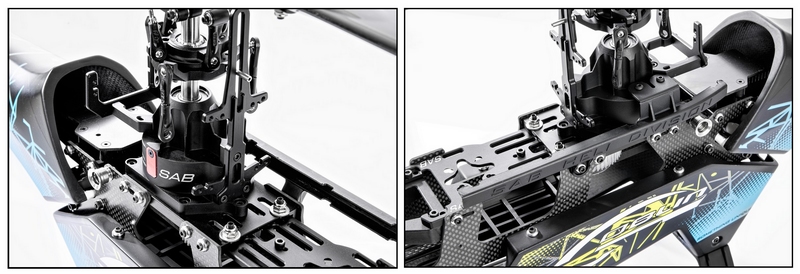

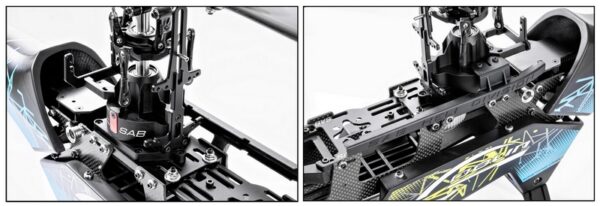

This is the SAB Goblin 580 Kraken Flybarless Electric Helicopter Kit is the second helicopter design featuring the latest «separated transmission style» that originally debuted on the Kraken 700 helicopter. Incredible bold styling, and legendary flight characteristics are packed into a smaller design – the Kraken 580!

Features at a Glance:

• Accepts 550-600mm Main Blades

• Accepts 95-105mm Tail Blades

• Utilizes Mini Cyclic Servos standard; full size servos possible with optional mounts

• Utilizes Standard size Tail Servo

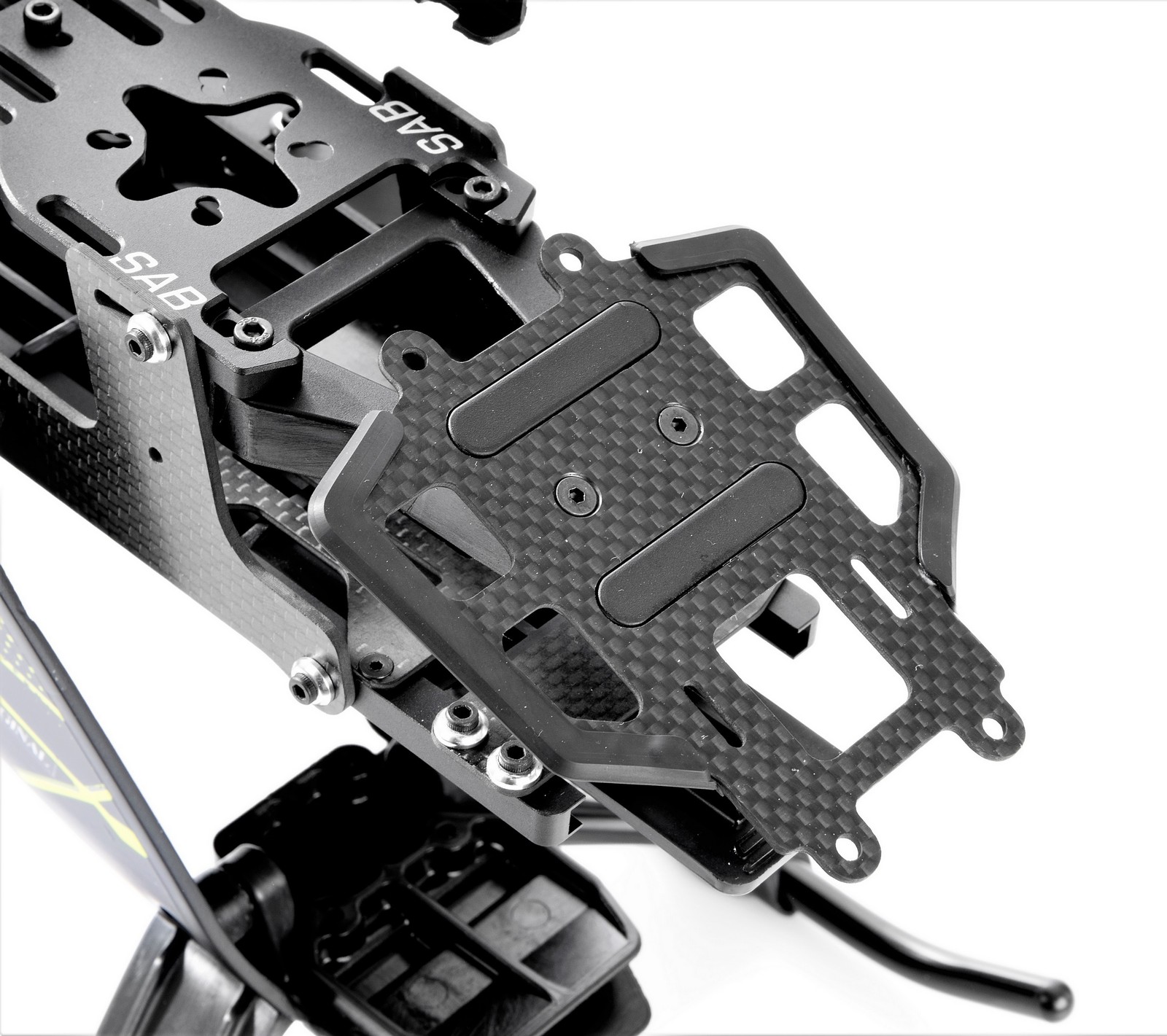

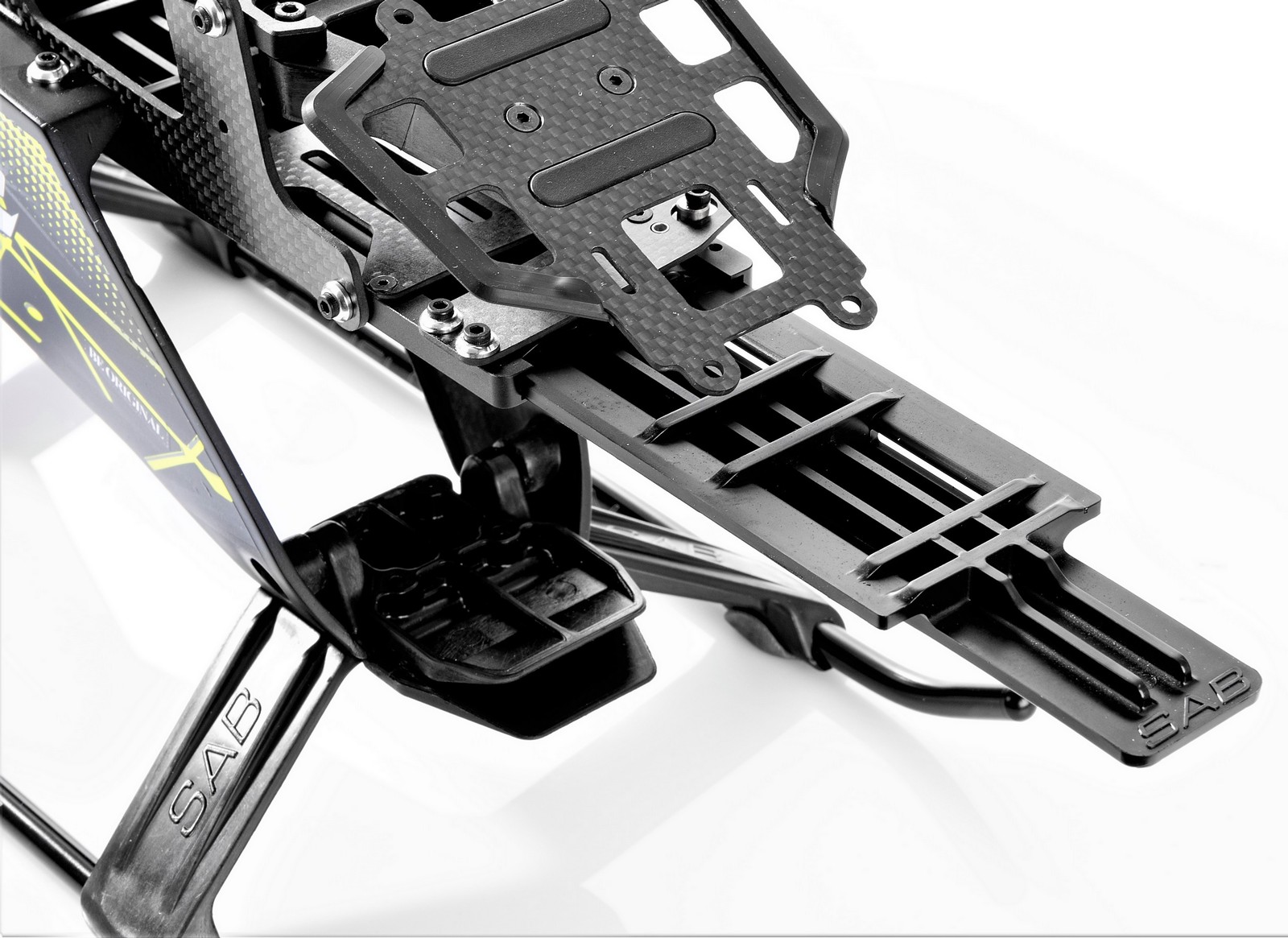

• Battery tray shared with Kraken 700

• Wide variety of motor gearing with common available pulleys

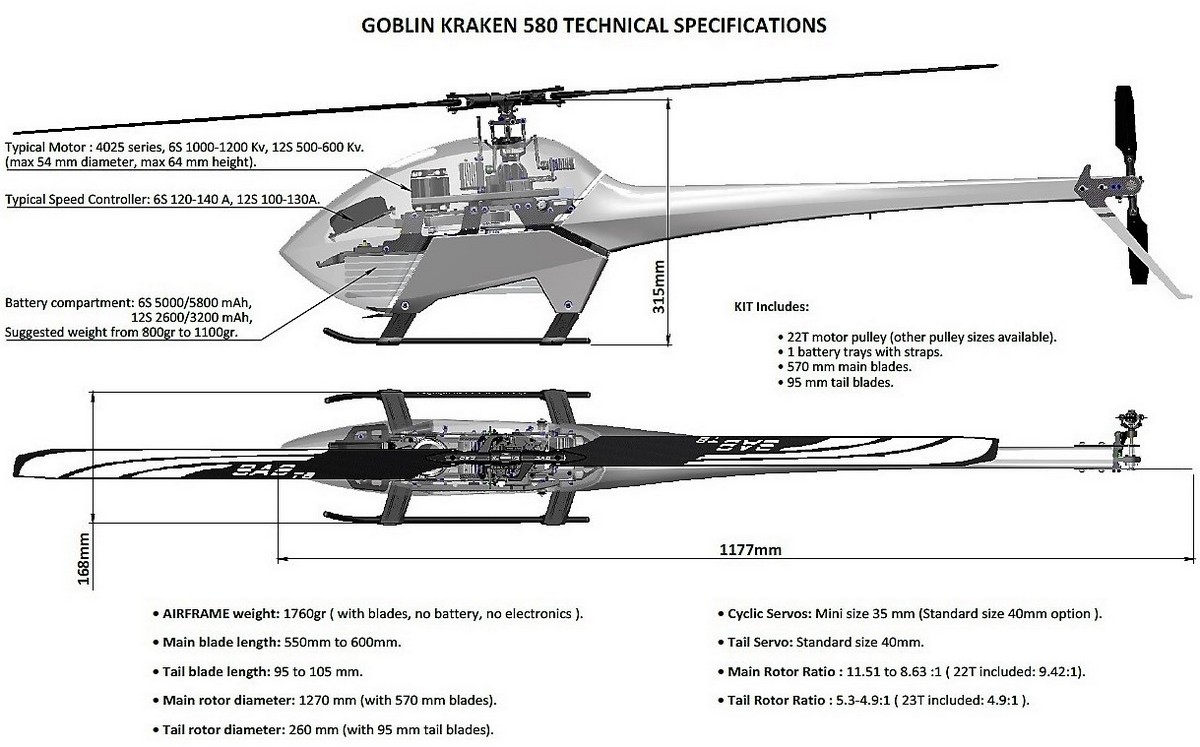

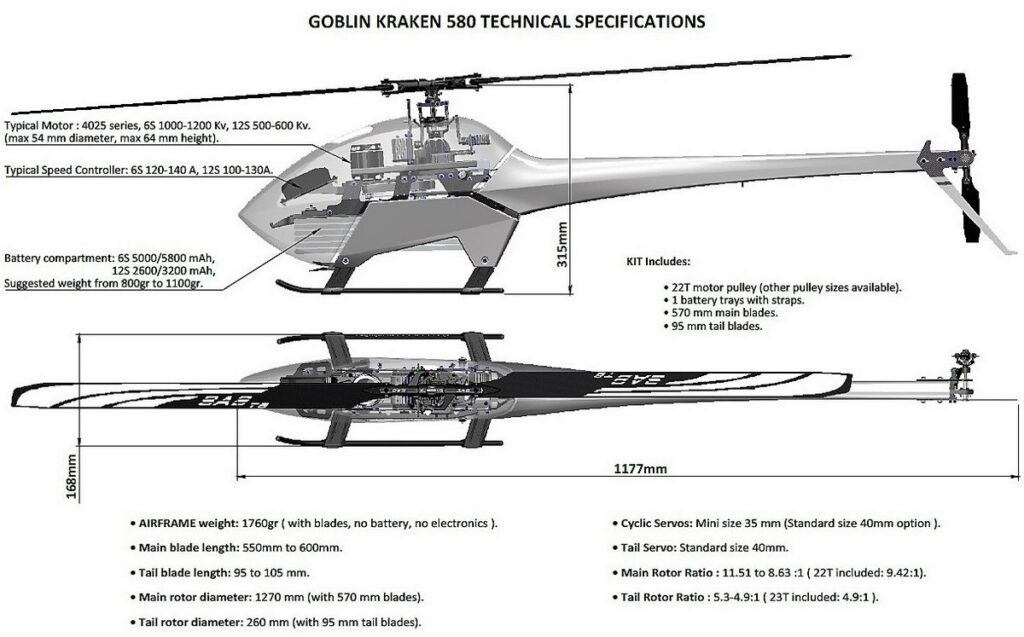

Specifications:
Main rotor diameter:  1270mm (w/Included 570mm Main Blades)
Main blade length: 550 to 600mm

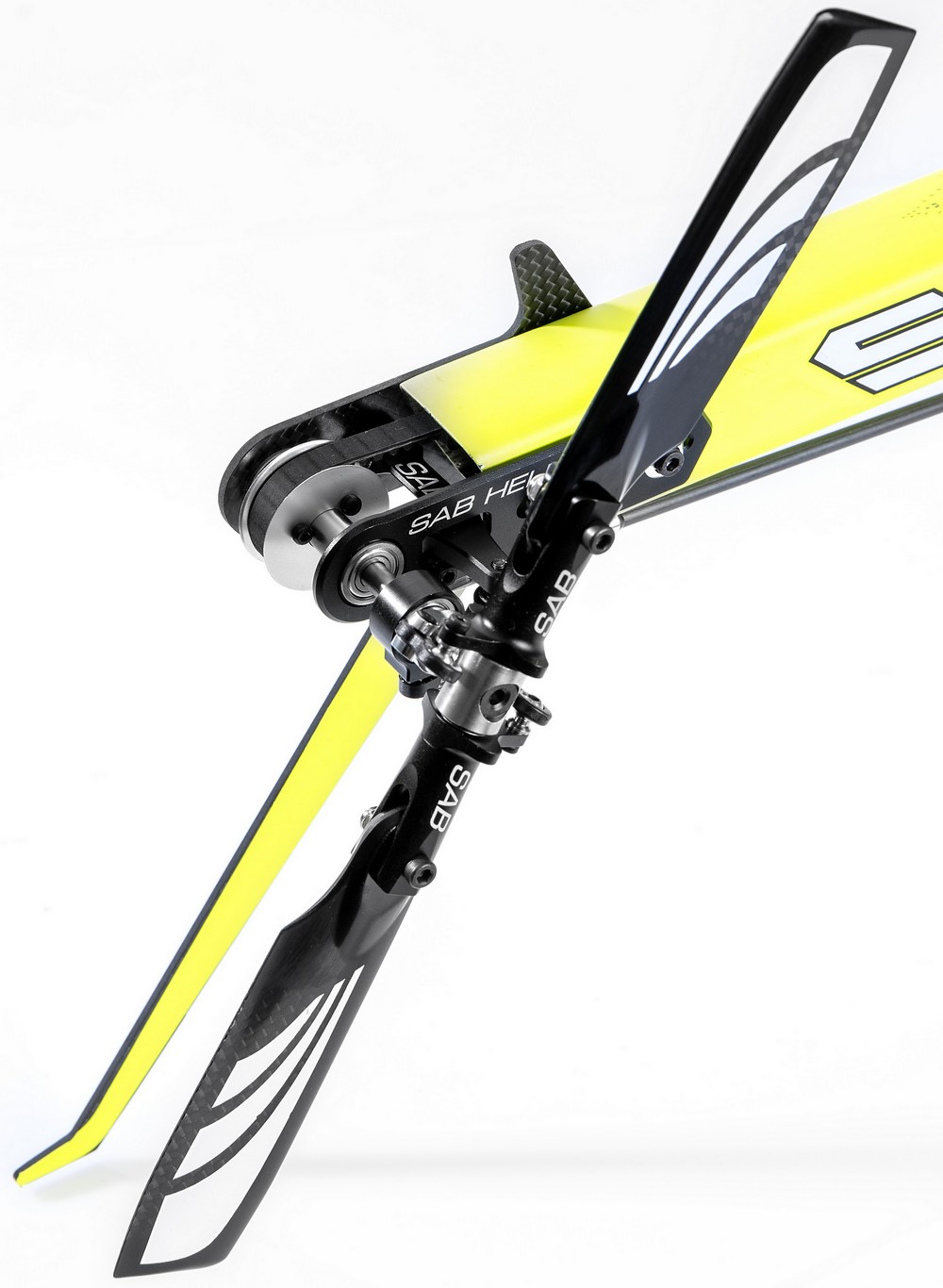

Tail rotor diameter: 260 mm  (w/Included 95mm Tail Blades)
Weight including electronics: 1760g (excluding batteries & electronics)

Includes:

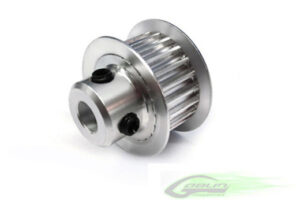

• 22T motor pulley (other pulley sizes available)

• 570mm main blades

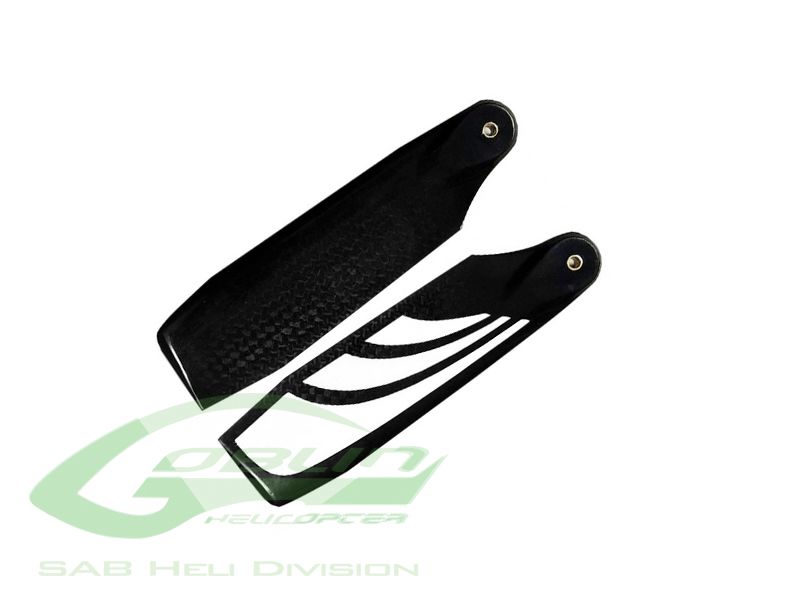

• 95mm tail blades

Needed To Complete:

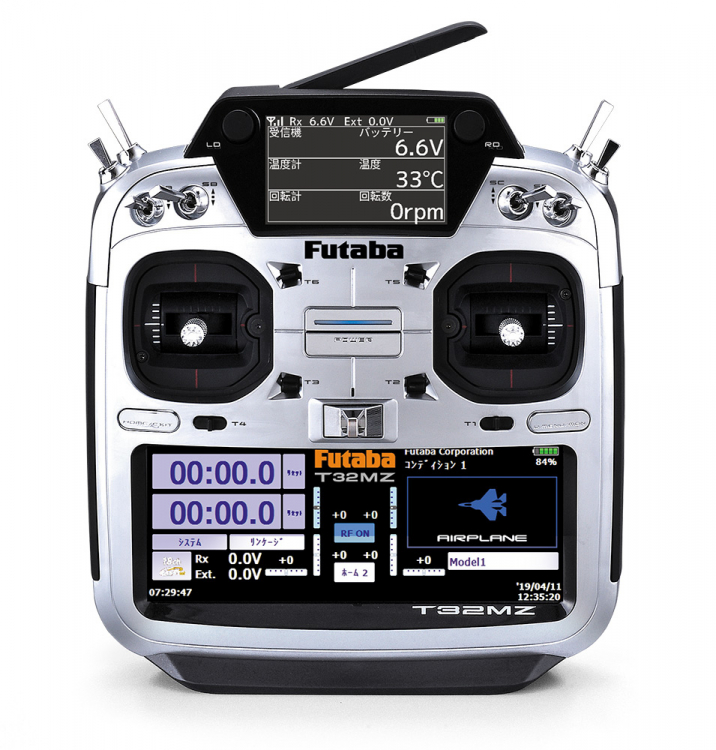

• (1) 2.4GHz Transmitter & Receiver (6-channel or more, helicopter system)

• (1) 4025 Size Electric motor: (26mm Motor Shaft Minimum, 6mm Diameter)

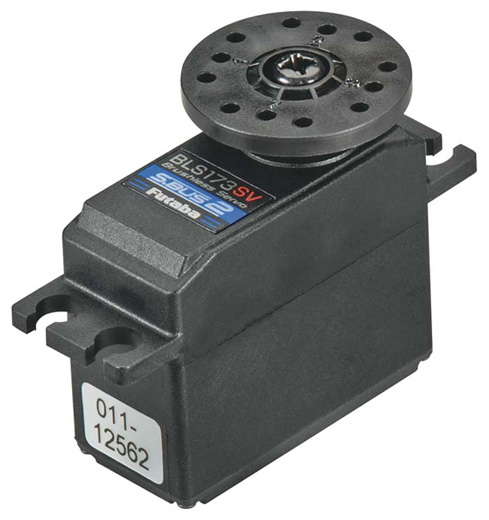

• (3) Mini Cyclic servos

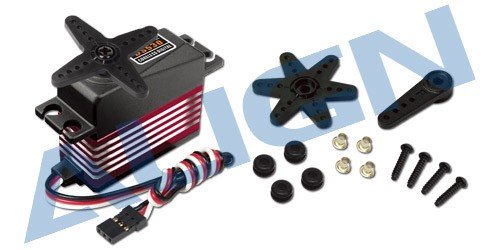

• (1) Standard Tail rotor servo

• (1) 3-Axis Flybarless System

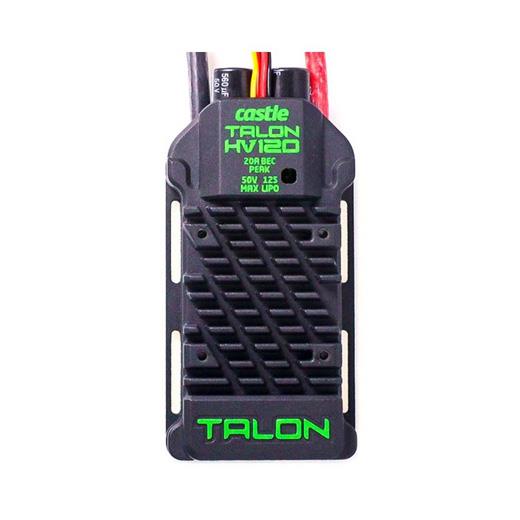

• (1) ESC – 6S: 120A+; 12S: 100A-130A

• (1+) Batteries:

• Compatible charger

• Pitch gauge

• Various tools, lubes & greases for setup and assembly
