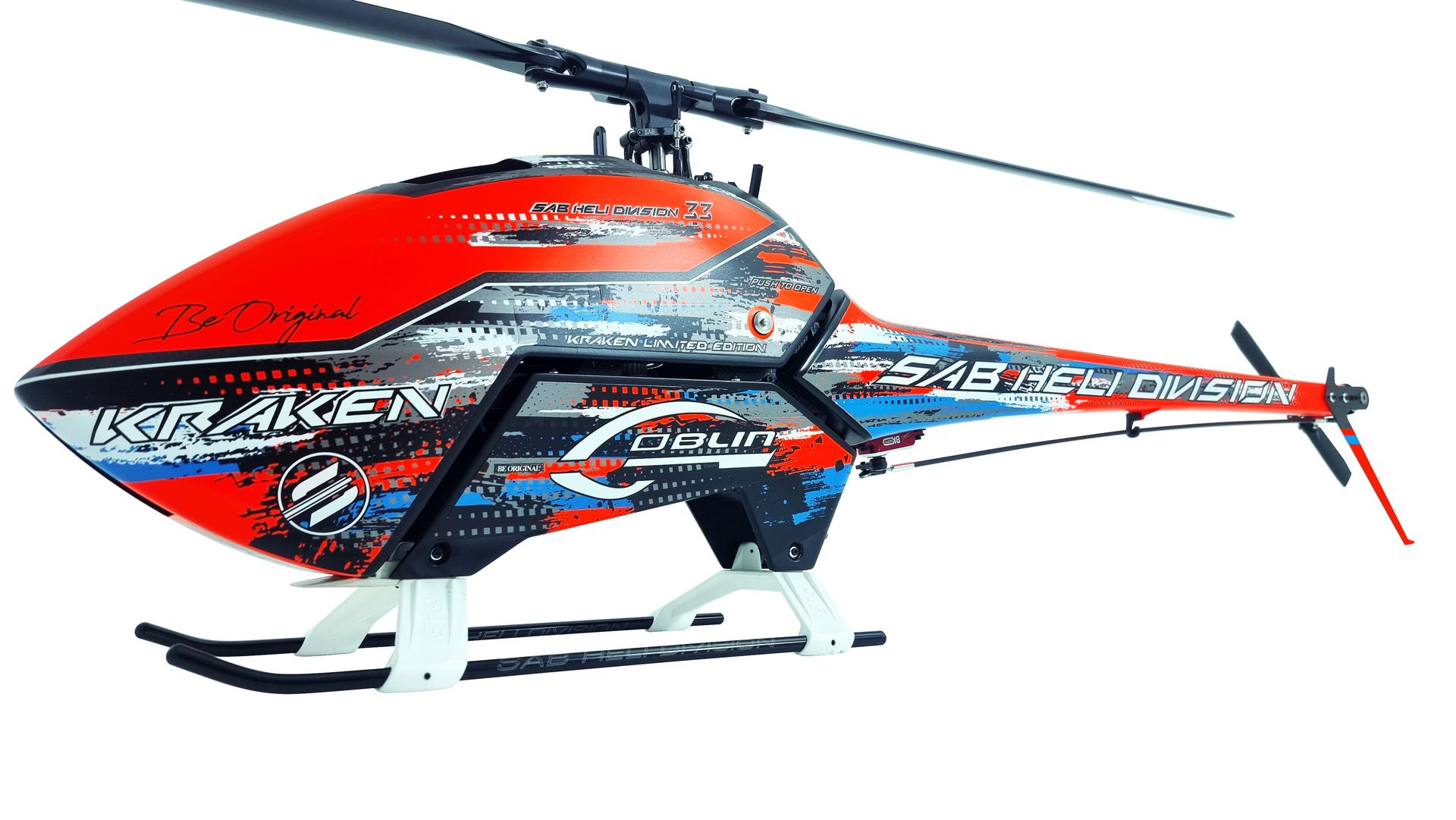

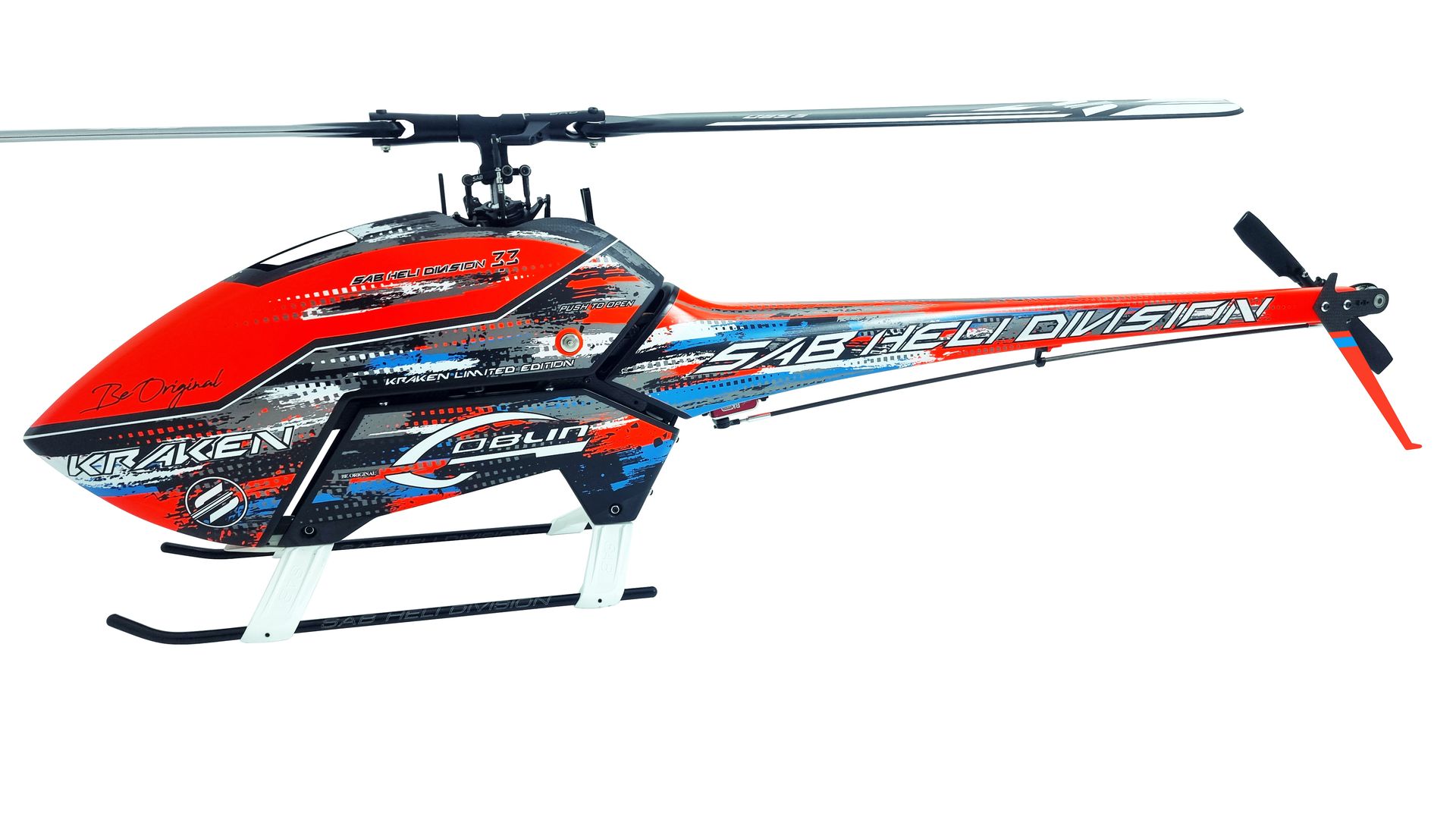

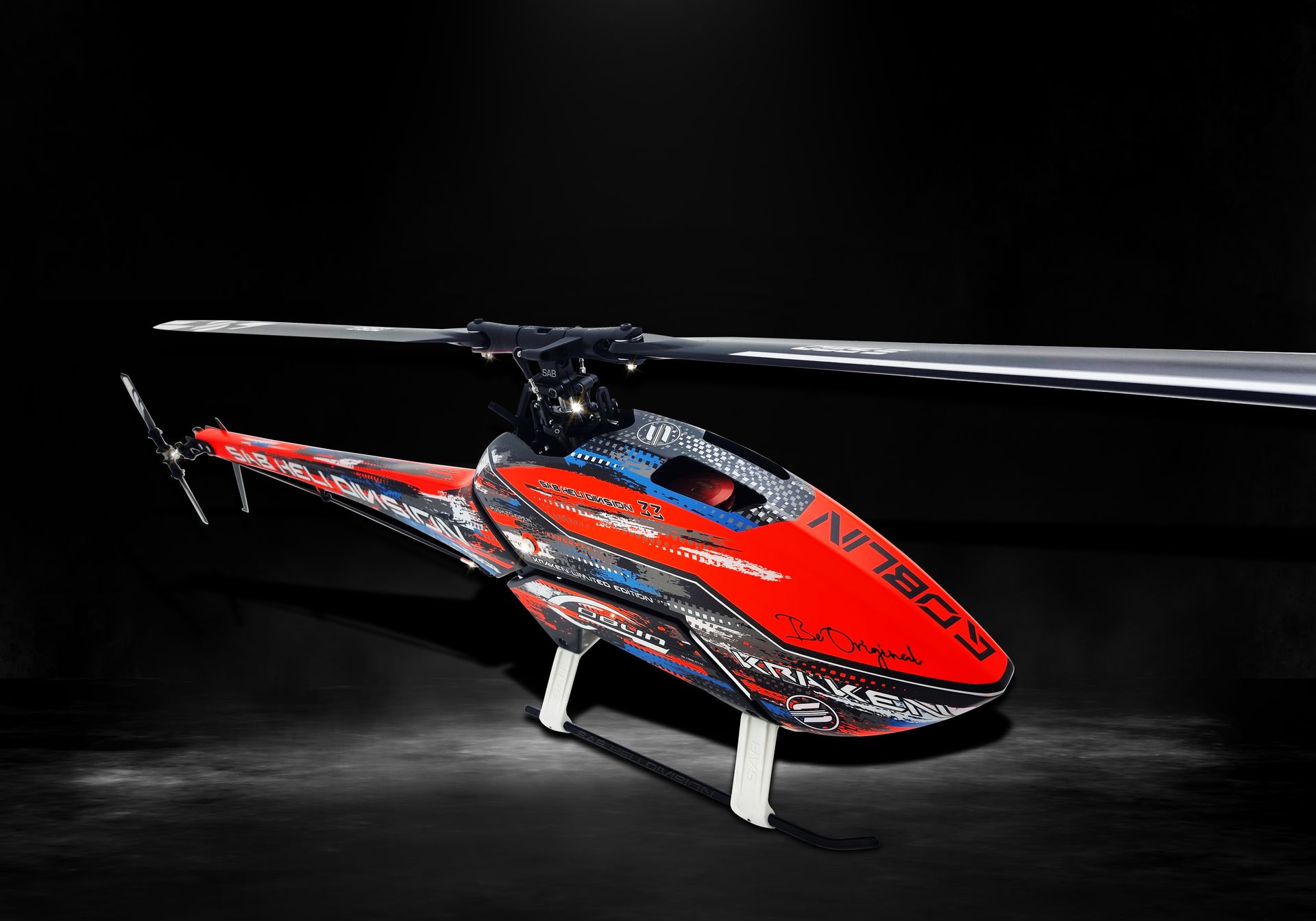

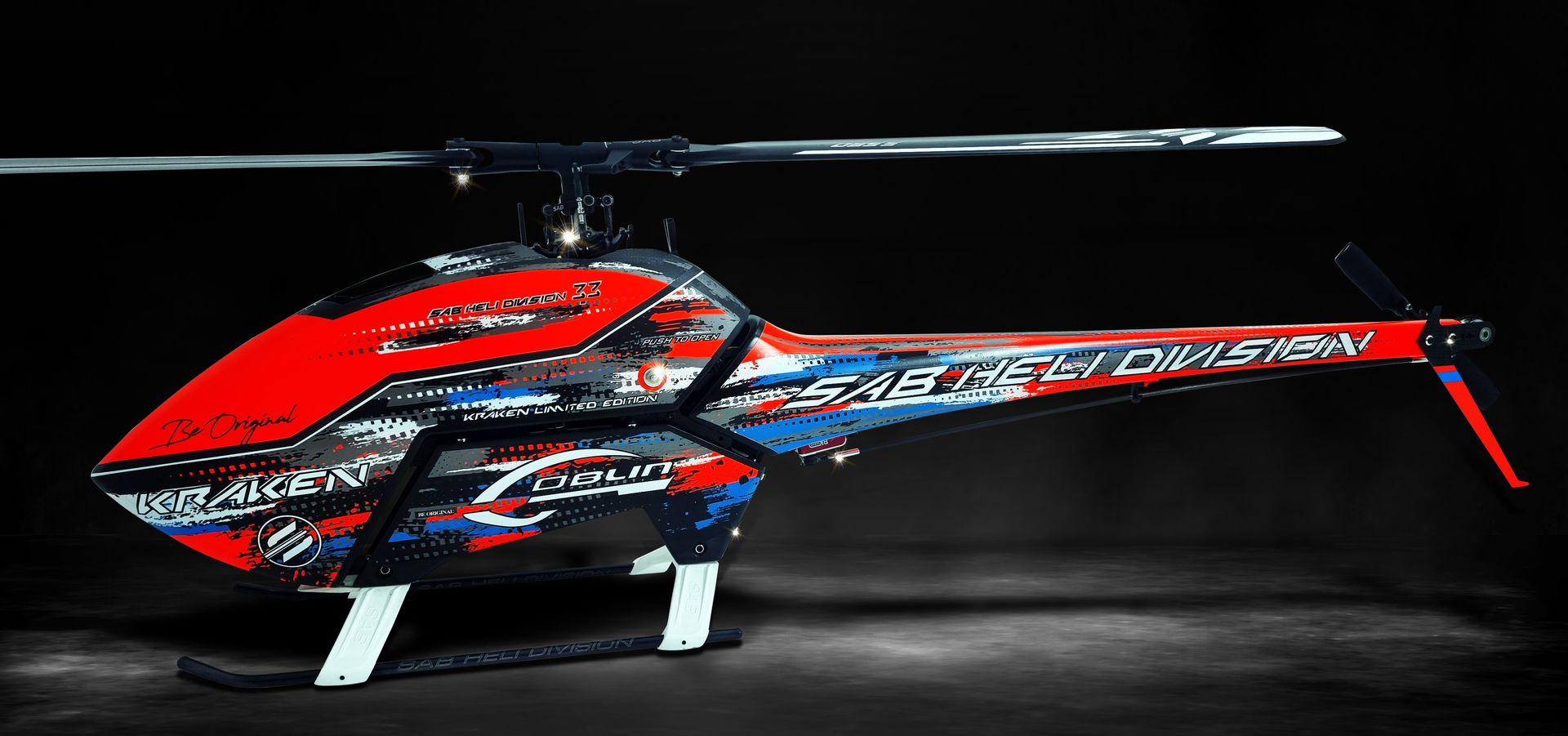

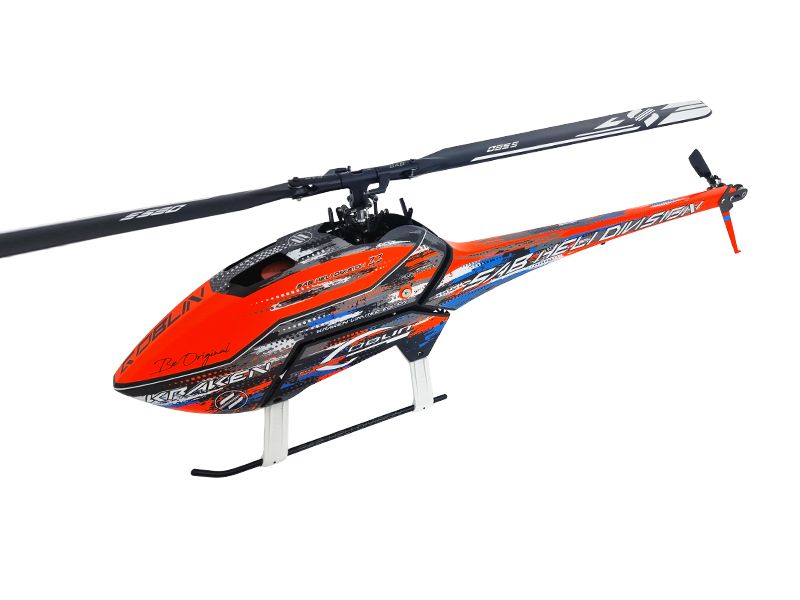

GOBLIN KRAKEN 580 ORANGE/BLUE KIT

The new Kraken 580 use the same concepts from the Kraken 700.

-Incredible strong Power train enclosed in aluminum case,

-Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,

-Body and boom design with integrated frames, to create a amazing fuselage style

-Boom detachment system for improved crash durability.

-Main blades up to 600mm.

TECHNICAL SPECITICATIONS

-AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )

-Main blade length: 550mm to 600mm

-Tail blade length: 95 to 105 mm

-Main rotor diameter: 1290 mm (with 580 mm blades included)

-Tail rotor diameter: 260 mm (with 95 mm tail blades included)

-Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.

-Tail Servo: standard size 40mm.

-Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)

-Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )

-Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)

-Typical speed controller: 6S 120-140 A, 12S 100-130A

-Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
