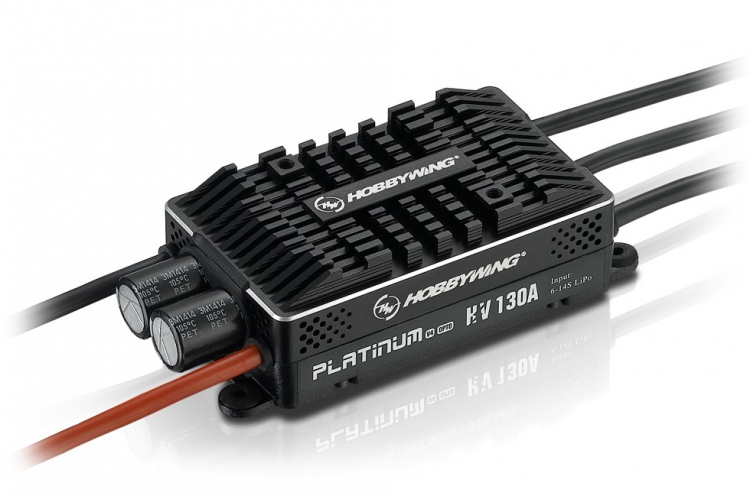

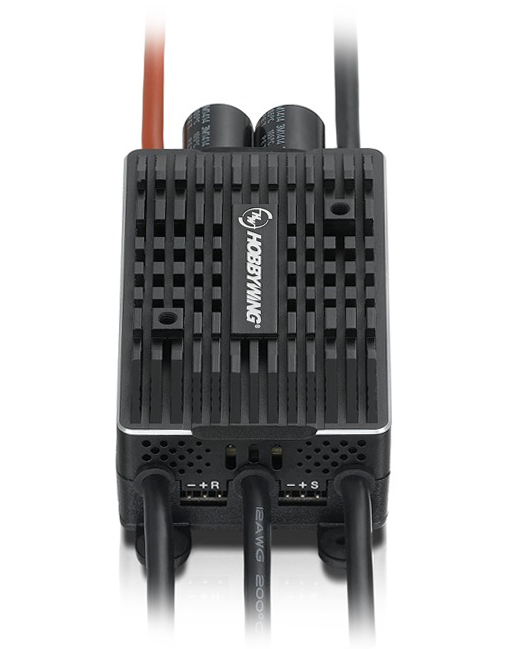

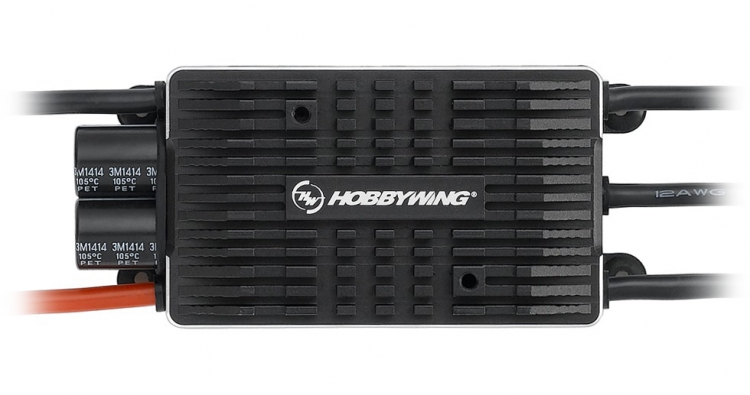

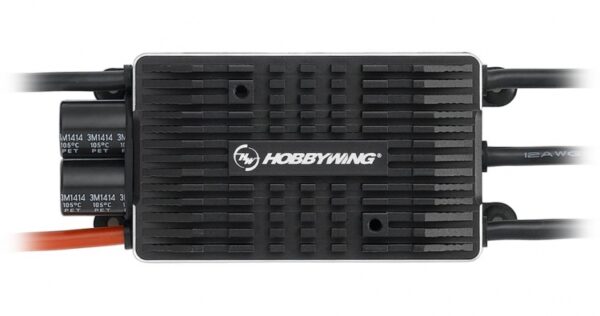

HOBBYWING PLATINUM PRO 130A OPTO HV 6-14S V4 ESC

Hobbywing Platinum HV 130A Opto V4 ESC

• High performance microprocessor for excellent motor speed-governing and super soft start-up

• Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control

• DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature

• Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor)

• New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller’s revs when the load changes dramatically

• Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight

• «Restart in auto rotation» can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations

• Independent output port for RPM (that is: motor speed) signals

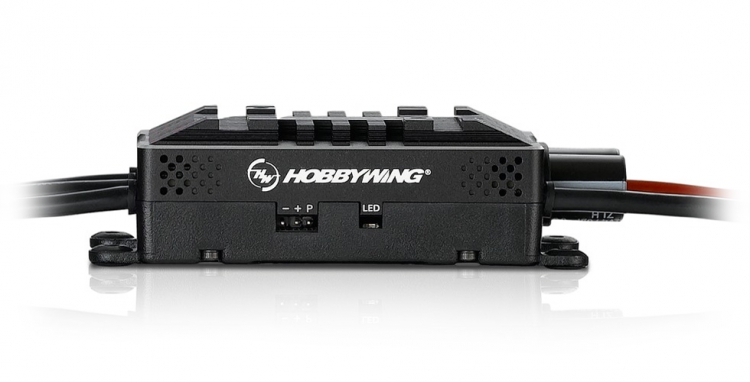

• Separate programming port for ESC programming or parameter setting

• WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (iOS or Android)

• Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported

• Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection

Type:

• Brushed/Brushless: Brushless

• High Voltage/Regular: High Voltage

Specifications:

• Continuos/Peak Current: 130A/160A

• Input Voltage: 6-14S LiPo

• BEC Output: No

Wires & Connectors:

• Input Wires: 12AWG/150mm

• Output Wires: 12AWG/100mm

• Input Connectors: No

• Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

• Transmitter: Not Supported

• LED Program Card: Not Supported

• LED Program Box: Not Supported

• LCD Program Box: Supported

• WiFi Module: Supported

• Program Port: Separate Program Port

• Firmware Upgrade: Supported

Size & Weight:

• Size: 101 x 45.5 x 27 mm

• Weight: 154 g

Rec. Applications:

• 550-600 Class Heli (Main Blade: 550-690 mm)

• .90-.140 Class Fixed-wing Airplane

• 2m FAIF3A & 3D

• EDF (with Diameter ≦105mm)
