HOBBYWING PLATINUM 260A OPTO HV 6-14S V5 ESC

Hobbywing Platinum 260A HV OPTO V5 6-14S ESC (No BEC)

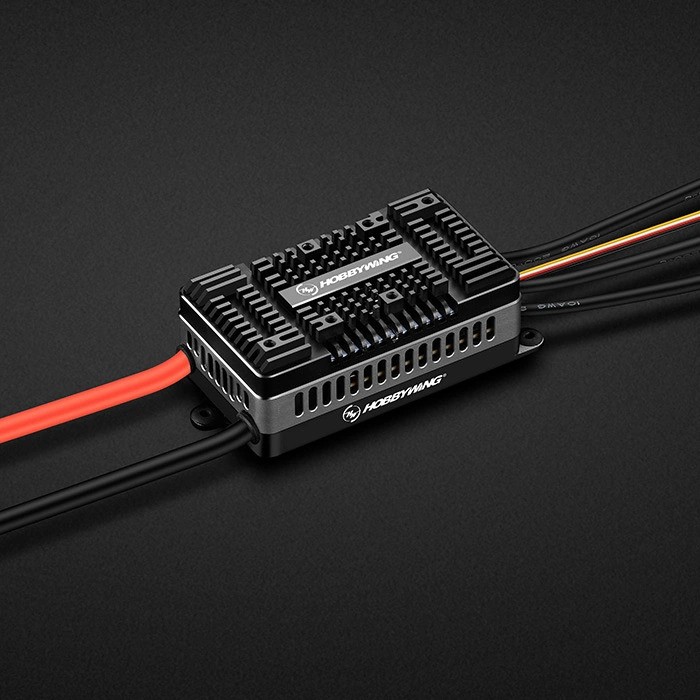

• New double-sided hollow design, significantly improved heat dissipation

• The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side «window» design.

• The air is able to quickly pass through the inside of the ESC and take away the heat generated by the internal circuit board.

• This innovative air duct design is able to generate airflow on the entire ESC from the cooling fan.

• Overall, significantly improving the capability of heat dissipation;

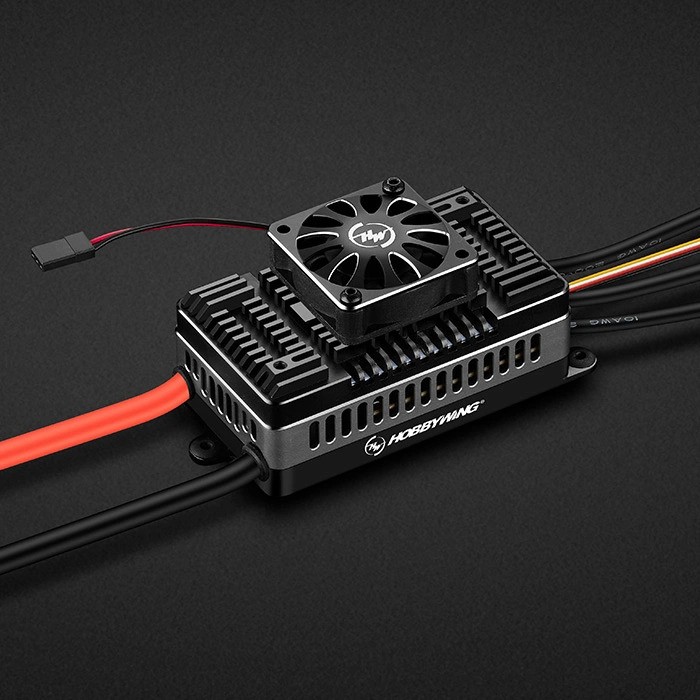

• The switchable no/single/double fan installation design allows users to switch between extreme weight and extreme heat dissipation.

Note: The double-sided hollow heat dissipation structure is patent pending.

Constant speed performance upgrade, ultimate flight experience
The 32-bit processor combined with the RPM accuracy algorithm further maximizes the RPM accuracy to enhance overall performance.

Compared with the previous ESC (Platinum 200A), the RPM accuracy algorithm makes the ESC more powerful and more consistent. The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits them personally！

Support multiples backhaul protocols, strong adaptability.
Futaba S.BUS2, Mikado VBar System, MSH Brain, IKON and other devices data return protocols. User are able to adjust parameters on the remote-control device (VBar protocol support) or check the working status of the ESC at any time.

Synchronous rectification technology, multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology (DEO-Driving Efficiency Optimization, Active Freewheeling). Which gives you multiple advantages:

• Faster Throttle response – enhanced flight stability and flexibility

• Higher driving efficiency and longer battery life-span

• Lower ESC temperature rise – more reliable

Built-in anti-spark circuitry
The built-in anti-spark circuitry effectively eliminates the electric spark generated during the connectors are plugged to a battery, and prolongs the life-span of the connectors

Multiple protections, double security
It has multiple protection functions, to effectively prolonging the lifespan of the ESC.

• Start-up protection

• Current protection

• Temperature protection

• Overload protection

• Throttle signal loss protection

• Capacitor temperature protection

• Input voltage abnormality protection

Specs:

• Type: Brushless, High Voltage Helicopter/Airplane ESC (no BEC)

• Cont./Peak Current: 260A / 400A

• Input Voltage: 6-14S LiPo

• BEC Output: No

• Input Wires: 8AWG silicone wires

• Output Wires: 10AWG silicone wires

• Input Connectors: No

• Output Connectors: No

• Firmware Upgrade: Supported

• Telemetry Function: Mikado VBar, Futaba S.BUS2, MSH Brain & iKon

• Size: 89 x 50 x 34mm

• Weight: 287g

• Applications: 700-800 class electric helicopter (main rotor length 690-880mm) or fixed-wing aircrafts

ESC Programing via:

• Transmitter: Not Supported

• LED Program Card: Not Supported

• LED Program Box: Not Supported

• LCD Program Box: Supported

• OTA Programmer: Supported

• Program Port: Separate Program Port
