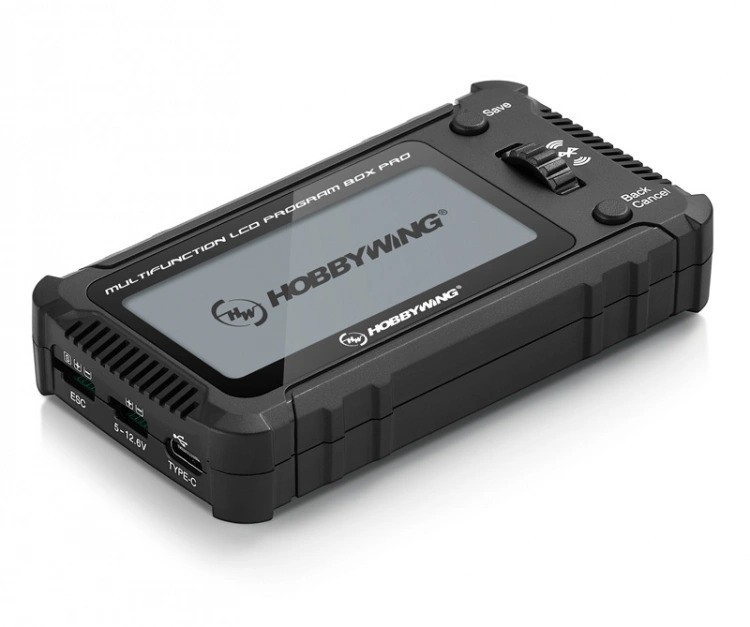

HOBBYWING LCD PROGRAM BOX PRO

Hobbywing HW30502002 – Multifunction LCD Program Box Pro

Features:

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.

• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.

• Detect the overall voltage of the lithium battery and the individual voltage of each cell.

• The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

Large Screen is easier to read.

• Equipped with a 2.8-inchdisplay.

• Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.

Supports multiple languages

• It makes setting ESC parameters a breeze.

• Supports 3 languages: Chinese, English & Japanese

• Note: There are plans to expand even more languages support in the future.

Support brightness adjustment

• Meet the needs of viewing in various brightness environments.

• Supports 20 levels of adjustable brightness.

Roller helps to improve quality of life

• Simplified operation and control using the single roller interface.

• Navigating a speed controls settings is easier then ever.

Import and Export ESC profiles
Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC. This makes profile sharing simple and easy.

OTA parameter adjustment and firmware update

• The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box.

• The HW Link V2 app can be used to adjust the ESC and update the Firmware.

• Supports updates to the firmware of the LCD Program box itself as well

Built-in Sound
Built in audio to make settings save confirmations easy. The sound can of course be turned off as well.

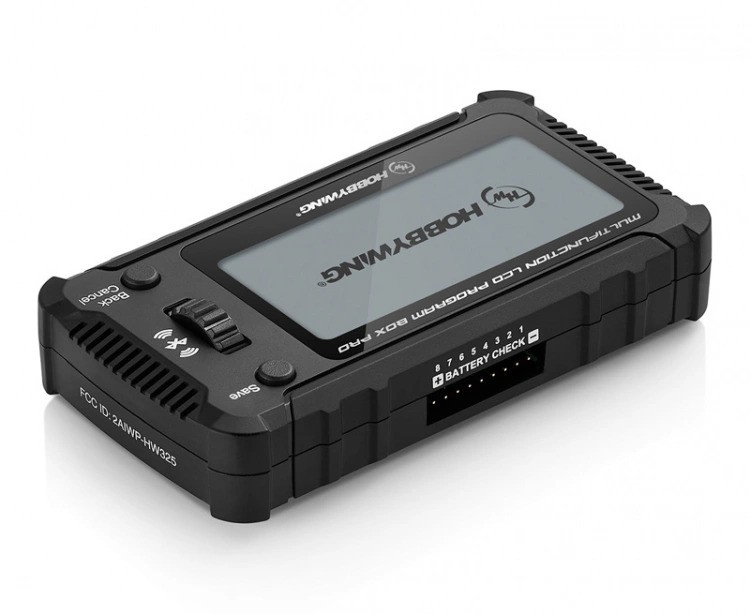

Battery Voltage Tester is built in.
Supports 1-8S battery voltage detection, Easy to view battery cell voltage information.

Suitable for:

• XERUN series car model brushless ESC (V2.0 and above)

• EZRUN series car model brushless ESC (V2.0 and above)

• PLATINUM series air model brushless ESC

• SEAKING Pro series ship model brushless ESC

• Some ESCs of QUICRUN series

Remarks:

1. The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

2. Whether the programmable box is supported depends on the specific ESC model. If necessary, you can check the ESC information introduction on the official website or consult the Hobbywing official. Hobbywing official website: https://www.hobbywing.com

Specs:

• Multifunction LCD Program Box Pro

• Size: L105.6xW59xH24.4mm (Including wheel)

• Weight: 85g

• Input voltage: DC 5V~12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

• Interface: TYPE-C USB， ESC interface (Futaba plug), Power supply interface（Futaba plug.

• Display Screen: LCD
