  • GOBLIN RAW NITRO WHITE/ORANGE KIT W/BLADES

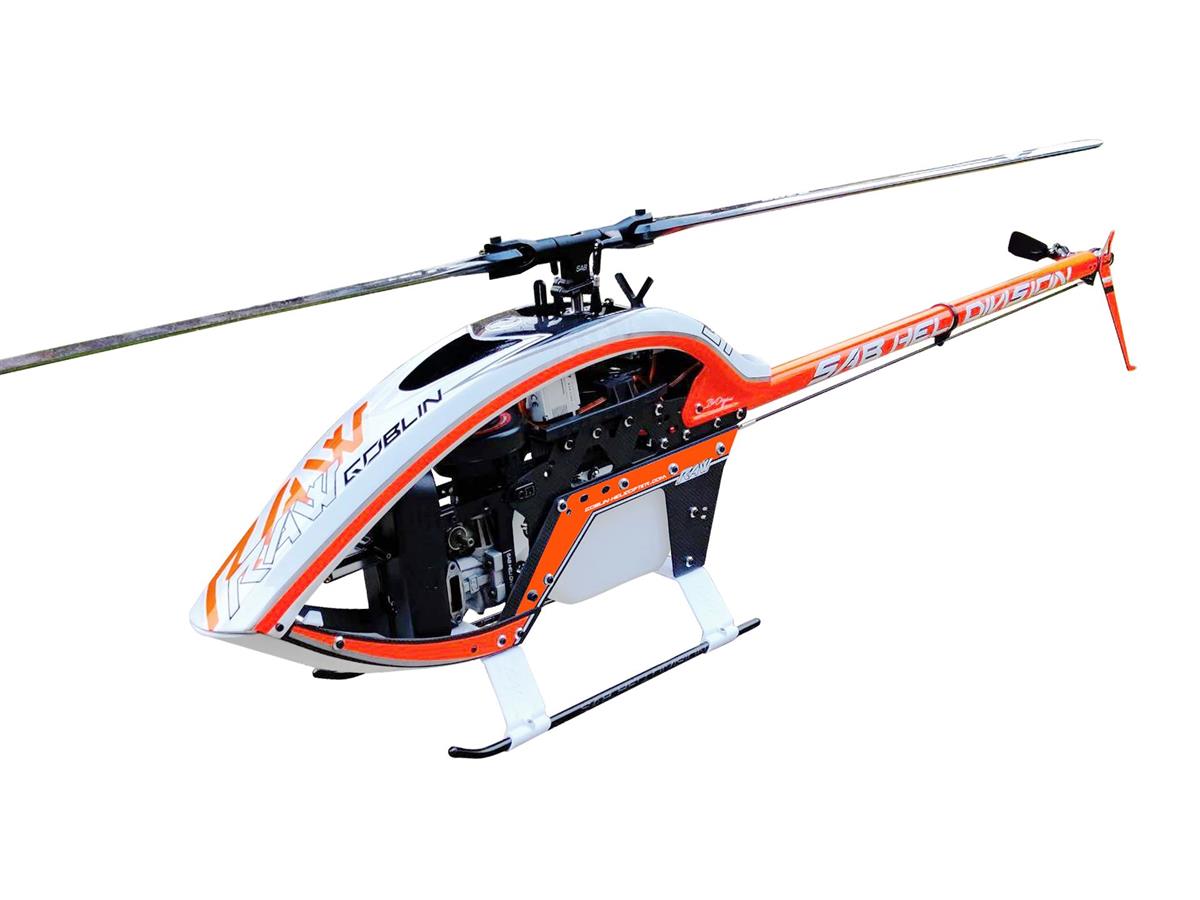

GOBLIN RAW NITRO WHITE/ORANGE KIT W/BLADES - Bilde 1

GOBLIN RAW NITRO WHITE/ORANGE KIT W/BLADES

Varenr. SG737
Kategori:
kr 12585 ,-
1 igjen på lager
Eller

 RTF Approx. Weight: 4040 g (RTF no fuel).

• Main blade length: 650mm to 720mm ( 690mm included ).

• Tail blade length: 105 to 115 mm ( 105mm included ).

• Main rotor diameter: 1578 mm (with 700 mm blades).

• Tail rotor diameter: 284 mm (with 105 mm tail blades).

• Engine: .90 to .105 Nitro Heli Engine.

• Cyclic Servos: Standard size 40mm.

• Tail Servo: Standard size 40mm.

• Throttle Servo: Mini size 35 mm or Standard size 40mm.

• Main Rotor Ratio: 7.7- 8.3 :1 (27T included: 8:1).

• Tail Rotor Ratio : 5.1 – 4.9:1 ( 22T included: 5.1:1 ).

• Tank Capacity: 650ml.

• RX Battery Size: 2S-1800 / 2500 mAh.



Helicopter Main Data


Configuration 700
Available P/N SG737
Main rotor diameter 1578mm
Main blade length 700mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 4040gr without fuel

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller
Maximum motor size
Motor KV
Battery compartment
Battery capacity 2S 1800-2500mAh
Available ratios From 7.7 to 8.3

Attributter Verdi
Produsent

Goblin Helicopters
Modelltype

3D og Acro Modeller
