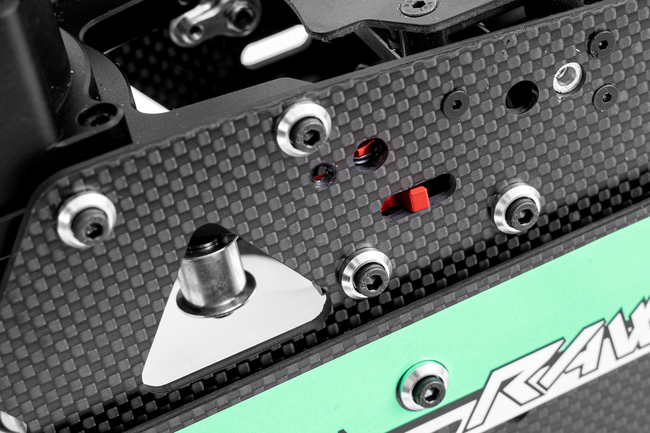

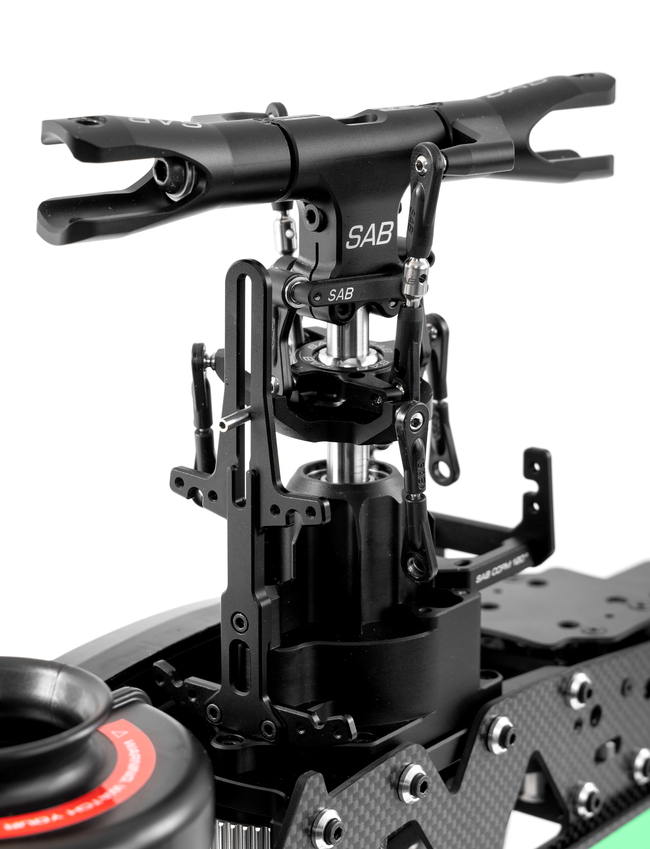

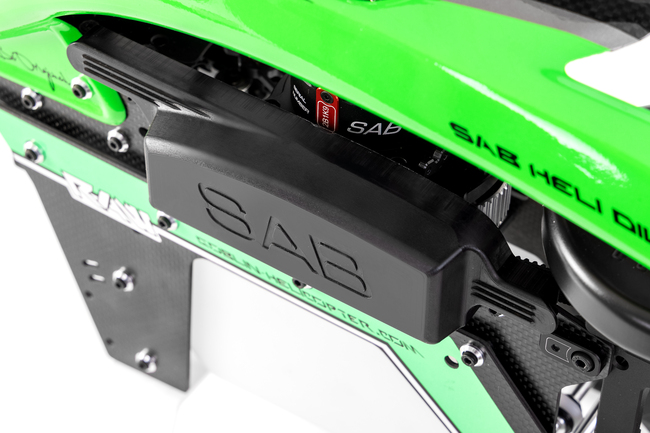

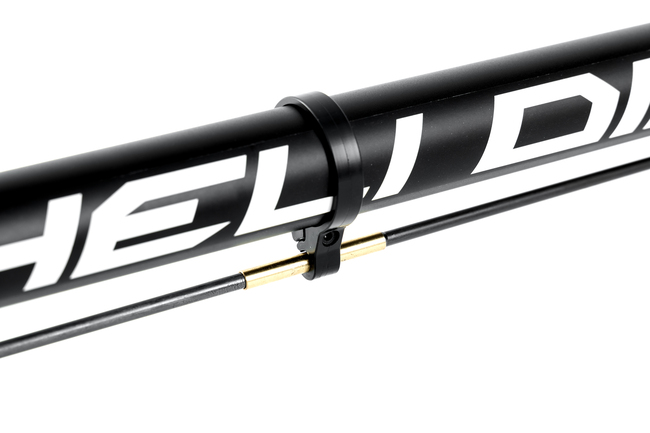

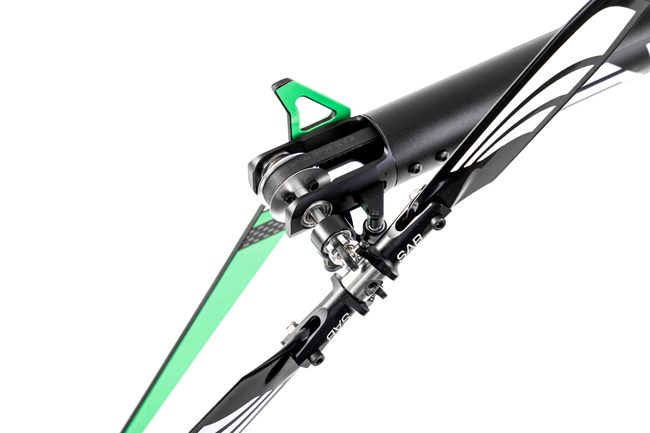

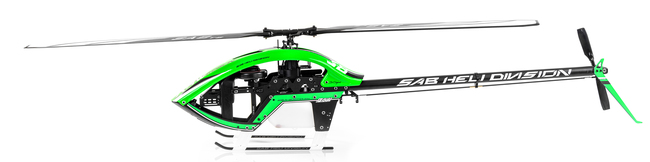

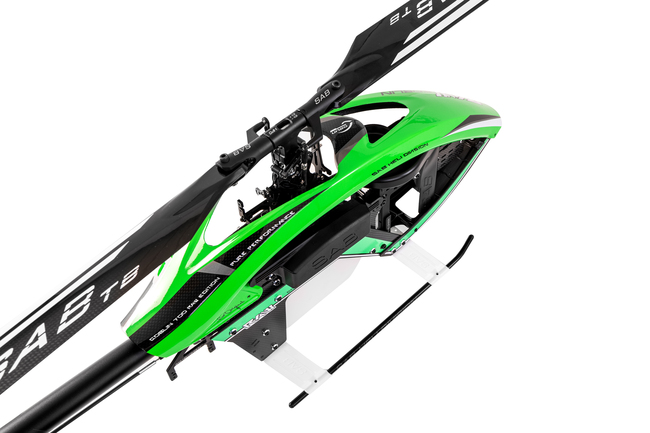

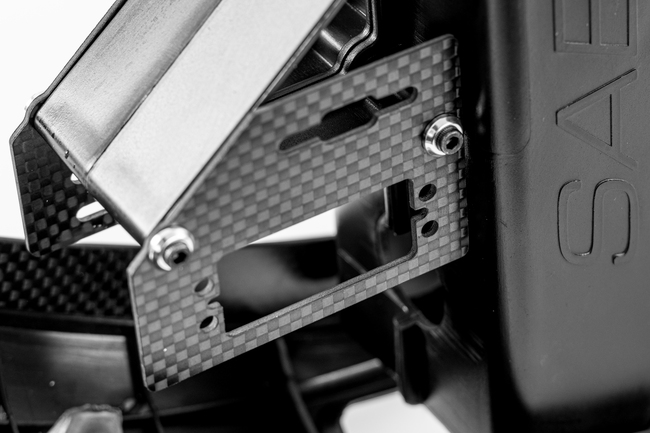

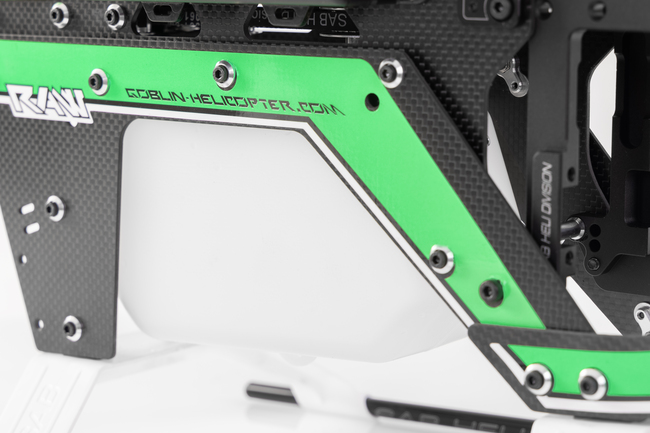

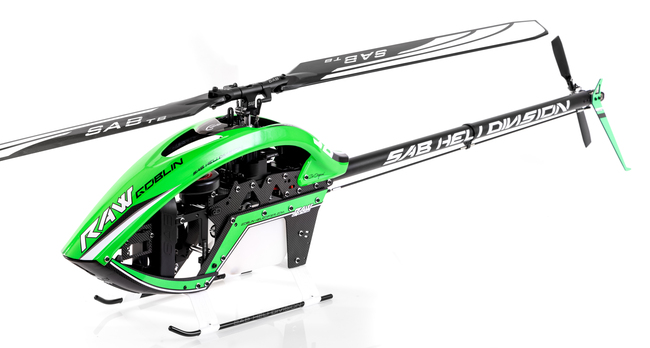

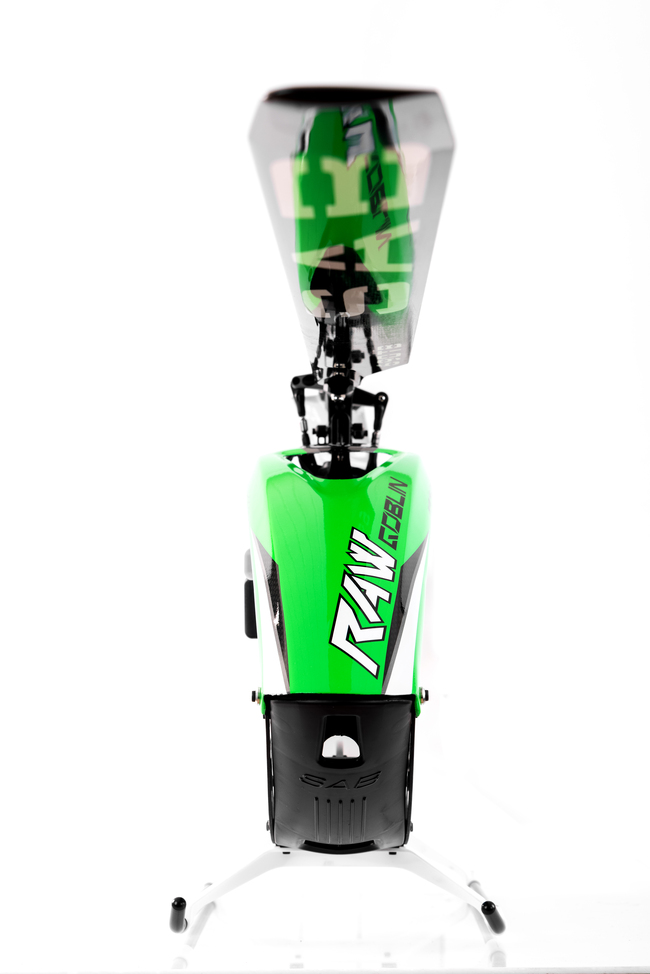

GOBLIN RAW NITRO GREEN KIT W/BLADES

RAW NITRO TECHNICAL SPECIFICATIONS

• RTF Approx. Weight: 4000 g (RTF no fuel).

• Main blade length: 650mm to 730mm ( 690mm included ).

• Tail blade length: 105 to 115 mm ( 105mm included ).

• Main rotor diameter: 1558 mm (with 690 mm blades).

• Tail rotor diameter: 284 mm (with 105 mm tail blades).

• Engine: .90 to .105 Nitro Heli Engine.

• Cyclic Servos: Standard size 40mm.

• Tail Servo: Standard size 40mm.

• Throttle Servo: Mini size 35 mm or Standard size 40mm.

• Main Rotor Ratio: 7.7- 8.3 :1 (27T included: 8:1).

• Tail Rotor Ratio : 5.1 – 4.9:1 ( 22T included: 5.1:1 ).

• Tank Capacity: 650ml.

• RX Battery Size: 2S-1800 / 2500 mAh.
