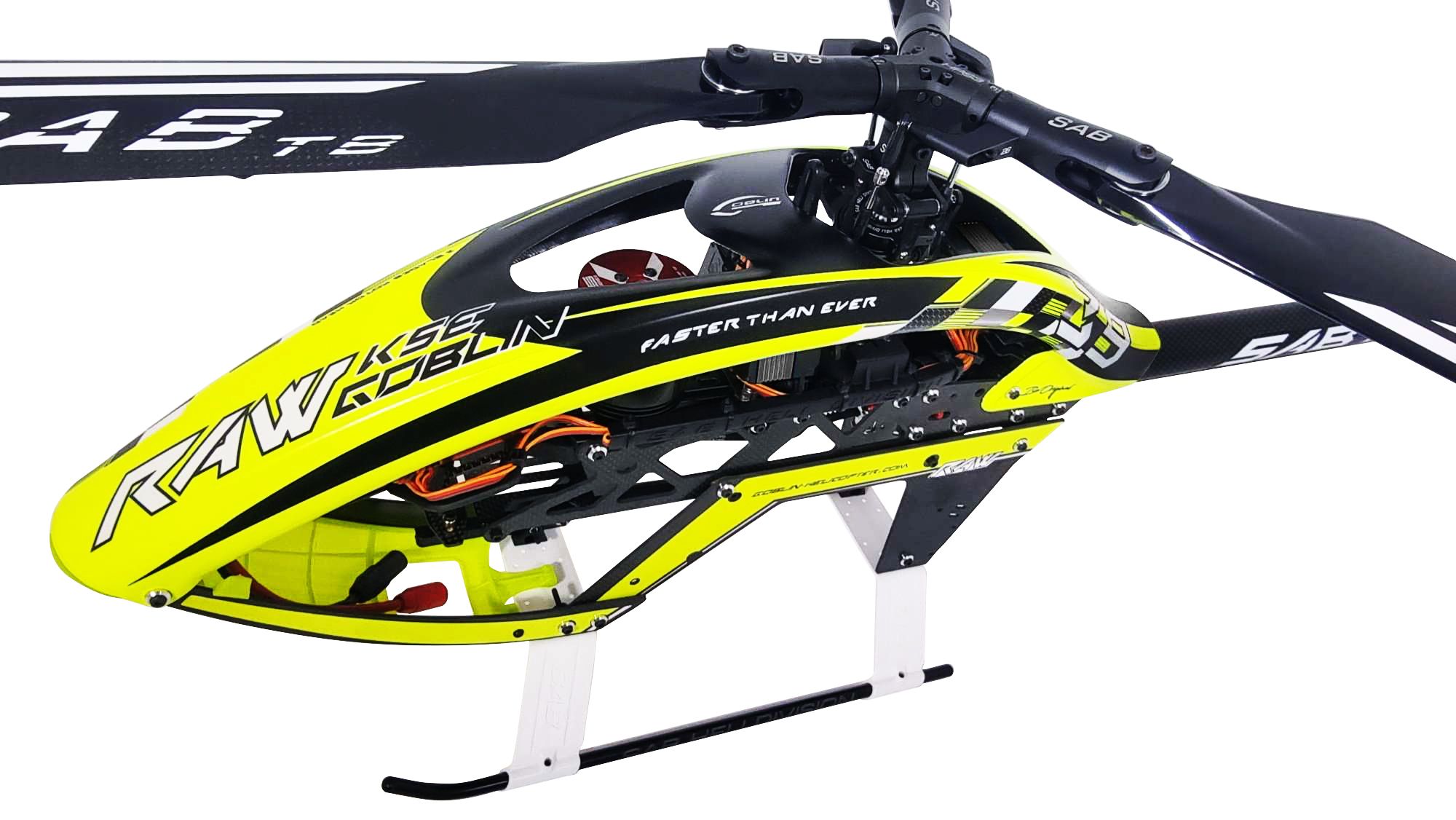

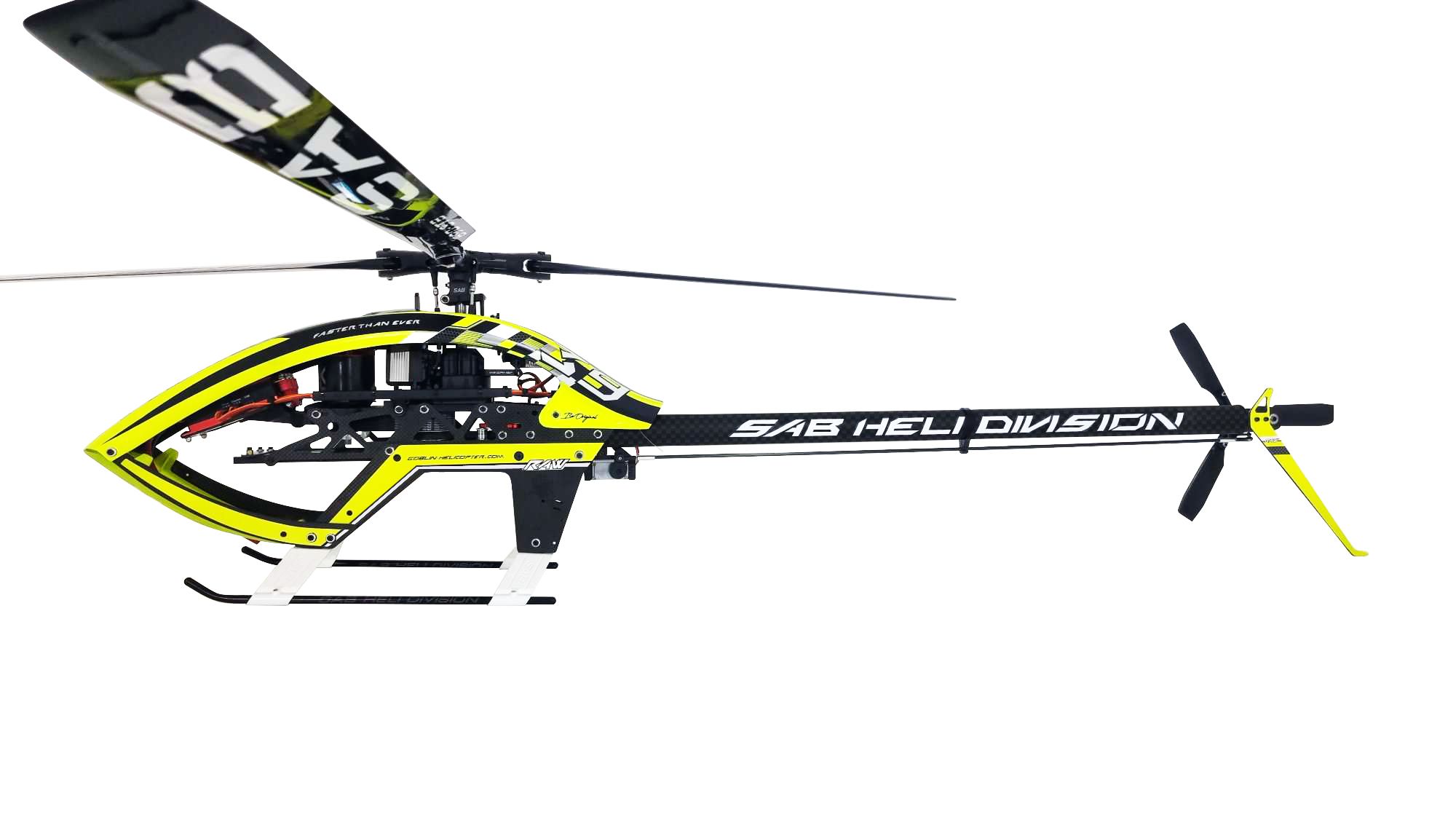

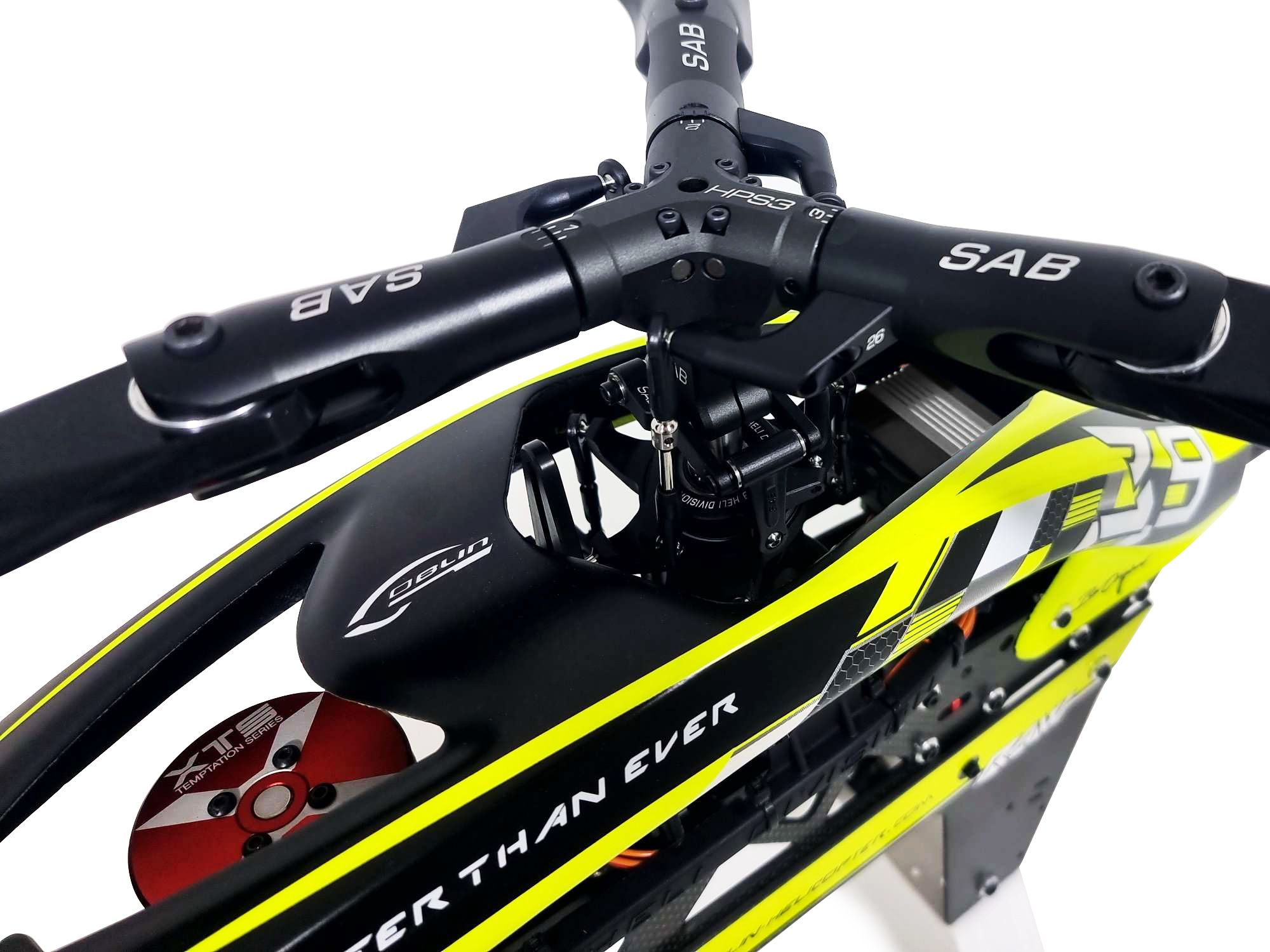

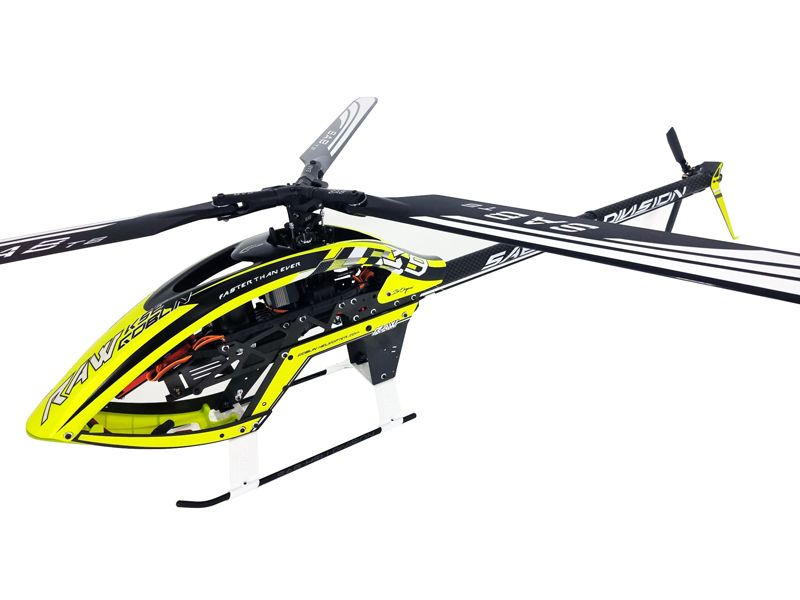

GOBLIN RAW 700 KSE YELLOW

The 3-Bladed model offers always incredible performances. For this reason the RAW KSE was born (KSE >> Kyle Stacy edition)

This is full upgraded RAW, with a super aggressive graphic, light landing gear and carbon tail boom…

Just for pilots who want the best!

TECHNICAL SPECIFICATIONS

• AIRFRAME weight: 2920gr (with blades, no battery, no electronics)

• Main blade length: 690mm

• Tail blade length: 105

• Main rotor diameter: 1582 mm (with 690 mm blades included)

• Tail rotor diameter: 285 mm (with 105 mm tail blades included)

• Cyclic Servos: standard size 40mm

• Tail Servo: standard size 40mm.

• Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

• Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

• Typical motor: 4525 series (not included)

• Typical speed controller: 12S, 160-200 A (not included)

• Battery size: 12S 4500-5500 mAh. (not includet)
