LAND ROVER DEFENDER SCALE & TRAIL 4WD BLÅ – TRAXXAS

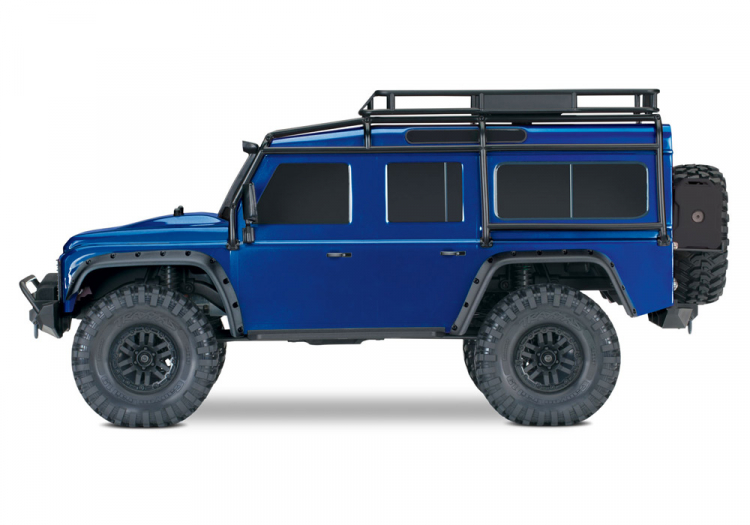

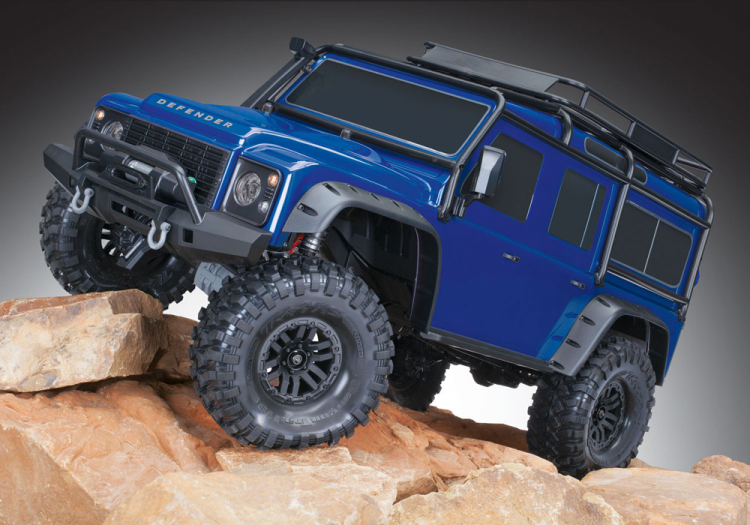

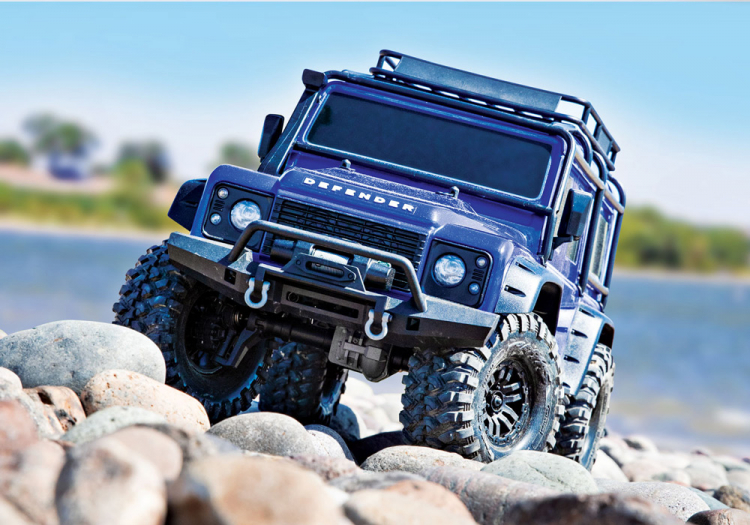

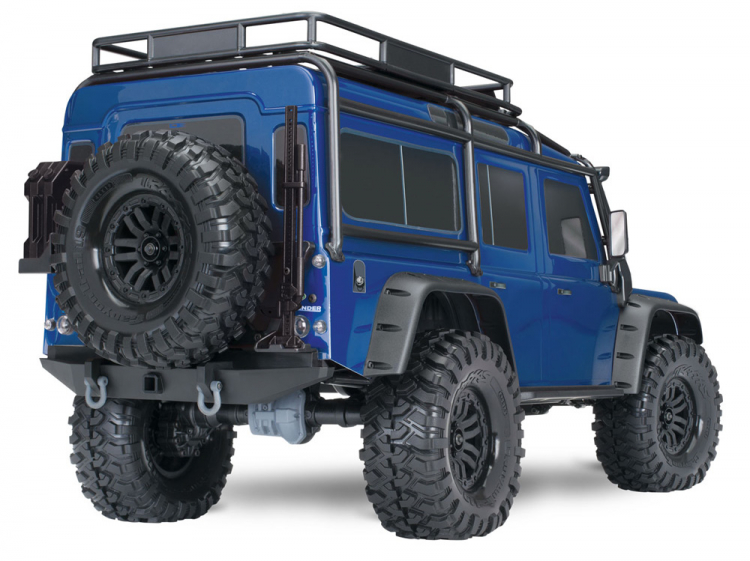

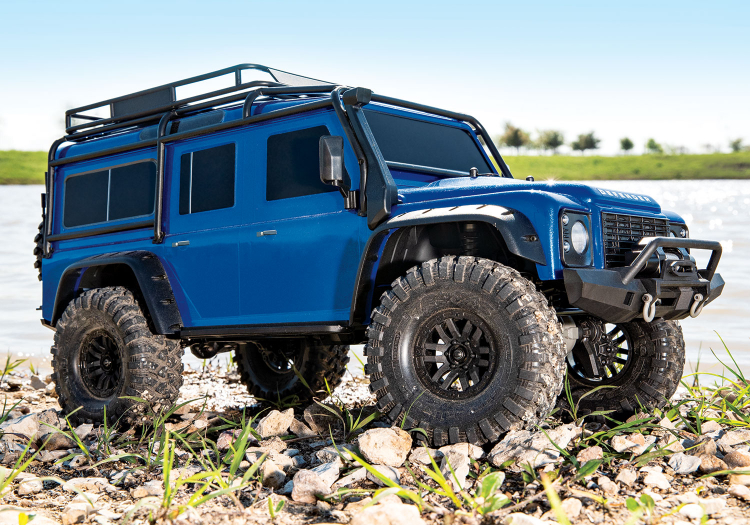

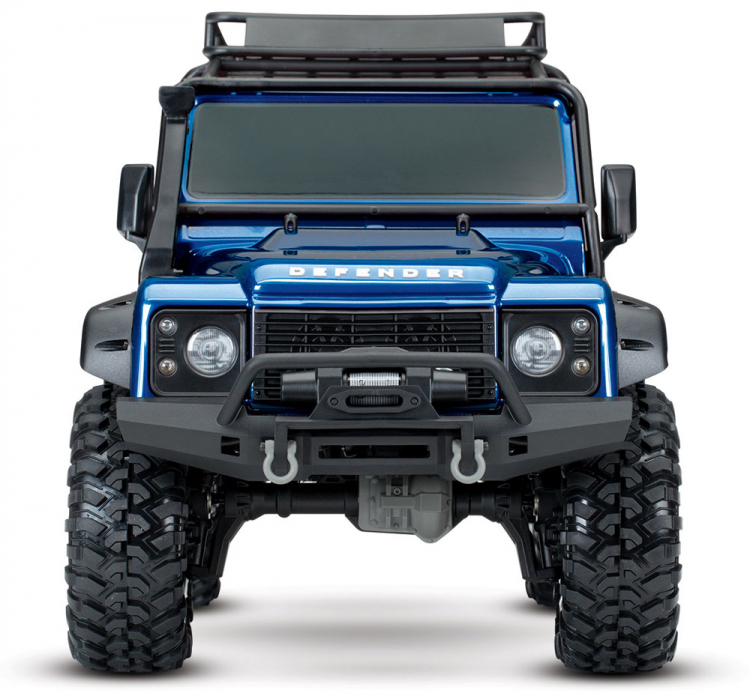

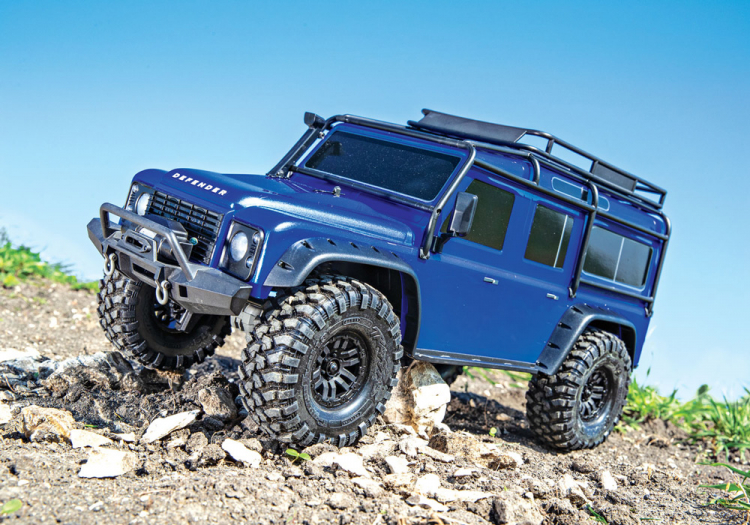

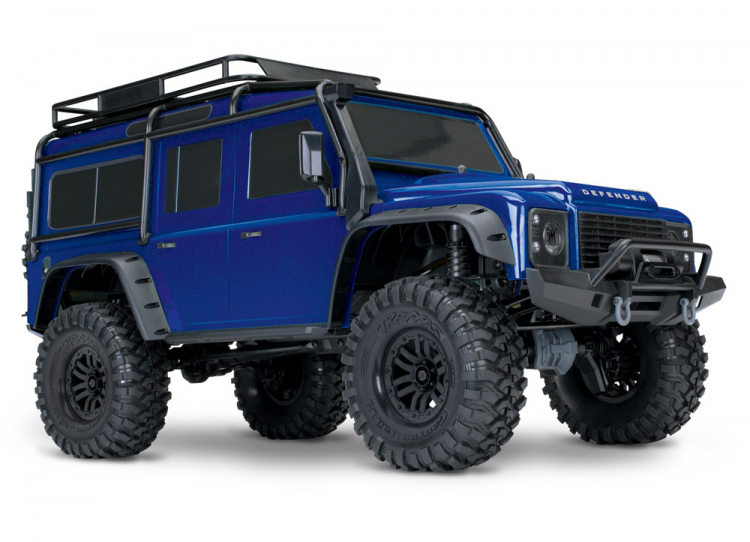

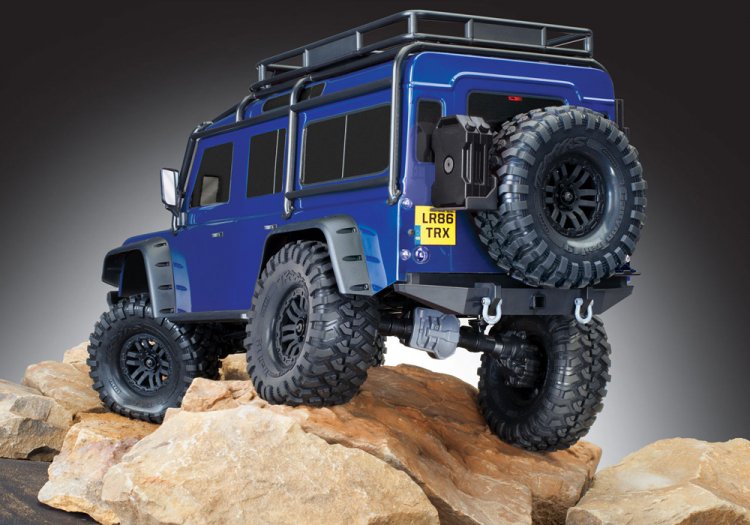

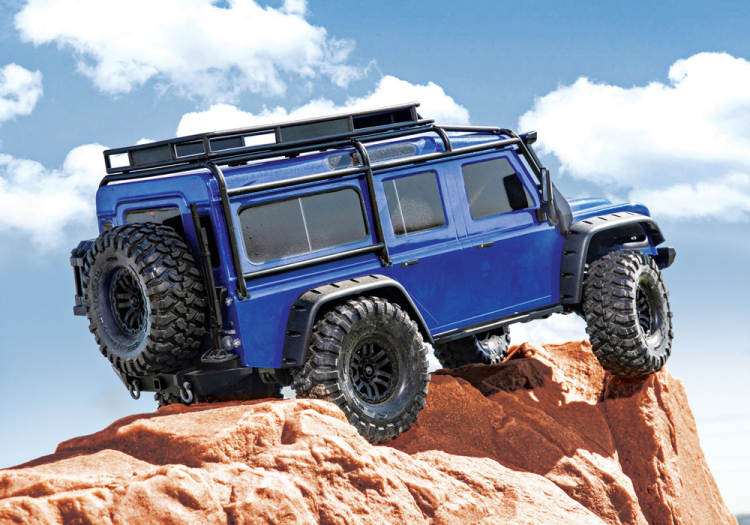

Traxxas TRX-4 1/10 Scale And Trail Crawler – Land Rover Defender – Special Edition BLUE

The new TRX-4 Land Rover Defender Adventurer Metallic Blue Limited Edition is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, the TRX-4 is built the Traxxas way, tough, powerful, and ready for fun!

Specs:

• Length: 586.1 mm
• Front Track: 248.5 mm
• Rear Track: 248.5 mm
• Ground Clearance: 79.74 mm
• Weight: 3.372 kg
• Height: 291.61 mm
• Wheelbase: 324 mm (adjustable)
• Approach Angle: 56.49°
• Departure Angle: 41.67°
• Breakover Angle: 56.97°
• Front Shock Length: 90 mm
• Rear Shock Length: 90 mm
• Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
• Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
• Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: 2-speed Hi-Lo, Remote Locking
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking

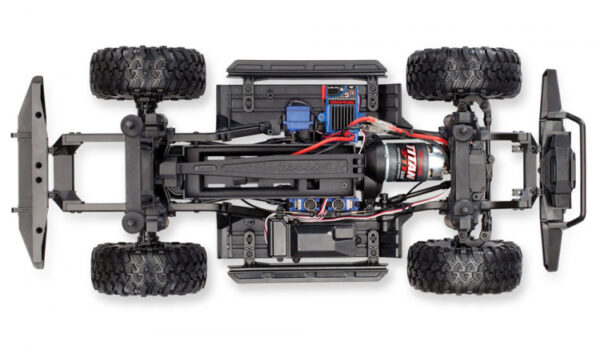

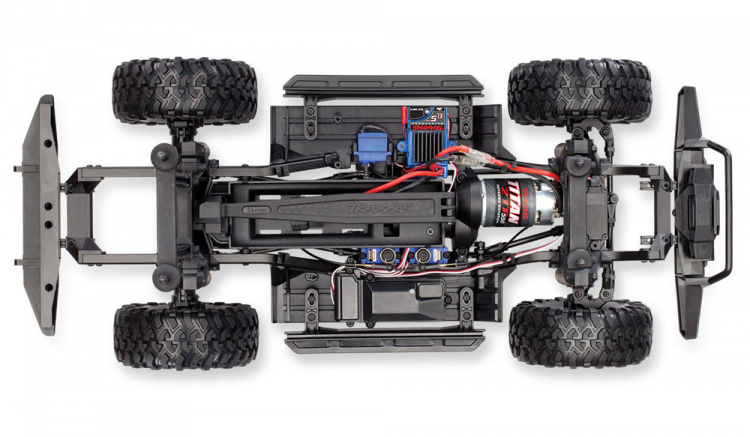

• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 2
• Battery Tray: L158.75 x W47 x H23/26 mm

Motor Specs:

• Type: High-torque brushed motor
• Size: 550
• Weight: 390 g
• Length: 78 mm overall length, 57 mm can length, 38.9 mm diameter
• Turns: 21T reverse rotation
• Voltage: 16.8V

ESC Specs:

• Input Voltage: 6–7 Cells NiMH, 2–3S LiPo
• Case Size: W31 x D55 x H26 mm
• Weight: 74 g
• Motor Limit: 21-turns (550 size)
• On Resistance Forward: 0.004 Ohms
• On Resistance Reverse: 0.004 Ohms
• Peak Current – Forward: 100A
• Peak Current – Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 127 mm
• Input Harness Wire: 26 Gauge / 127 mm
• Transistor Type: MOSFET
• PWM Frequency: 1700Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Model: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

What’s In The Box:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

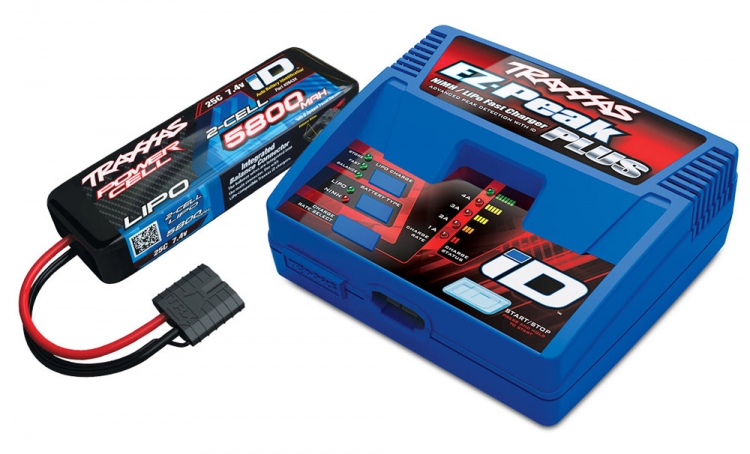

• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Land Rover and the Land Rover Logo are trademarks owned and licensed by Jaguar Land Rover Limited.
