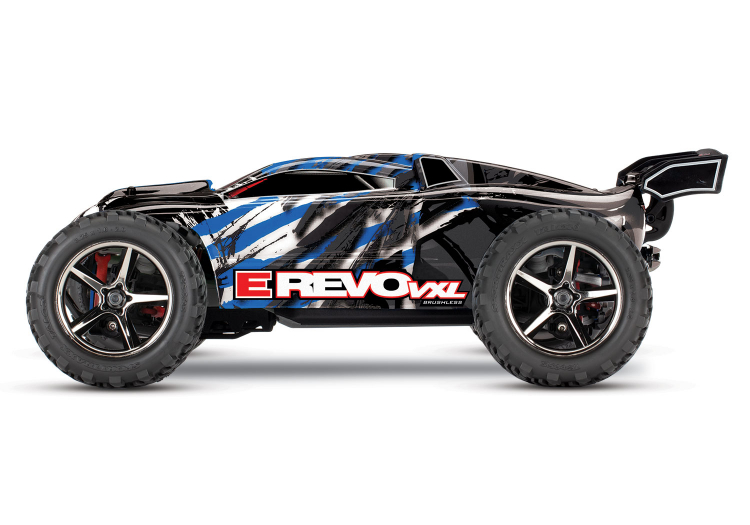

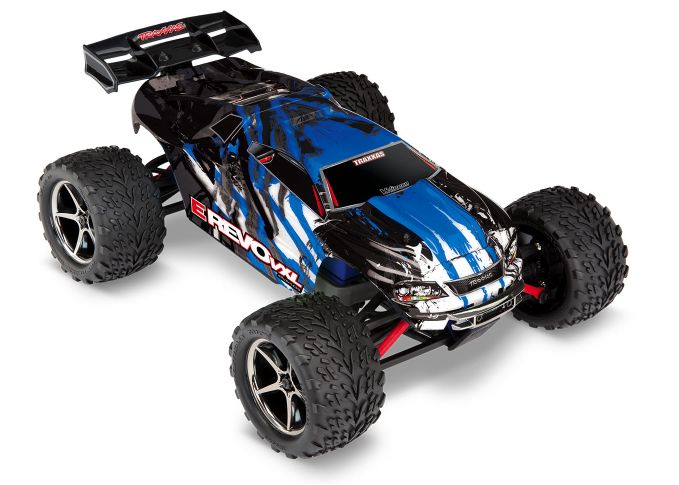

E-REVO 1/16 VXL 4WD – BL RTR TQI TSM – TRAXXAS (71076-3)

Traxxas 1/16 E-REVO VXL with battery and Charger and Blue Graphics

A New Category Of Off-Road Excitement
Traxxas sets the standard for power, performance and innovation. Now, for the first time, all the speed, quality and capability you expect from Traxxas is available in 1/16 scale with the new 1/16 E-Revo VXL. At 14 inches long, E-Revo VXL is about half the size of the 1/10-scale E-Revo. But don’t call it a «mini»—this is a whole new category of R/C performance and fun that no mere mini-model can match. Beneath the factory-finished polycarbonate shell, you’ll find the winning suspension technology of the seven-time National Champion Traxxas Revo®, screaming Velineon® brushless-motor power, and the convention-busting innovation of the E-Revo.

Proven Traxxas Innovation

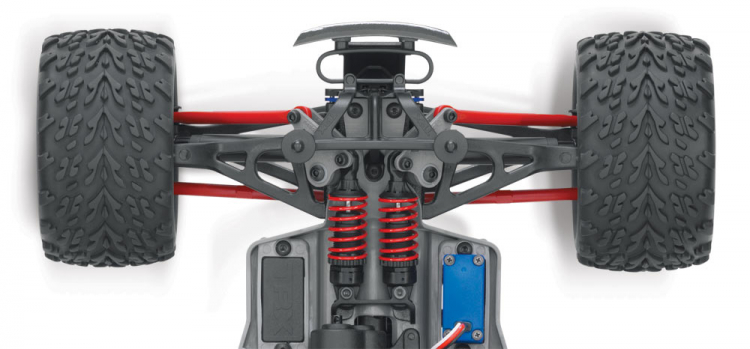

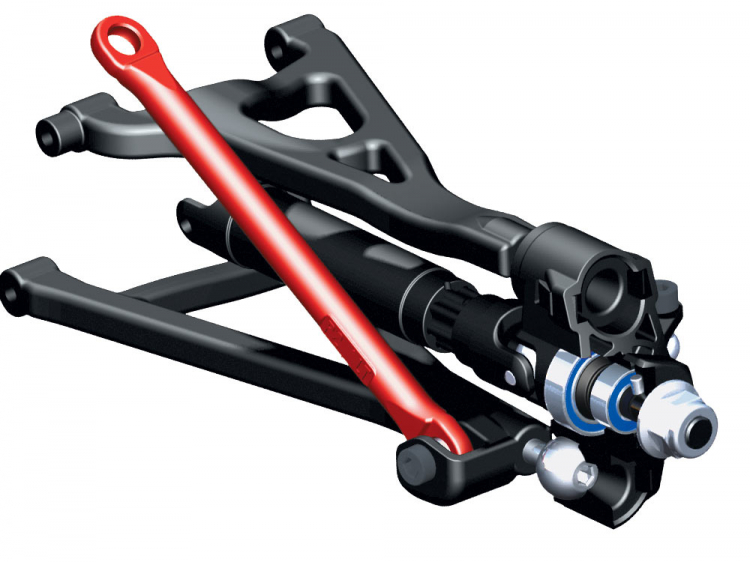

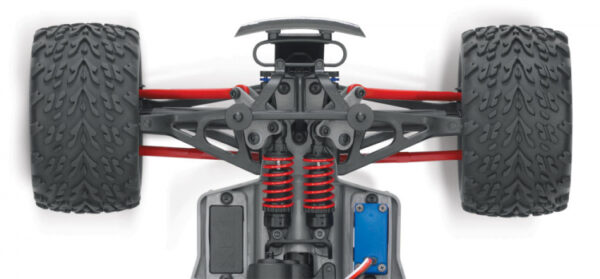

No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas’ award-winning models to 1/16 scale for fast, affordable R/C fun. The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo’s F1-inspired, rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the «mini» category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.

Class-Leading Speed
Some mini-models are «fast for a mini.» That’s not good enough for Traxxas. The 1/16 E-Revo VXL is just plain fast. At 30+mph with the included 6-cell NiMH battery, E-Revo VXL is nearly twice as fast as most mini models, and faster than most electric RTR trucks of any scale. Install a second 6-cell battery to unleash the Velineon Brushless Power System’s full fury, and E-Revo VXL jumps to over 50mph—all with proven-safe NiMH packs. No other RTR truck, regardless of scale, makes it so easy and affordable to experience this level of high speed and wheelie-popping power.

Velineon Brushless Power

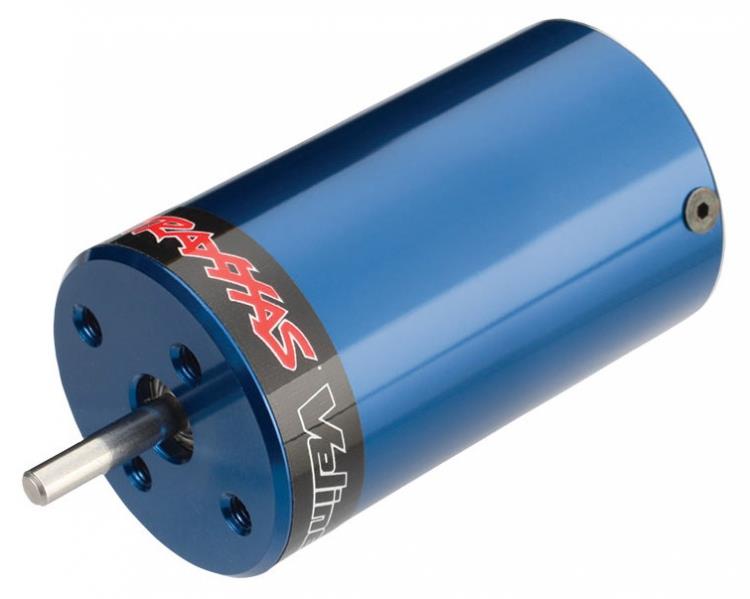

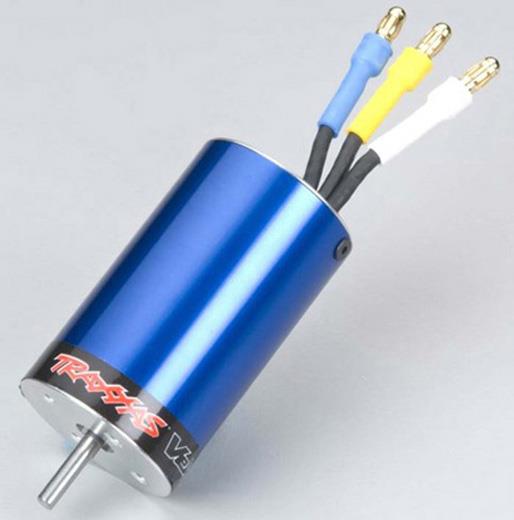

All-new and built specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon® 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives E-Revo VXL precise throttle control and blistering top speed. Patented Training Mode™ lets new drivers hone their skills at 50% throttle. When drivers’ ed is through, full power and 50+mph is unleashed with a touch of the EZ-Set® button. Big speed requires big horsepower, so E-Revo VXL and Slash 4WD VXL carry the largest motor in the «mini» category. The Velineon 380 is built to the same no-compromise specs as the Velineon 3500 found in Traxxas’ 70+mph 1/10 scale VXL models. High-speed ball bearings. Sintered rotor. Neodymium magnets. Gold plated 3.5mm connectors. It all adds up to 50,000 rpm of pure power and track-searing speed!

1/16th E-REVO BRUSHLESS VXL with TSM (#71076-3) SPECS

• Length: 328 mm
• Front Track: 239 mm
• Rear Track: 239 mm
• Weight: 1.09 kg
• Height (overall): 117 mm
• Wheelbase: 202 mm
• Front Shock Length: 48 mm
• Rear Shock Length: 48 mm

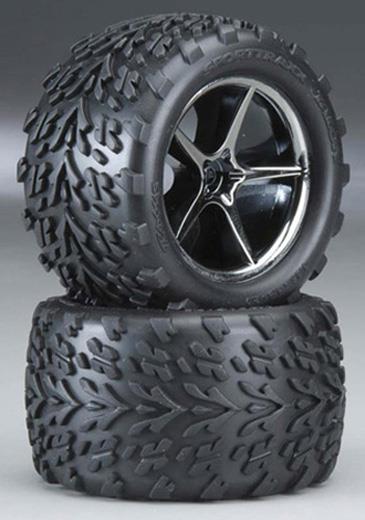

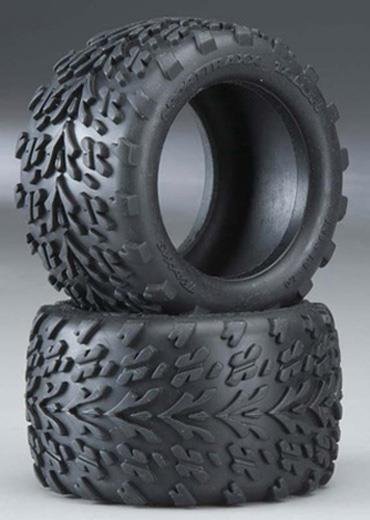

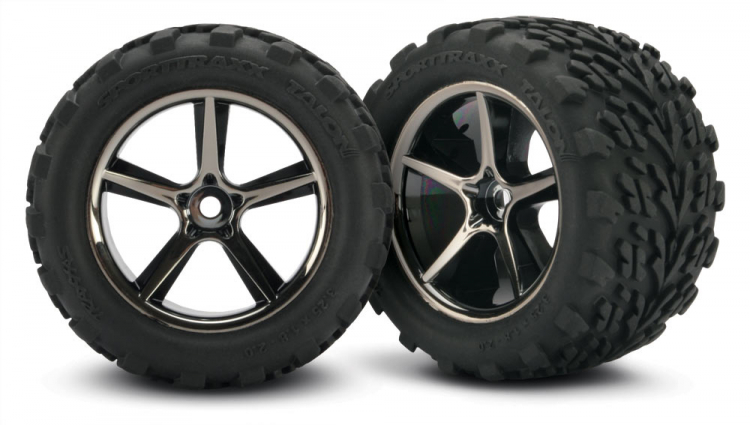

• Front Tires (pre-glued): Talon™ 2.0″
• Rear Tires (pre-glued): Talon™ 2.0″

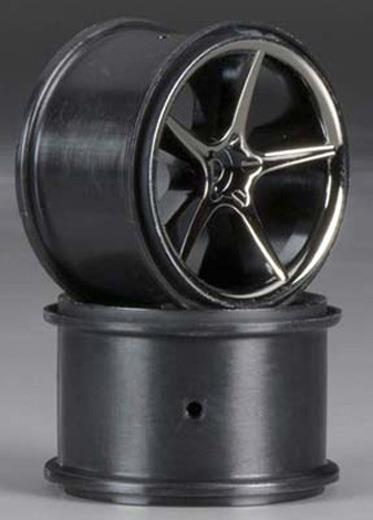

• Front Wheels: 2.0″ Gemini™ (black-chrome)
• Rear Wheels: 2.0″ Gemini™ (black-chrome)
• Electronic Speed Control: Waterproof Velineon® VXL-3m
• Motor (electric): Velineon® 380 Brushless

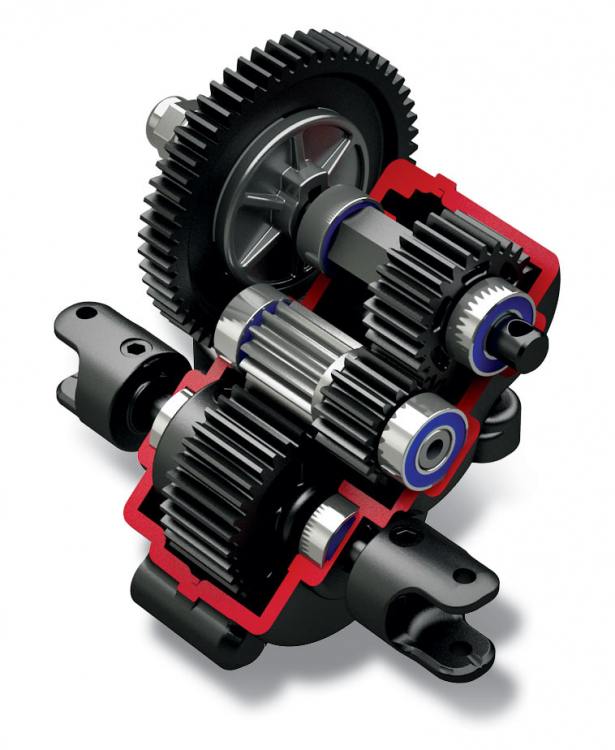

• Transmission: Heavy-Duty Single Speed
• Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
• Overall Drive Ratio: 9.00 (stock, out-of-box)

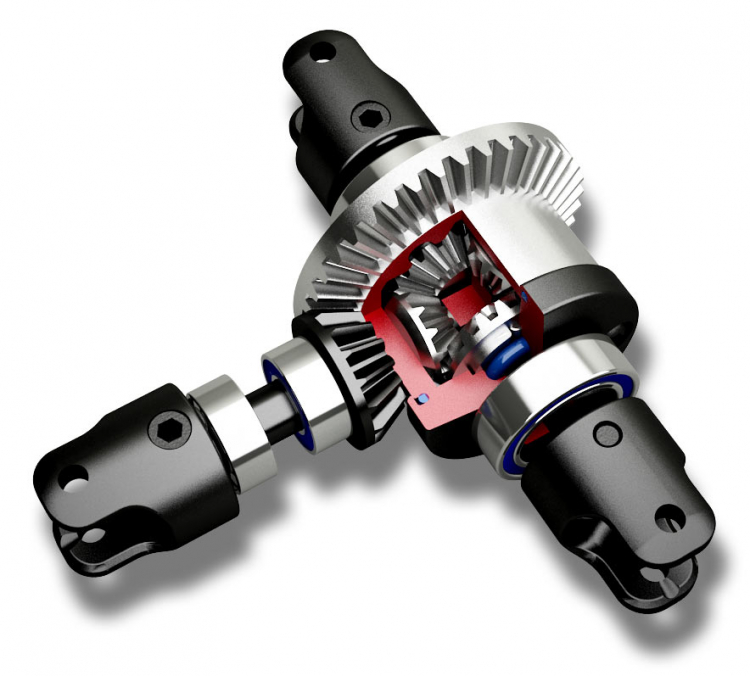

• Differential Type: Hardened Steel Bevel, Sealed
• Gear Pitch: 48P
• Chassis Structure/Material: Molded Composite Nylon Monocoque
• Brake Type: Electronic
• Drive System: Shaft-Driven 4WD
• Steering: Bellcrank
• Radio System: TQi 2.4GHz (2-channel)
• Receiver: 6533 with TSM
• Top Speed: 48+kmh out of the box (80+kmh with dual batteries)*
• Skill Level: 2
• Included Batteries: 6-cell NiMH with iD™

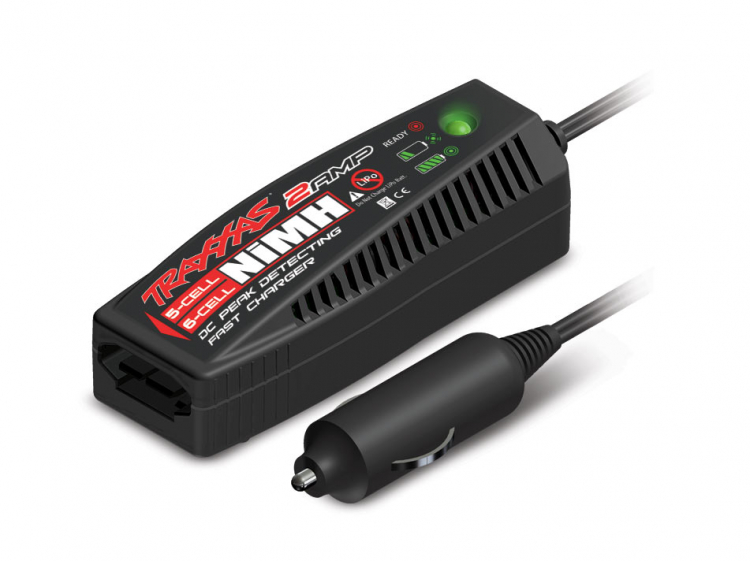

• Included Charger: 2-amp DC peak detecting fast charger
• Required Batteries: 4 «AA» (transmitter)

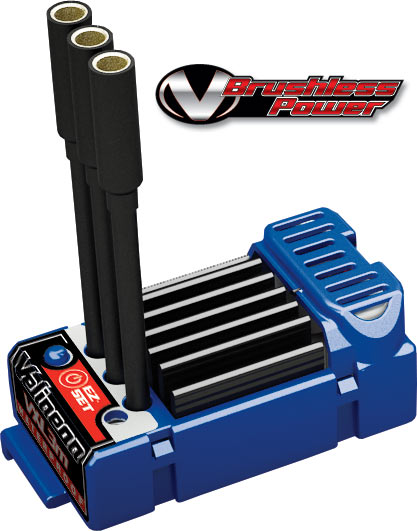

VXL-3m WATERPROOF ESC SPECIFICATIONS

• Input voltage: 6 to 12 cells NiMH, 2S to 3S LiPo
• Case Size: W26.5 x D46.5 x H22 mm
• Weight: 38 grams
• Motors: Sensorless Brushless
• Motor Limit: None
• On Resistance: 0.0005 Ohms
• PWM Frequency: 12,000Hz
• Peak Current: 326A
• Continuous Current: 52A
• BEC Voltage: 6.0V DC
• Motor / Battery Wiring: 16-Gauge Maxx® Cable
• Transistor Type: MOSFET
• Low Voltage Detection:  2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown

Profile selection:

• Sport Mode: 100% fwd, 100% brakes, 100% rev
• Race Mode: 100% fwd, 100% brakes, no rev.
• Training Mode: 50% fwd, 100% brakes, 50% rev.
• Single-button setup: Yes, Traxxas EZ-Set®

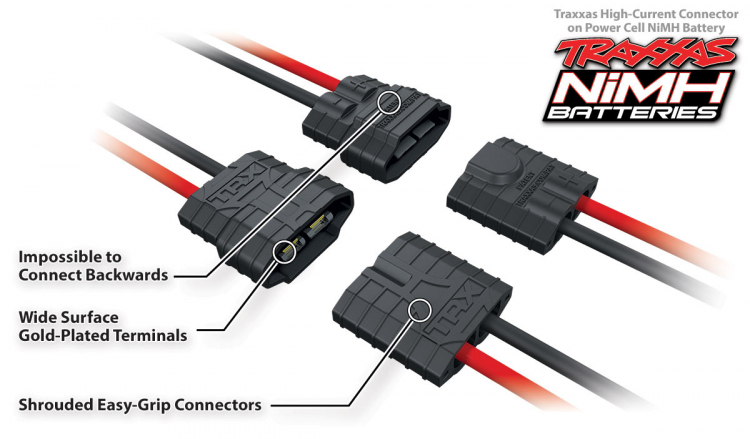

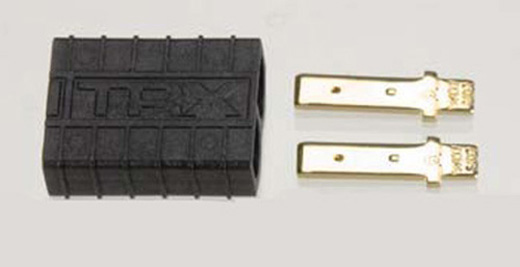

• Battery Input Connector: Traxxas High-Current Connector with iD™
• Motor Connector: TRX 3.5mm Bullet Connectors
