XNOVA XTS 4525-560KV – SHAFT A

Varenr. SB107
Kategori:
kr 3898 ,-
3 igjen på lager
Eller

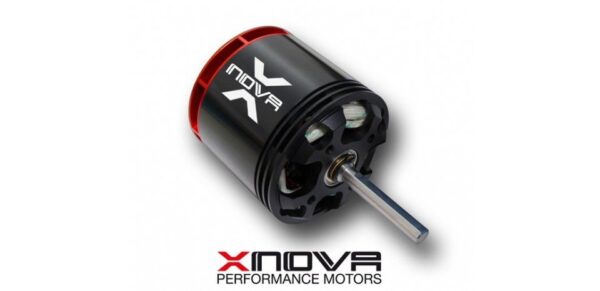

Xnova brushless high performance outrunner motor designed for extrem 3D, 600-660mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 560KV version is a superb choice for 2 blade and 3 blade setups.

High qual. Neodym Mag.heat res. up to 150 degree C.
Specialized wires,heat resistance up to 250 degree C.
Precise balanced.
High performance stator metal sheet with integrated cooling system.
3 high quality NMB bearings.
Marked leading high effiency up to 92%.
Cooler running.
Superb quality and machining of CNC parts.
Improved torque and power output.

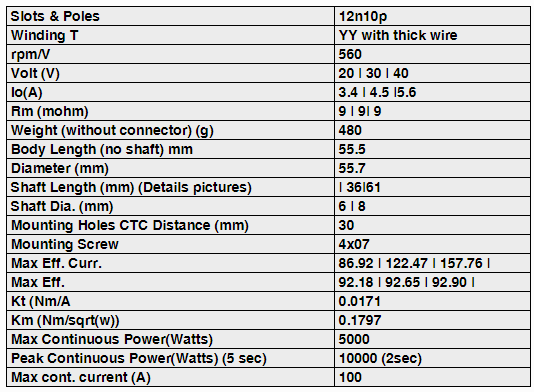

Slots & Poles 12n10p
Winding T YY with thick wire
rpm/V 560
Volt (V) 20 | 30 | 40
Io(A) 3.4 | 4.5 |5.6
Rm (mohm) 9 | 9| 9
Weight (without connector) (g) 480
Body Length (no shaft) mm 55.5
Diameter (mm) 55.7

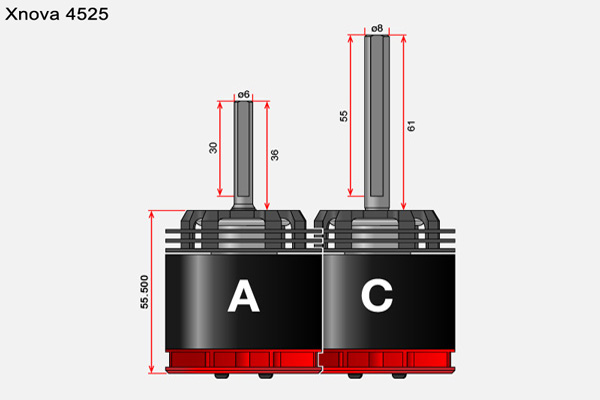

Shaft Length (mm) (Details pictures) 36
Shaft Dia. (mm) 6
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4×07
Max Eff. Curr. 86.92 | 122.47 | 157.76 |
Max Eff. 92.18 | 92.65 | 92.90 |
Kt (Nm/A 0.0171
Km (Nm/sqrt(w)) 0.1797
Max Continuous Power(Watts) 5000
Peak Continuous Power(Watts) (5 sec) 10000 (2sec)
Max cont. current (A) 100







Attributter Verdi
Produsent

Xnova

Modelltype

Brushless motor

Operasjonstype

Elektrisk
