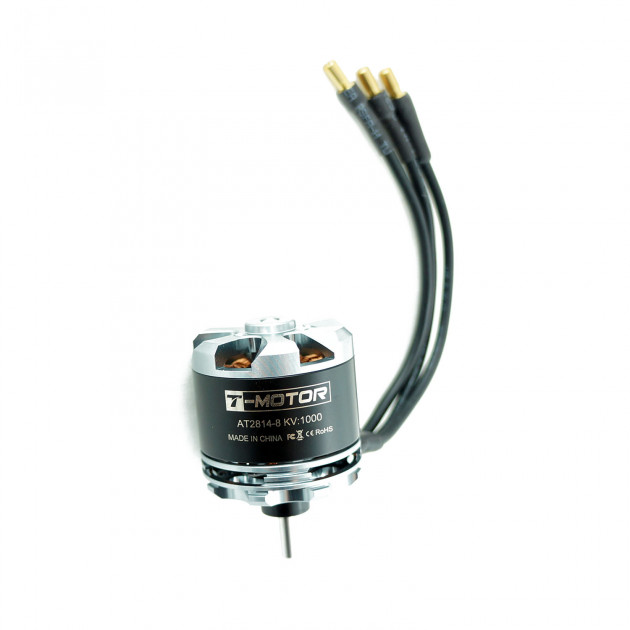

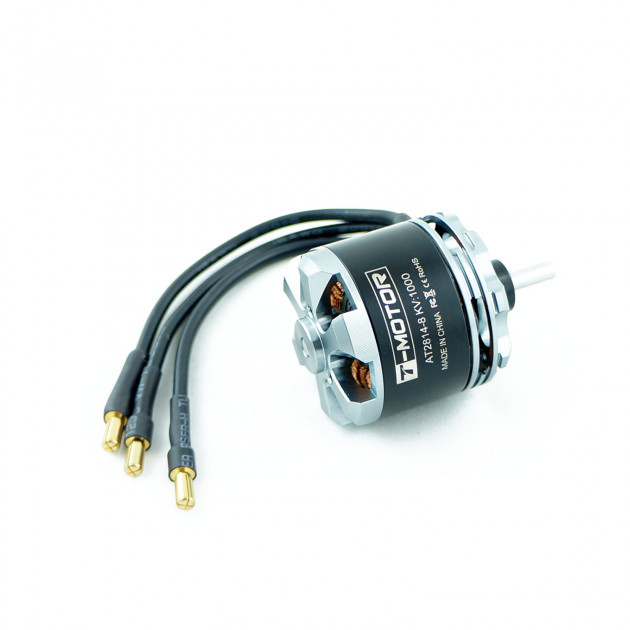

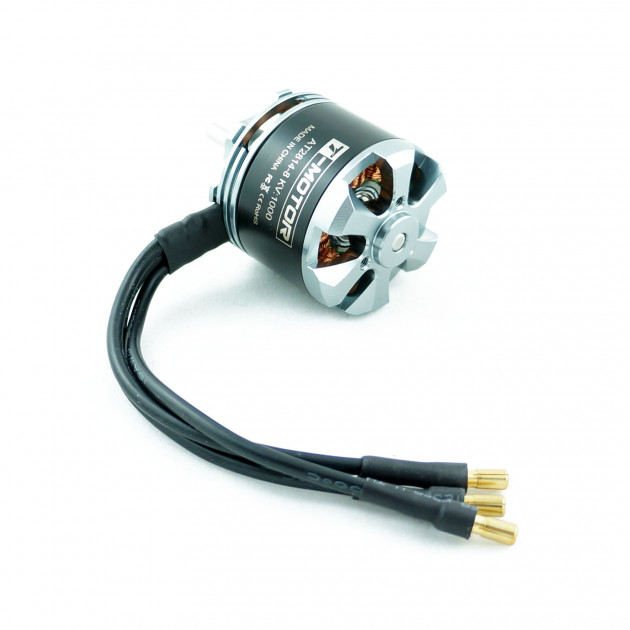

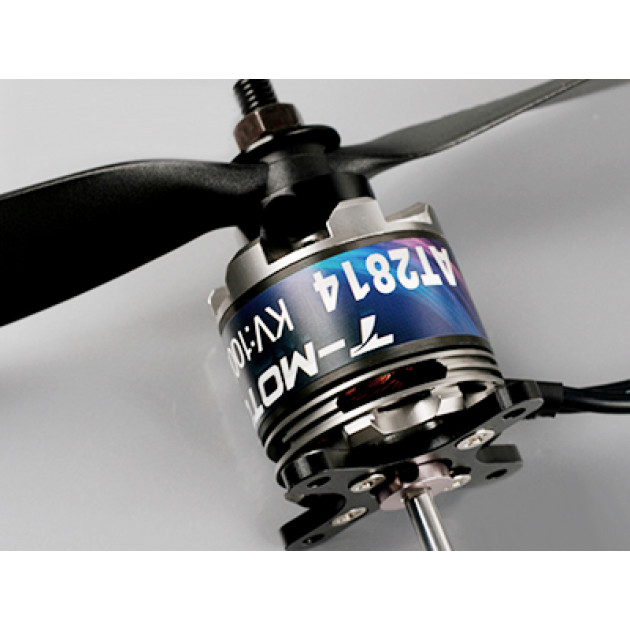

T-MOTOR AT2814/1000

High quality, powerful motor suitable for larger aircraft in the Outdoor category. The motor is equipped with a mounting cross for easier mounting on the airplane and a 6mm shaft adapter for propeller mounting. The motor has 10cm long 1.5mm2 (16AWG) cables terminated with bullet connectors.

Key Features

• Configuration: 12N14P

• Stator Diameter: 28mm

•  Stator Length: 14mm

•  Shaft Diameter: 4mm

•  Motor Dimensions: 35 x 36 mm

•  Weight: 109 g (with cables)

•  Wires: 100mm  1,5mm2 (16AWG)

• Kv: 1000

•  Idle Current: 1,2A

•  Number of LiPo Cells: 2 – 4s

•  Maximum Continuous Power 180s: 370 W

•  Maximum Continuous Current 180s: 35 A

•  Maximum Efficiency Current: 8-28A > 73%

• Internal Resistance: 68mOhm

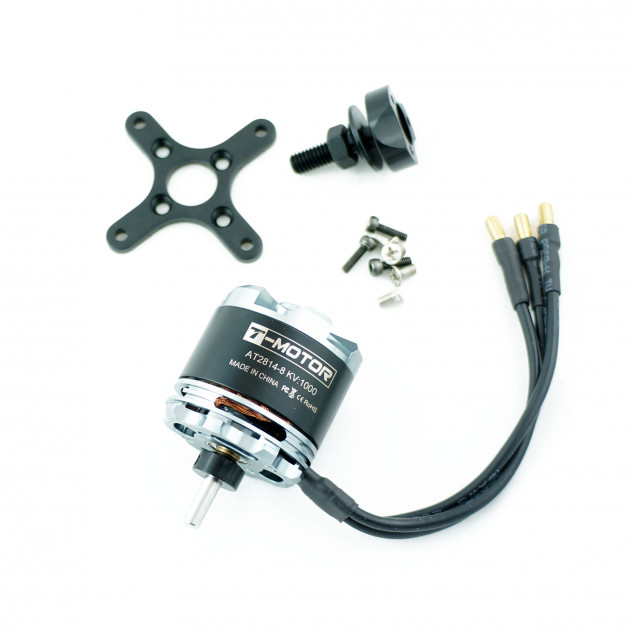

Package Includes

• 1x Motor

• 1x Mounting cross

• 1x Propeller adapter – 6mm

• 1x Set of screws
