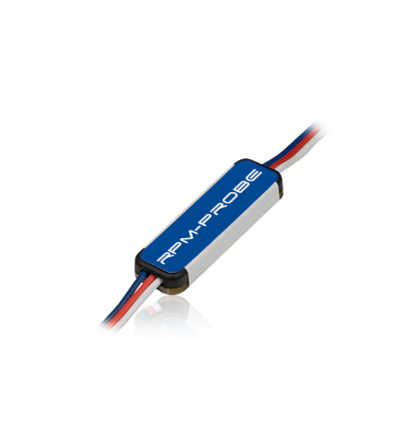

POWERBOX RPM-PROBE

Varenr. 6605
Kategori:
kr 250 ,-
1 igjen på lager
Eller

Product description

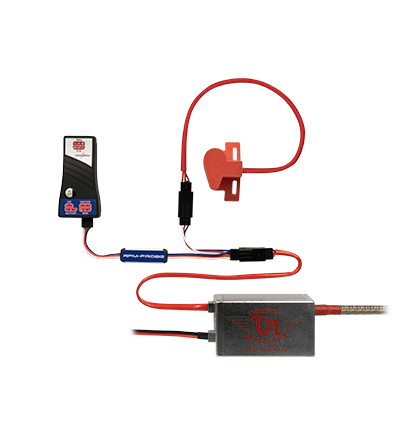

TheRPM probeis connected directly to the ignition unit’s induction sensor or magnet sensor. The unit amplifies and processes the signal in such a way that the output passes accurate rotational speed pulses to theSparkSwitch RS, which in turn makes the rotational speed (rpm) available for the radio control system’s telemetry system.

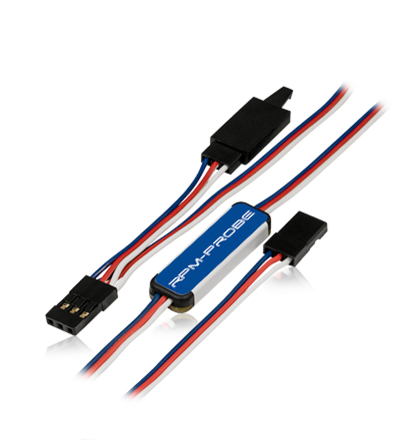

The connecting lead is simply plugged in between the ignition unit and the induction or Hall sensor. DA engines, in particular, utilise an induction pick-up, and this system collects the signal and amplifies it without placing a load on the signals.

TheRPM probedraws power from theSparkSwitch RS.





Technical Data

Dimensions

32 x 10 x 4 mm

Weight

7 g

Temperature range

-30°C to +105°C

Attributter Verdi
Produsent

Power Box
Modelltype

LiIon-2S
