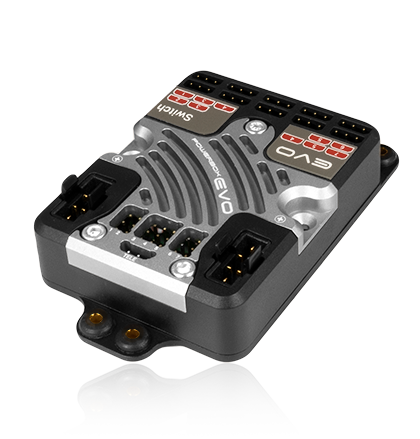

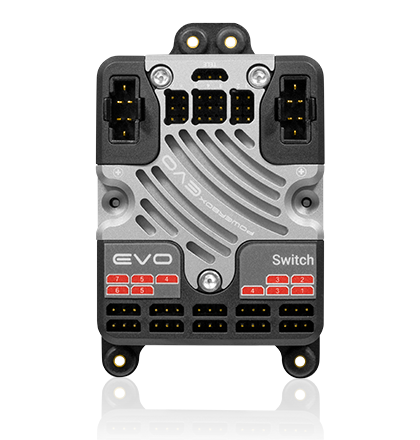

POWERBOX EVO INCL. MICROSWITCH

Name: POWERBOX EVO INCL. MICROSWITCH - RCpro
SKU: 4250
Price: 2716 NOK
Availability: InStock

Varenr. 4250

Kategori: Powerbox systems

kr 3395 ,-

Features

7 channels
10 outputs
High-performance battery backer with high continuous load capacity
All power electronics duplicated
Redundant electronic switch
Four selectable output voltages: 6.0V, 7.4V, 7.8V or unregulated

Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
All features can be controlled from PowerBox and Jeti transmitters
Signal amplification for all 10 outputs
Voltage indication by means of tri-colour LEDs
Supports four battery types: LiPo, LiIon, NiMh/NiCd, LiFe
Servo feedback current suppression
Machined high-performance heat-sink for optimised heat dissipation
Machined, anodised aluminium switch case
Compact format

Technical Data

Operating voltage	4.0V – 9.0V
Power supply	2S LiPo, 2S Lilon, 2S LiFePo, 5S NiMH
Current drain Power-on state	66mA
Current drain Standby	8μA
Maximum load current	2×10 A (<30s 2x 40A)
Drop-out voltage	0.3V
Output voltage	6.0V, 7.4V, 7.8V, unregulated
Signal input	PWM

Supported RC systems	PowerBox, Futaba, Jeti, Spektrum, Multiplex, JR, G
Channels	7
Servo sockets	10
Supported telemetry systems	P²BUS, S.BUS2, EX-BUS, SRXL2, M-Link, Hott, JR-DMS
Dimensions	89 x 55 x 18 mm
Weight	69g
Weight Sensor Switch	8g
Temperature range	-30°C to +105°C
