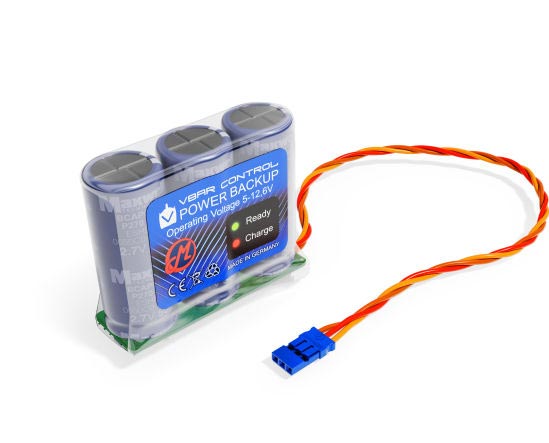

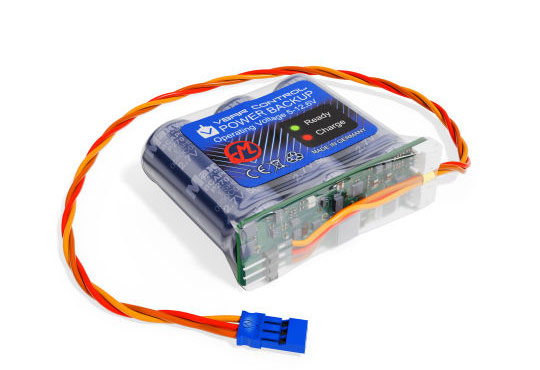

POWER BACKUP VBAR MIKADO

Benefits at a glance

• automatic activation and deactivation, depending on the operational status of the model (motor switch position, stick inputs)

• all voltages can be monitored separately via telemetry

• charging currents are adjustable, both for initial charging and for topping-up during operation

• recharges automatically and immediately whenever needed

• companion App warns the pilot whenever the backup is used

• this unit ensures the everyday operation of your valuable models

Hardware features

• wide input voltage range from 3 V up to 12.6 V (3s LiPo) with a 16 V peak margin

• Capacity 3 x 50 F, 40+ A peak current

• short circuit protection

• fast charge (adjustable) up to 2.4 A

• charging current is ramped up slowly, to protect main power supply

• decoupled channels for power delivery and for charging

• VLink Telemetry monitoring and control

• no r/c channel (servo connector) must be sacrificed, pass-through via main connector

• active balancer between capacitors for low idle discharge

• up to 3 units can be connected parallel, tripling the capacity and power; cascaded units are fully suported by companion App

• telemetry input for other sensors or ESCs (daisy-chaining)
