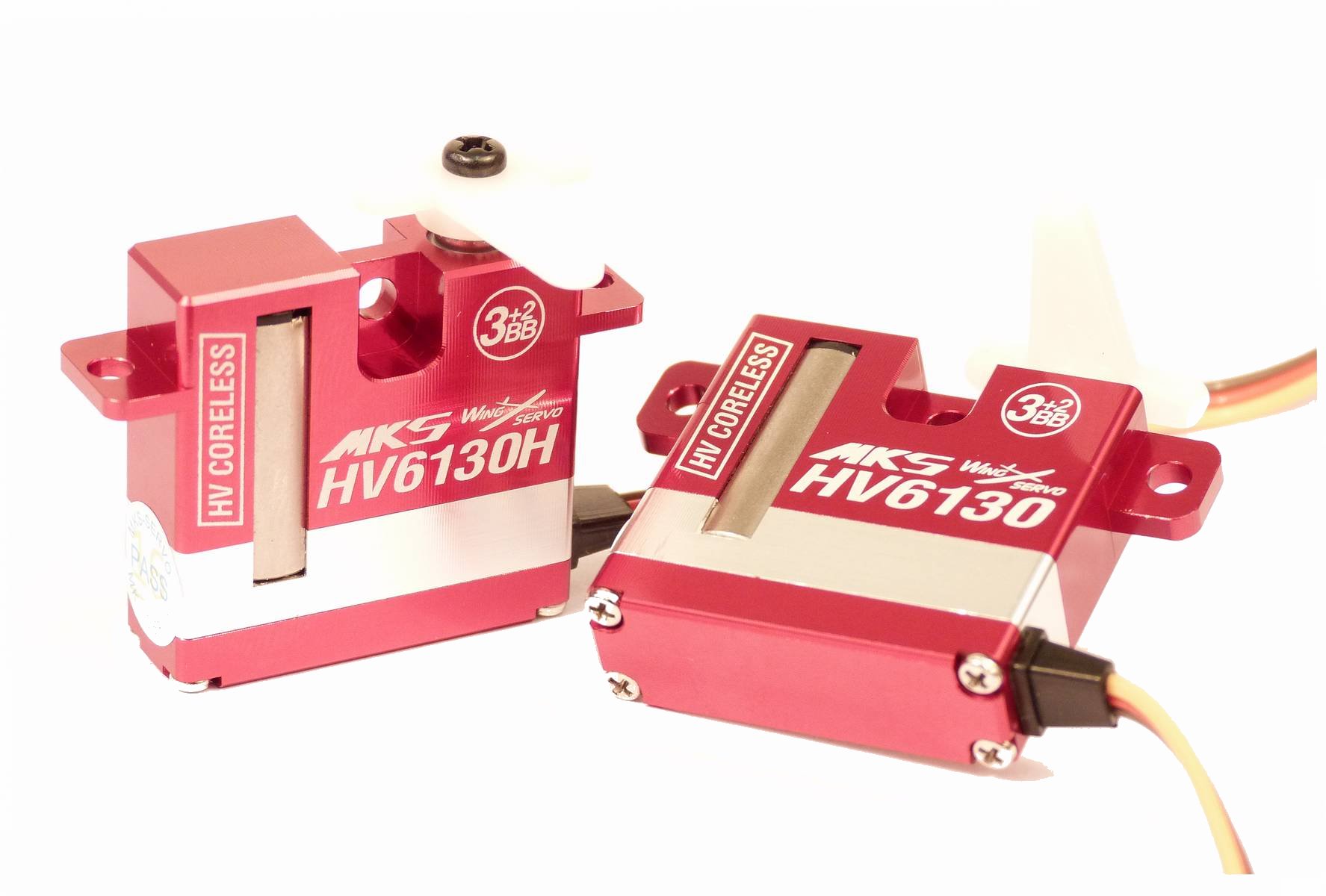

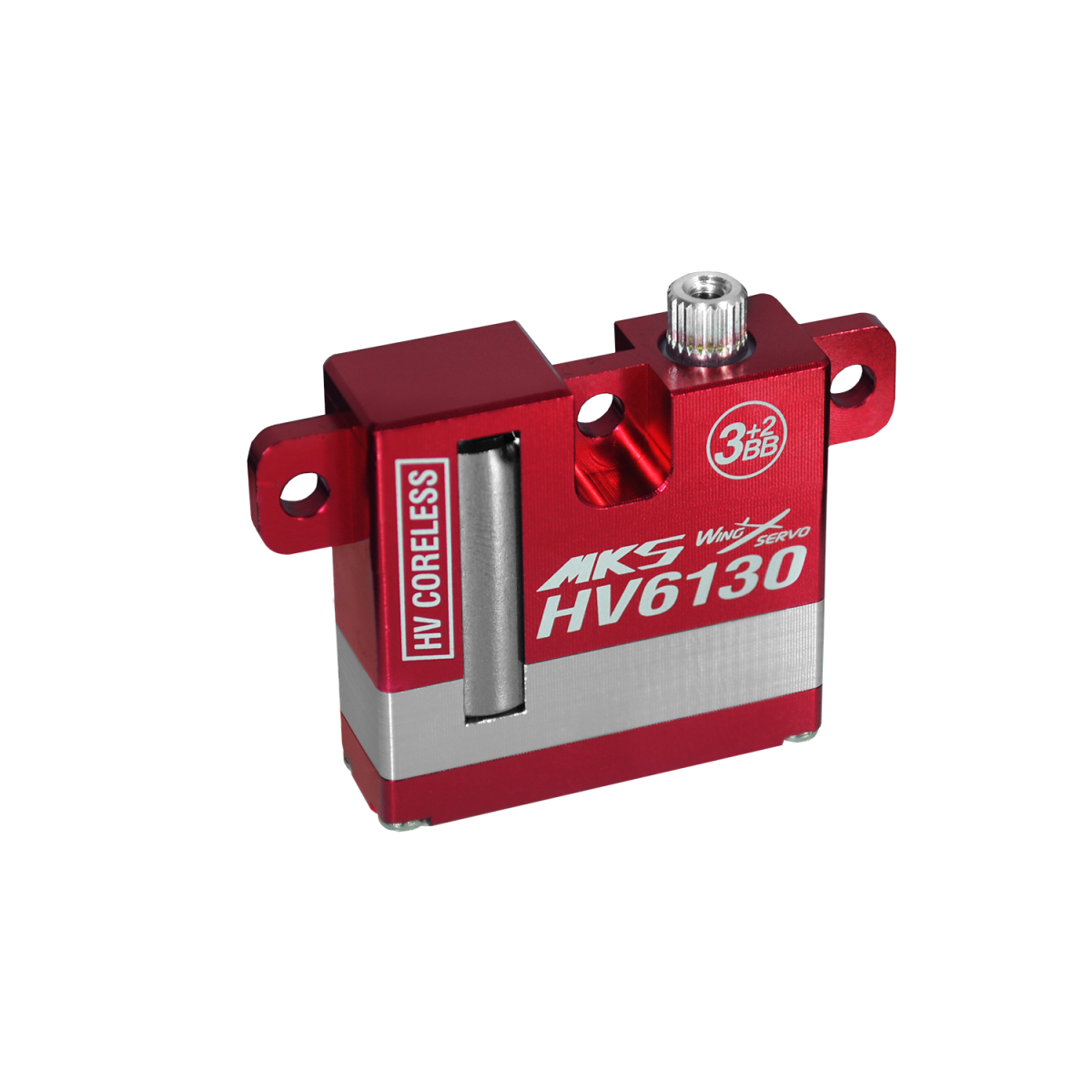

MKS HV6130 WING SERVO

The fantastic MKS HV6130 Wing Servo is here! The HV6130 has 8.1 Kg.cm of torque, absolutely no free play (zero slop) and works on 1S and 2S LiPo as well as 4.8V – 6V NiMH batteries. The aluminium casing and especially the third mounting point between the output shaft bearing and the motor housing creates a very rigid mechanism, minimising compliance. The Bulit-In Safe System ensures that if the motor shorts out for any reason the driver isolates the motor, allowing the plane to land safely without excess current drain.

The MKS HV6130 is a low-medium-high voltage servo to replace the acclaimed MKS DS6125 Glider and MKS DS6125 Mini servos. It is specially optimised for glider fliers, with outstanding torque, precision, and a very low dead band. On a 2S LiPo battery it has higher torque and speed than the DS6125 Mini, DS6125 Glider and even the HBL6625 Mini servo. At 23 g it is also lighter than all these servos. It is a very high torque 10 mm thin servo suitable for many glider, jet, heli and other applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.

At only 10 mm thick this superb wing-servo can easily fit in thin wings, and with an excellent 8.1 kg.cm torque and a blistering 0.10s/60° speed it is excellent for flaps, ailerons and other control surfaces on many high performance F3B, F3F, F3J, DS gliders, and F5J electric gliders, jets, ducted fans and fast sport slopers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

Check out this excellent RCGroups HV6130 installation tip.
