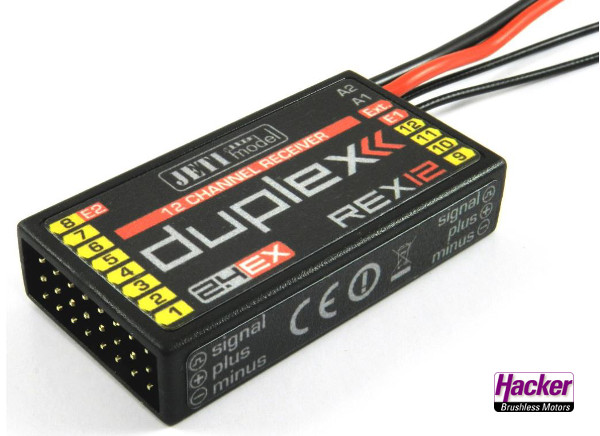

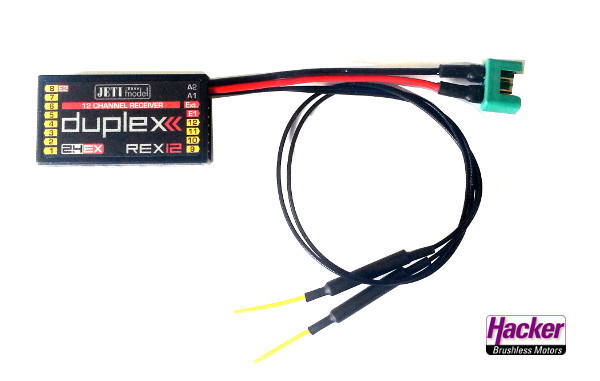

JETI DUPLEX REX 12 EPC MOTTAKER 2.4EX

DUPLEX 2.4EX REX 12

– internal memory for logging tel. and control signals
– integrated to connect Expander up to 3 sensors
– Protocol support: PPM, EXBUS, EX, UDI

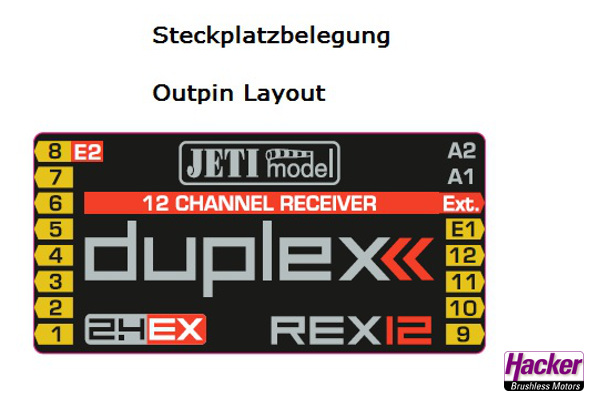

– programmable output pins
– supports commands
– compact dimensions
– 32 bit processor
– with a full range
– programmed via JETIBOX and also wirelessly using Duplex DC/DS transmitters

techn. datas:

Weight [g]  24

Dimensions [mm]  51 x 28 x 11

Number of channels  12

Telemetry  Yes
Operational temperature [°C]  -10 … 85
Compatible protocols  DUPLEX 2.4GHz EX, EX Bus, UDI

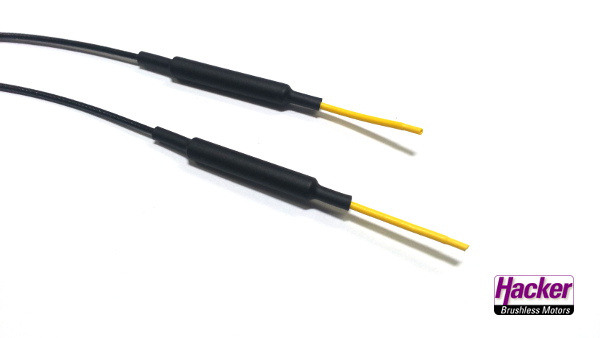

Antenna Length [mm]  2 x 400

Supply Voltage [V]  3,2 – 8,4
Average Current [mA]  30
Satellite receiver support  Yes
Output Power [dBm]  15
Receiver Sensitivity [dBm]  -106

EPC (MPX) power connector
