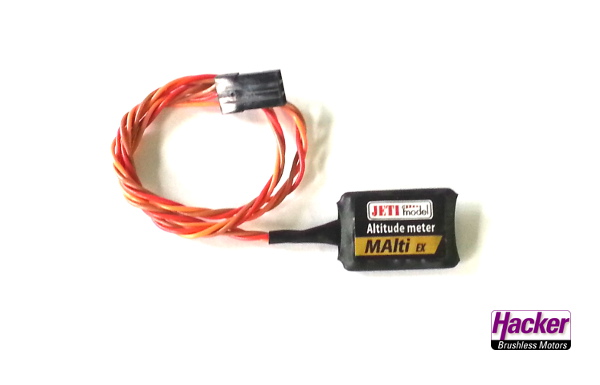

JETI DUPLEX 2.4EX MALTI (REV.2)

The MALTI EX (Rev. 2) is a sensor which measures the atmospheric pressure. From the measured data, the Malti EX calculates the height above sea level and the relative height

above ground. In addition, the minimum / maximum data values and the sensor can output warnings for set values. The data of the sensor will be transmitted via the

duplex system and the actual measured values in real time on the LCD screen of the Jeti Jeti model or the DC / DS Tx display.



Key Features

– Measurement* of altitude, barometric pressure, temperature.
– Possibility for audible alarms at Jeti Duplex transmitter modules and the JetiBox Profi.
– The Malti is compatible with the EX bus protocol for convenient setting on the device manager of DC / DS-16 transmitter.
– Firmware updates via Jeti USBa adapter



Technical data of the Malti (Rev. 2):

Dimensions [mm]: 30x16x7
Weight incl. Cable [g]: 5

measurement accuracy the relative height [m]: ± 3

Resolution altimetry [m]: 0.1
Measuring range [hPa]: 450 ÷ 1100
Temperature [° C]: -10 to 85
Power consumption [mAh]: 15
Power supply range [V]: 3,5 to 4,8



* Note: a glider variometer function can not be provided by a MAlti. For this you use e.g. the JETI MVario2.
