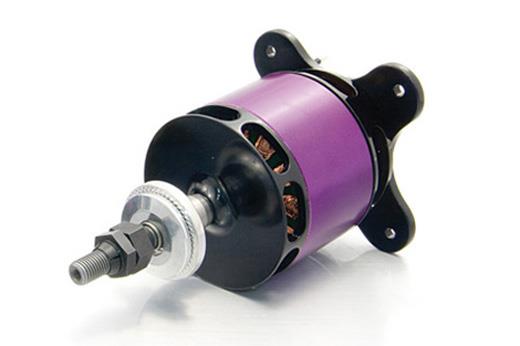

HACKER A60-8S V4 OUTRUNNER MOTOR – 33726637
A60-8S V4 28-Pole kv188
Product description and features
The A60 outrunners are the largest and most powerful motors in the Hacker A series. They are used in all facets of RC flying, including sports planes, warbirds, F3A models, 3D aerobatic models, FES gliders and helicopters. Depending on the length and speed of the selected motor, the drive is powered by 6 to 12 S Lipo. Due to the integrated fan and the large, reinforced ball bearings, these motors are very robust and durable. The A60-XS and -S variants are supplied as a backmount version. No motor mount is required. The A60-M and -L variants can be front-mounted. Alternatively, our separately available aluminium motor mount with additional support bearing can be used.
Description
Our 10S power drive for sport and scale models up to 7kg. Due to its design, it is ideally suited for backmounting directly or via spacer bolts on the motor bulkhead.
Accessories
You will find suitable controllers, batteries, propellers and mounting accessories such as motor mounts and spacer bolts in the Accessories tab.
Scope of delivery
1x A60-8S V4 28-Pole kv188, accessories for backmount mounting, prop driver and instructions.
| Specifications | |
| max. power range [W] (max.15 sec.) | 2400 |
| Poles | 28 |
| Turns | 8 |
| Idle current (I0) at 8.4V [A] | 1,1 |
| Internal resistance (Ri) [Ohm] | 0,031 |
| Recommended timing [°] | 25 |
| Switching Frequency [kHz] | 8 |
| Controller recommendation [A] (depending on setup) | 80 – 120 |
| Idle speed per volt (kv) | 188 |
| Dimensions and weight | |
| Weight [g] | 595 |
| Length [mm]/[in] | 67 |
| Outer diameter [mm]/[in] | 60 |
| Shaft diameter [mm]/[in] | 8 |
| Delivery contents | |
| Prop Adapter | Ja |
| Mounting cross | Ja |
| Gold plug mm (recommended) | 4 – 5,5 |
| Backmount mountable | Ja |
| Front mountable | Nein |
| Propeller | Xoar 21×13 | Xoar 24×10 |
| LiPo | 10S | 10S |
| Voltage [V] | 38 | 38 |
| Current [A] | 65 | 75 |
| Power [W] | 2521 | 2858 |
| RPM | 6018 | 5789 |
| Controller [A] | 90 | 90 |
| Timing[°] | 20-25 | 20-25 |
| Attributter | Verdi |
|---|---|
| Produsent |
Hacker |
| Modelltype |
Brushless motor |
