HACKER A50-14S V4 OUTRUNNER MOTOR 15726838
A50-14 S V4 kv425
Product description and features
The Hacker A50-V4 motors are 14-pole external rotor motors whose efficiency has been further improved through continuous development. The A50-V4 series has a new rear end shield with fan, which enables even more efficient internal cooling of the entire motor. The different lengths and windings allow an exact adaptation to the model and allow a power range up to 2000W.
The main range of use is for sport and scale models from 2.2 kg to 6.0 kg, for aerobatic and 3D models up to 4.0 kg take-off weight. For electric and scale gliders from 7.0 kg to approx. 15.0 kg. The A50-V4 also fits perfectly in helicopter models of the 500/550 and 600 class.
This weight-optimised high-end motor with a weight of only 345g fits perfectly in motor models up to 4 kg or gliders up to 8kg.
Accessories
You will find the suitable regulator, batteries and a suitable propeller in the accessories tab.
Scope of delivery

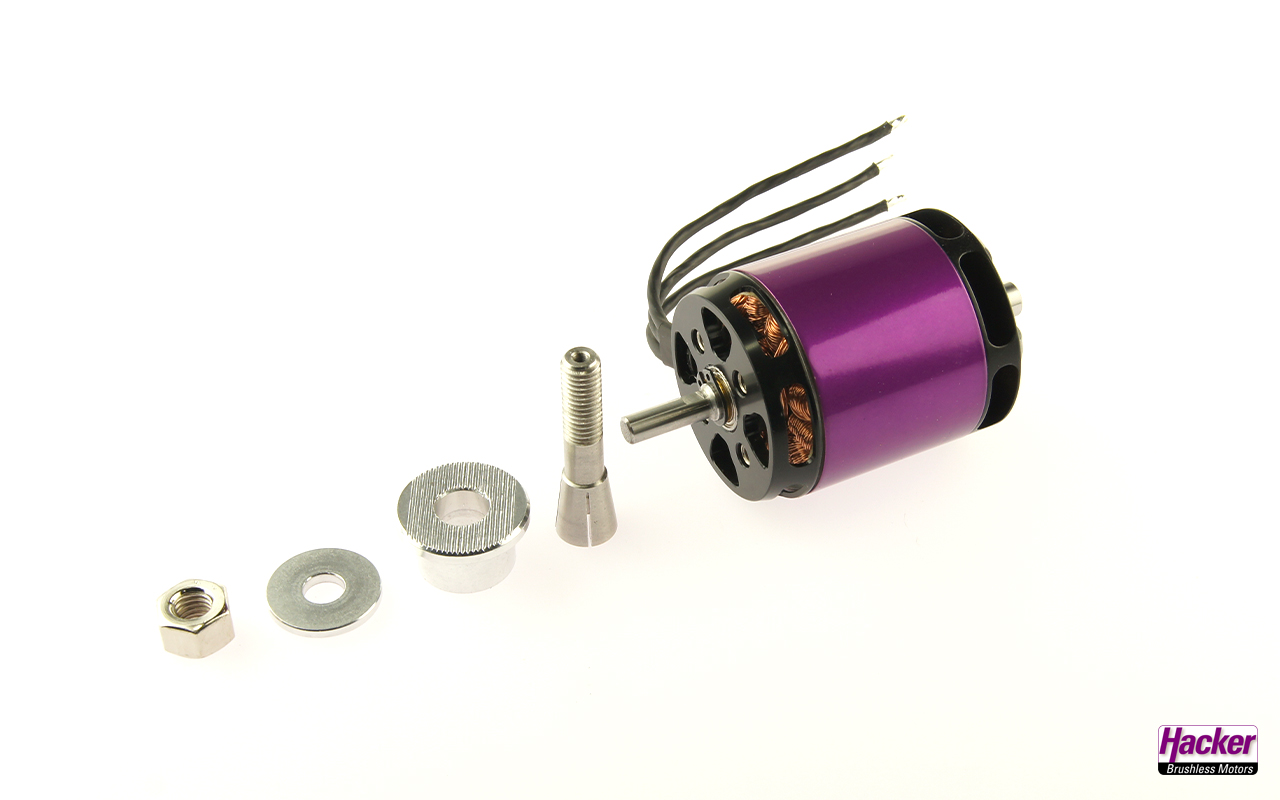

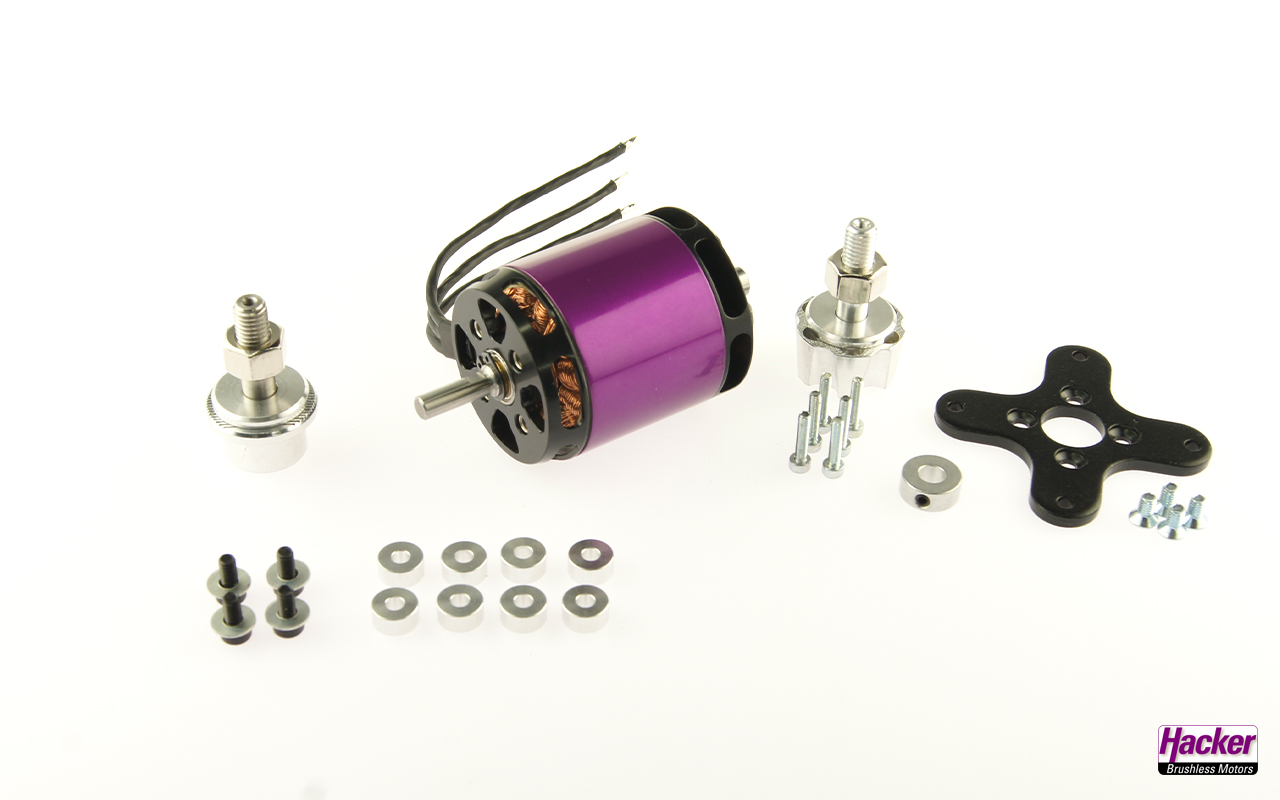

1x A50-14 S V4 kv425, accessories for front and back mount, prop driver and instructions.
|
Specifications |
|
|
max. power range [W] (max.15 sec.) |
1250 |
|
Poles |
14 |
|
Turns |
14 |
|
Idle current (I0) at 8.4V [A] |
1,5 |
|
Internal resistance (Ri) [Ohm] |
0,021 |
|
Recommended timing [°] |
20 – 25 |
|
Switching Frequency [kHz] |
8 |
|
Controller recommendation [A] (depending on setup) |
70 – 90 |
|
Idle speed per volt (kv) |
425 |
|

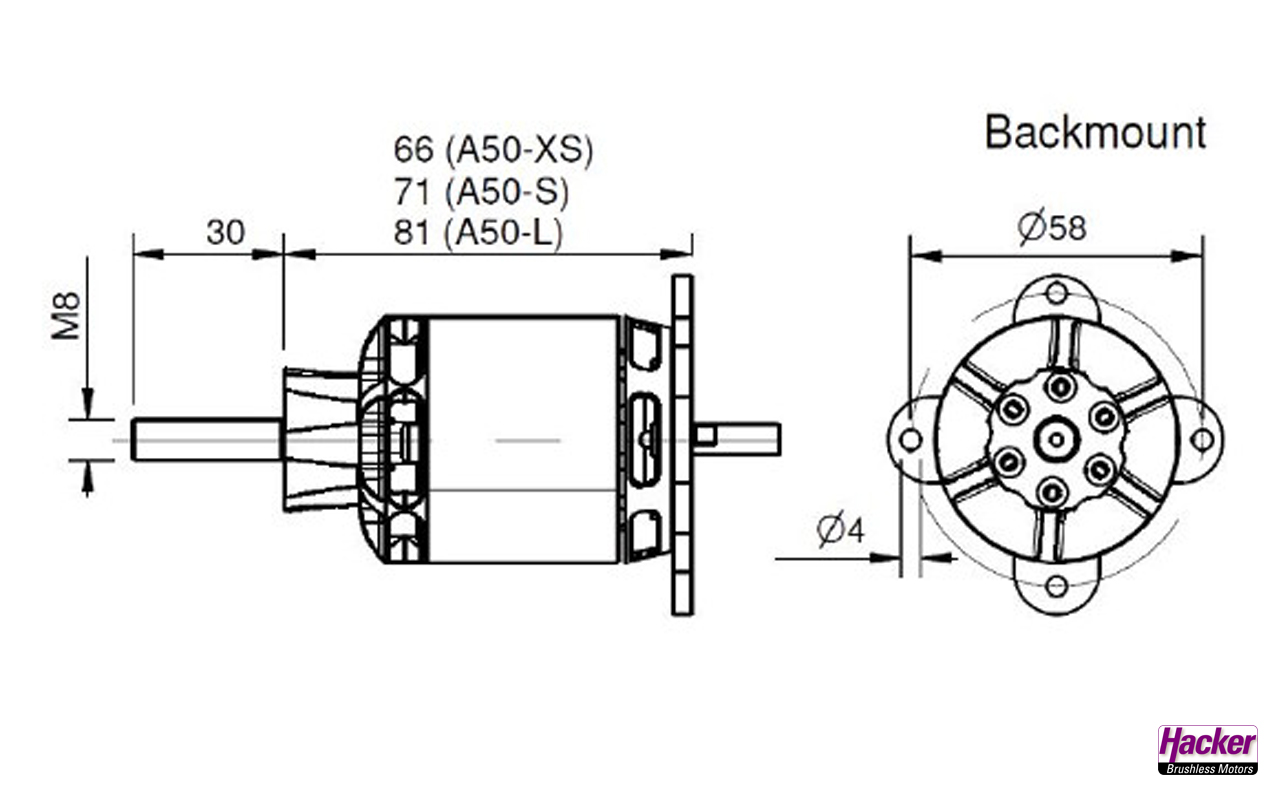

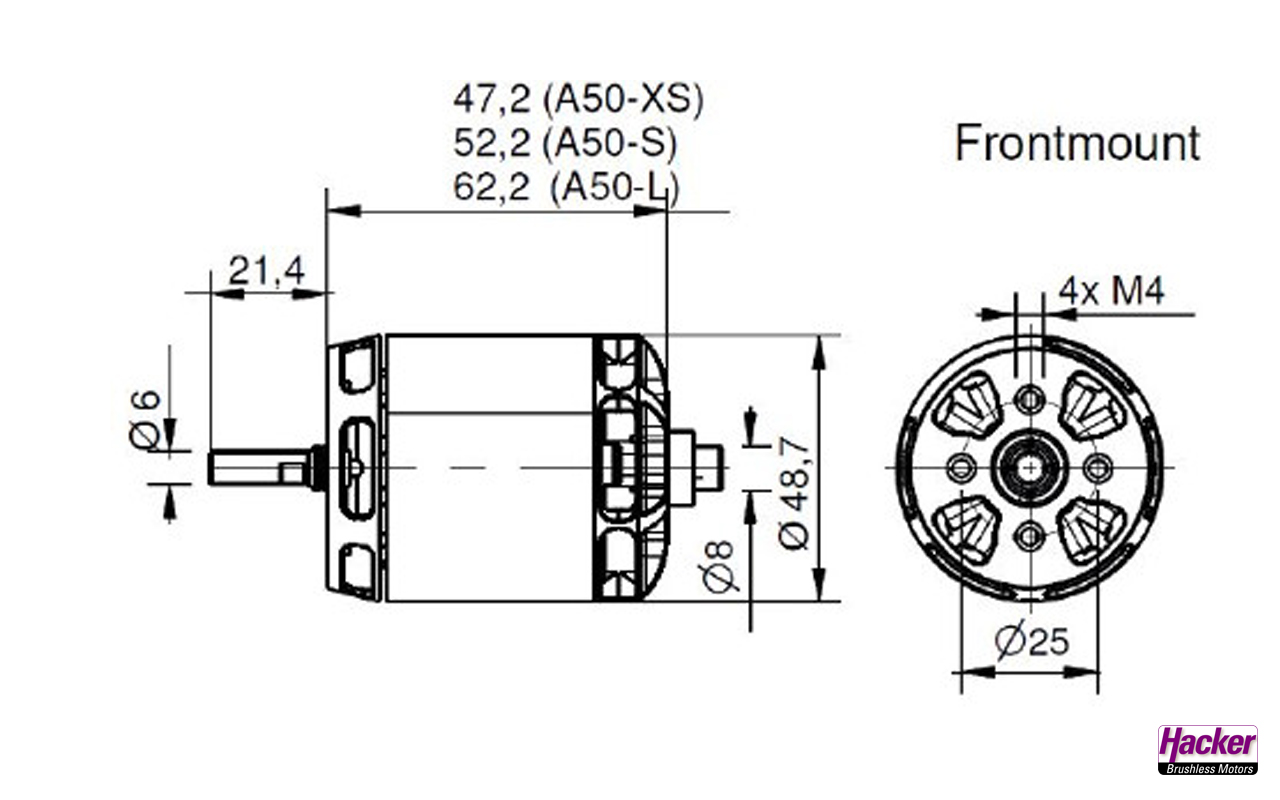

Dimensions and weight |
|
|
Weight [g] |
345 |
|
Length [mm]/[in] |
47,2 |
|
Outer diameter [mm]/[in] |
48,7 |
|
Shaft diameter [mm]/[in] |
6 |
|
Delivery contents |
|
|
Prop Adapter |
Ja |
|
Mounting cross |
Ja |
|
Gold plug mm (recommended) |
4 |
|
Backmount mountable |
Ja |
|
Front mountable |
Ja |
| Propeller | Xoar 16×10 | Xoar 15×10 |
| LiPo | 5S | 6S |
| Voltage [V] | 19 | 23 |
| Current [A] | 58 | 62 |
| Power [W] | 1117 | 1420 |
| RPM | 6988 | 8413 |
| Controller [A] | 70-80 | 70-80 |
| Timing[°] | 20-25 | 20-25 |
| Attributter | Verdi |
|---|---|
| Produsent |
Hacker |
| Modelltype |
Brushless motor |
