HACKER A50-12L TURNADO V3 KV450 GLIDER

Name: HACKER A50-12L TURNADO V3 KV450 GLIDER -
SKU: 97826734
Price: 2195 NOK
Availability: InStock

Varenr. 97826734

Kategori: Hacker

kr 2744 ,-

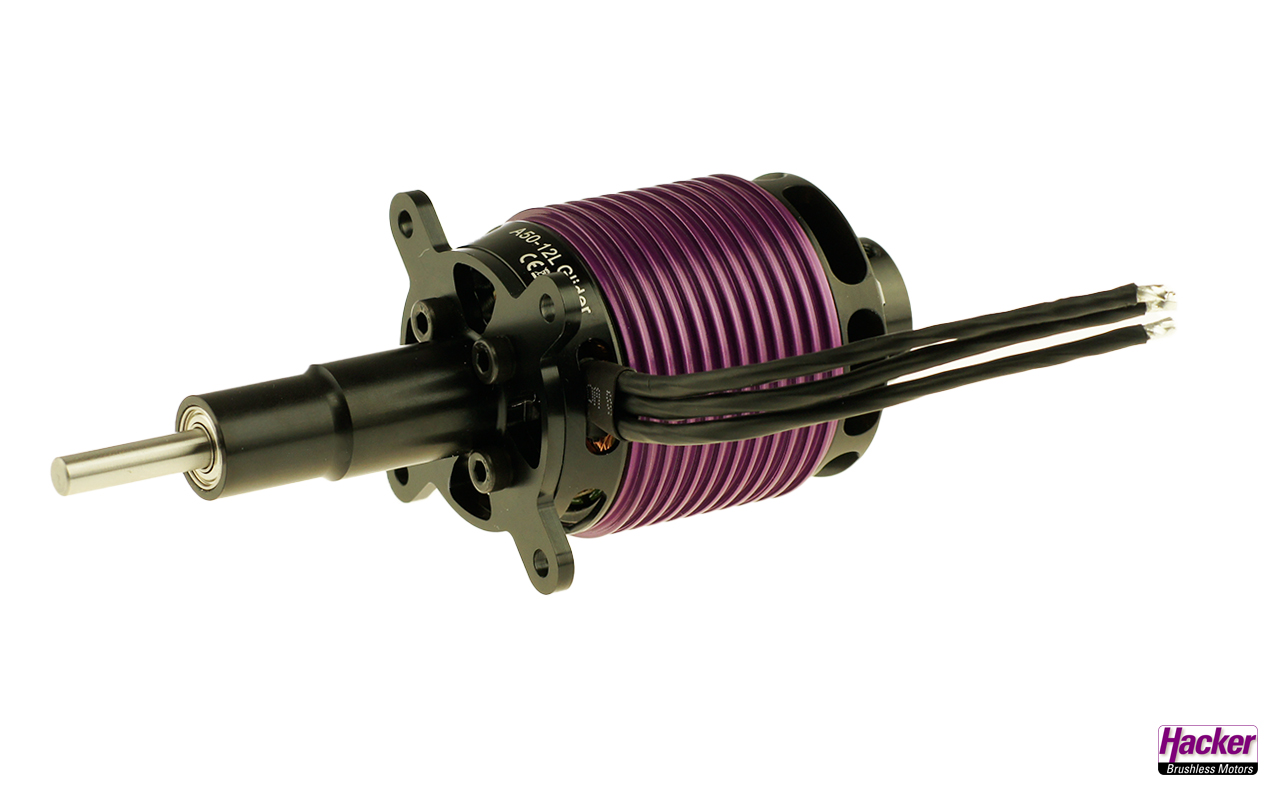

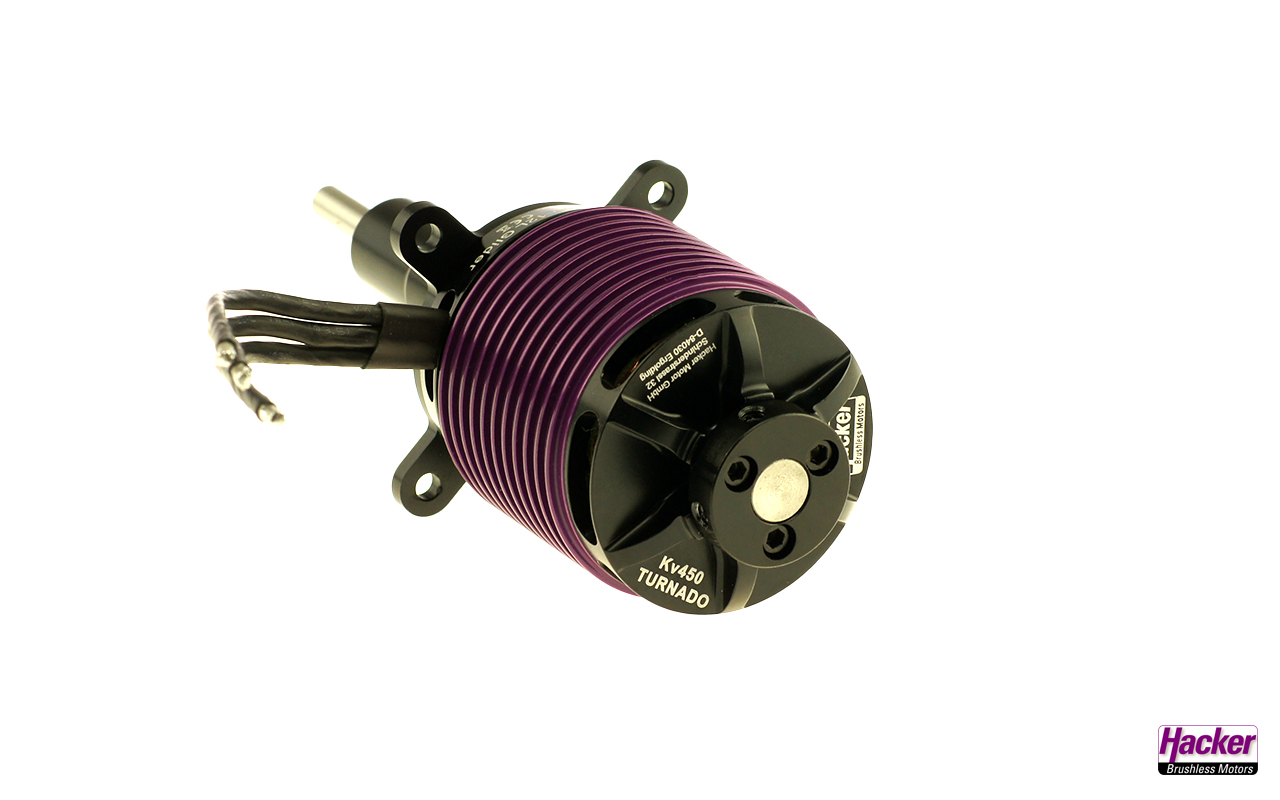

A50-12L Turnado V3 kv450 – Glider

Product description and features

The Turnado V3 Glider fits seamlessly into our range of sail noses/FES drives. Due to the shaft extension with integrated support bearing, this drive can also be installed in slim sail noses. The shaft can be easily moved by loosening the three M3 screws on the back. The model can be converted to a glider in no time. It is possible to switch between electric flight and glider towing. The shaft has a diameter of 6 mm, for the use of the usual prop drivers and scalespinners.

This weight-optimised high-end motor with a weight of only 507g fits perfectly in glider models from 12 kg to 16 kg.

Accessories

You will find suitable controllers, batteries and a suitable propeller in the accessories tab.

Scope of delivery

1x A50-12L Turnado V3 kv450 – Glider and manual.

Specifications
max. power range [W] (max.15 sec.)	4000
Poles	10
Turns	12
Idle current (I0) at 8.4V [A]	1.2
Internal resistance (Ri) [Ohm]	0.019
Output shaft	6
RPM max.	24000
Recommended timing [°]	15-20
Switching Frequency [kHz]	8
Controller recommendation [A] (depending on setup)	75-130
Idle speed per volt (kv)	450
max. current [A]	75

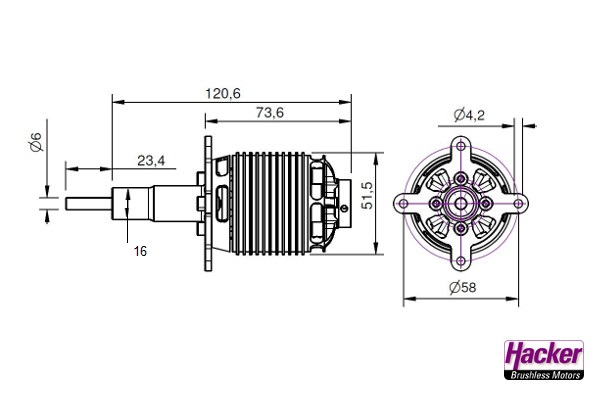

Dimensions and weight
Weight [g]	445
Length [mm]/[in]	61
Outer diameter [mm]/[in]	51.5
Shaft diameter [mm]/[in]	6
Delivery contents
Prop Adapter	Nein
Mounting cross	Ja
Gold plug mm (soldered)	nein
Gold plug mm (recommended)	4
Backmount mountable	Nein
Front mountable	ja
