HACKER A50-10L TURNADO V4 KV530 LONG SHAFT

Name: HACKER A50-10L TURNADO V4 KV530 LONG SHAFT - RCpro
SKU: 15726043
Price: 2180 NOK
Availability: InStock

Varenr. 15726043

Kategori: Hacker

kr 2725 ,-

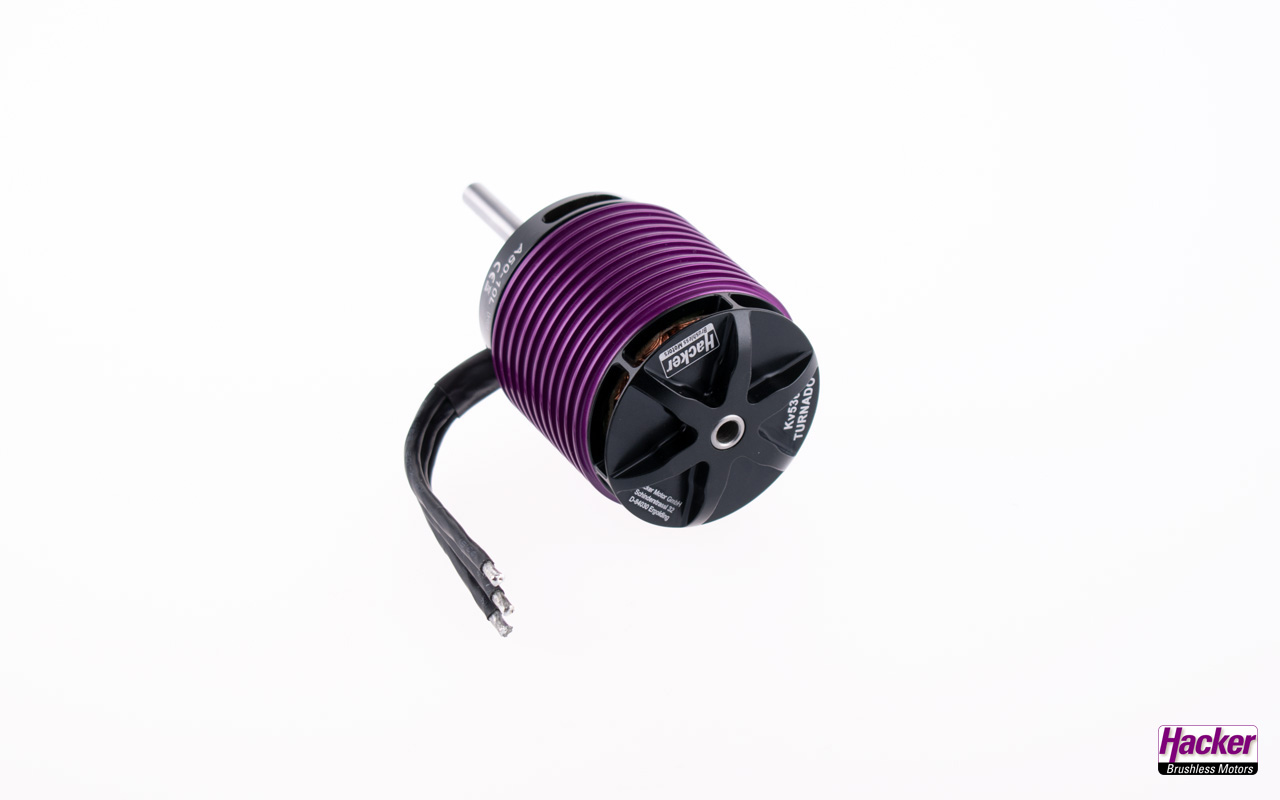

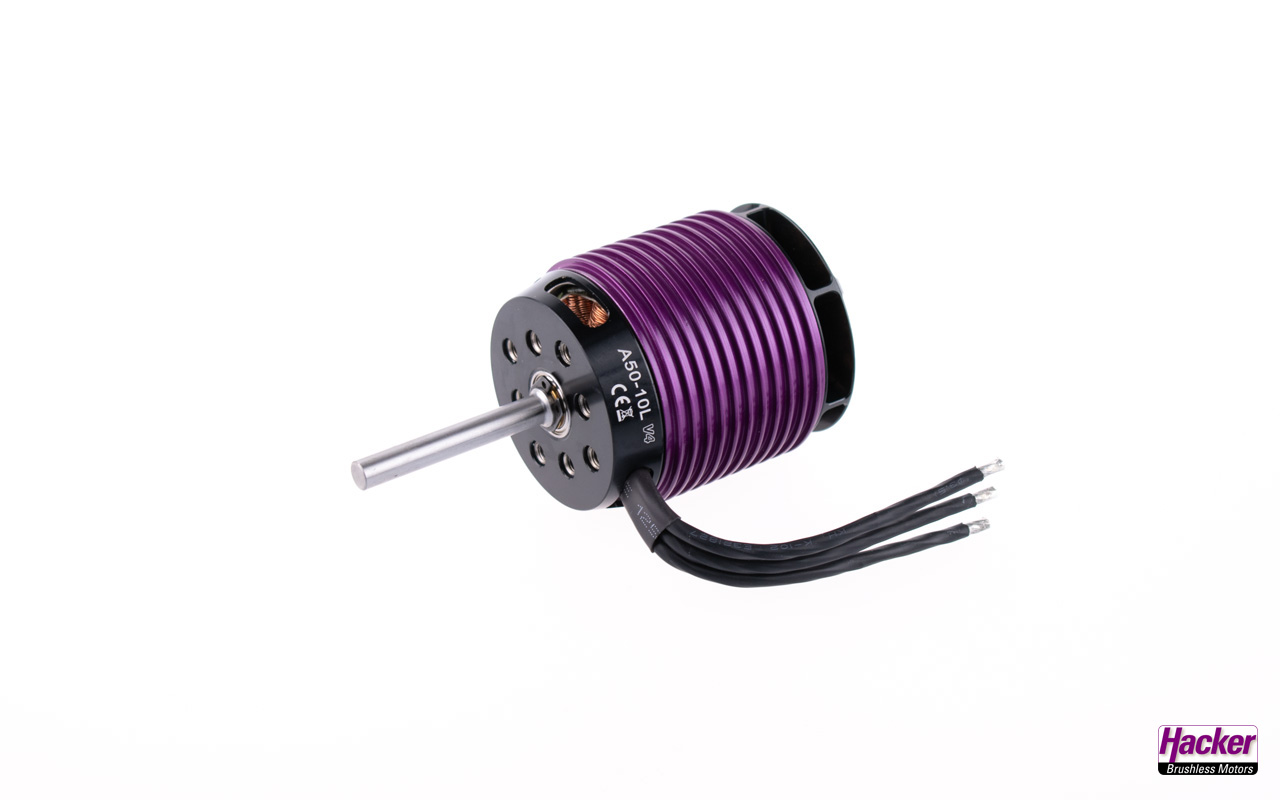

Outrunner electric motor A50-10L Turnado V4 kv530 (with long shaft)

Product description and features

Hacker Motor outrunner electric motor.

Application examples and configuration suggestions

Here you can find possible sample configurations. Explore the setup finder in the Hacker Motor Wiki for more details.

R/C model type	Battery	Miscellaneous
Helicopters	10S to 12S	R/C models with approx. 600 to 800 millimeters (24 to 31.5 inches) rotor blade length, 3D flight.
Gliders with approx. 11 kilogram (24lb) take-off weight.	6S	RFM 12.5×10, controller Master Mezon 120 lite for current consumption during flight of approx. 65 to 70A.
Gliders with approx. 12 kilogram (26.5lb) take-off weight.	6S	RFM 13×10, controller Master Mezon 120 lite for current consumption during flight of approx. 80 to 85A.

Scope of delivery

Hacker A50-10L Turnado V4 kv530 (with long shaft), prop adapter 6.0/8.0mm and instructions. Different folding props can be used to match the model.

Antriebsvorschlag
Propeller	12″-13″
Specifications
max. power range [W] (max.15 sec.)	4000
Poles	10
Turns	10
Idle current (I0) at 8.4V [A]	1.9
Internal resistance (Ri) [Ohm]	0.015
Output shaft	6
RPM max.	25000
Recommended timing [°]	15 – 20
Switching Frequency [kHz]	8
Controller recommendation [A] (depending on setup)	80A – 130A Brushless
Idle speed per volt (kv)	530rpm
max. current [A]	80

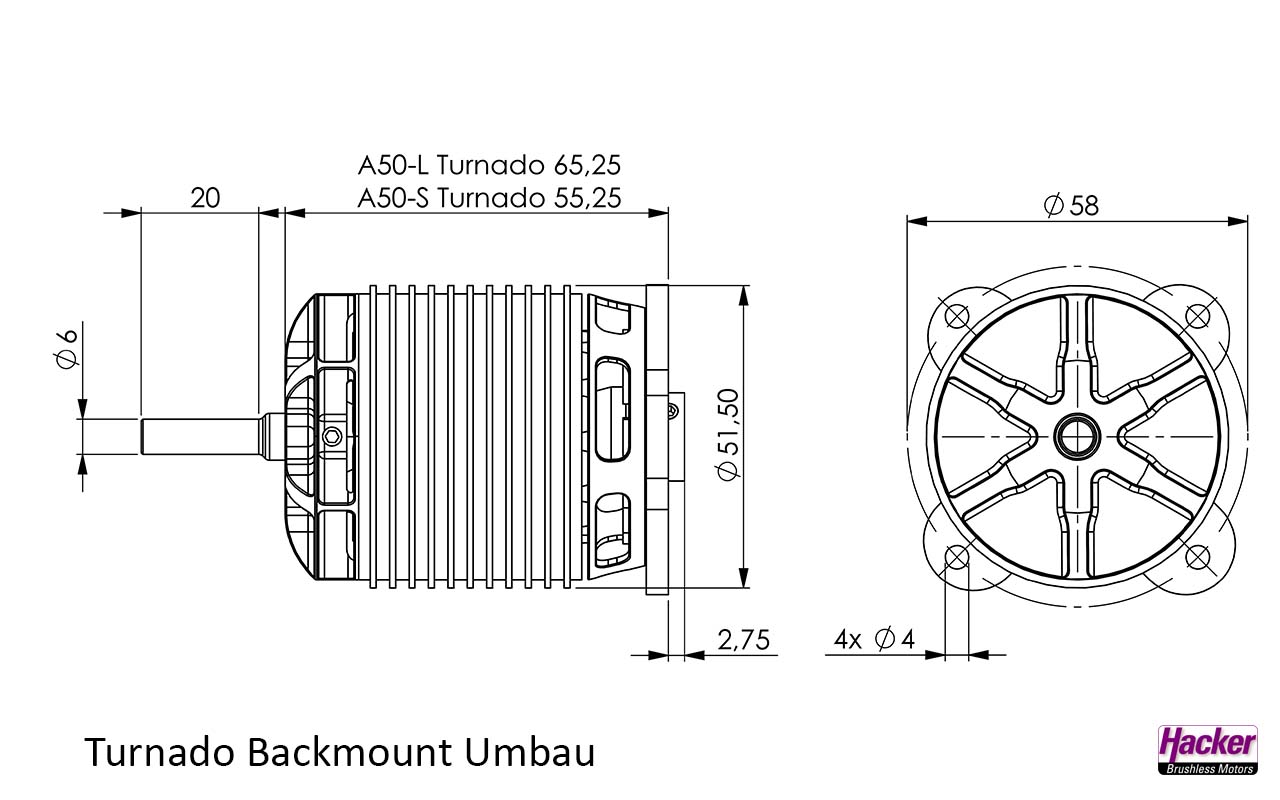

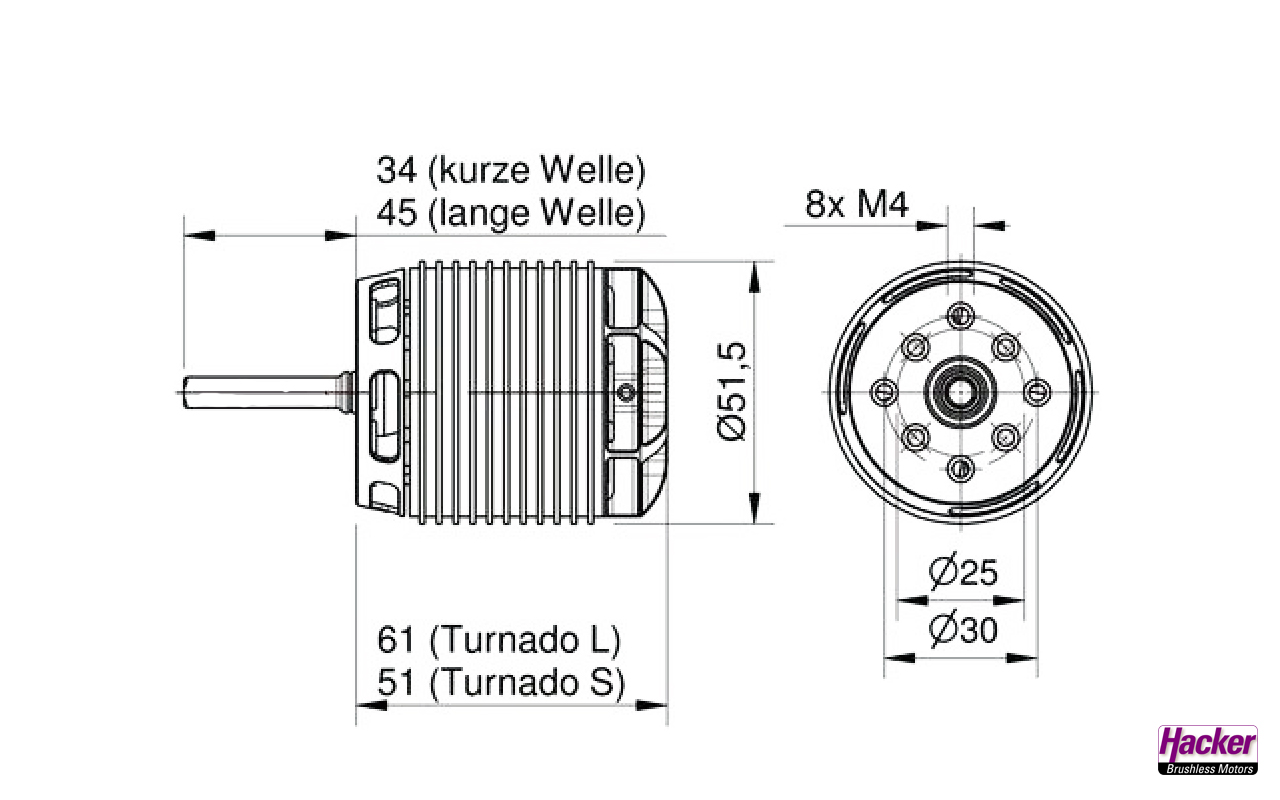

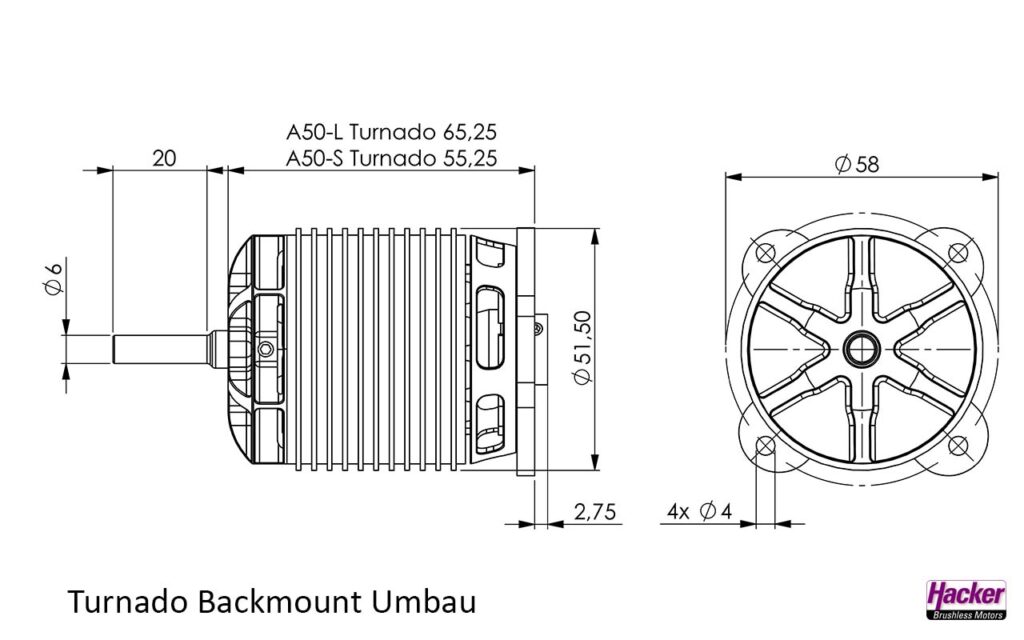

Dimensions and weight
Weight [g]	445
Length [mm]/[in]	61 / 2.4
Outer diameter [mm]/[in]	51.5 / 2.03
Shaft diameter [mm]/[in]	6 (internal: 8)
Delivery contents
Prop Adapter	Ja
Mounting cross	Nein
Gold plug mm (recommended)	4
Backmount mountable	Optional
Front mountable	Ja
