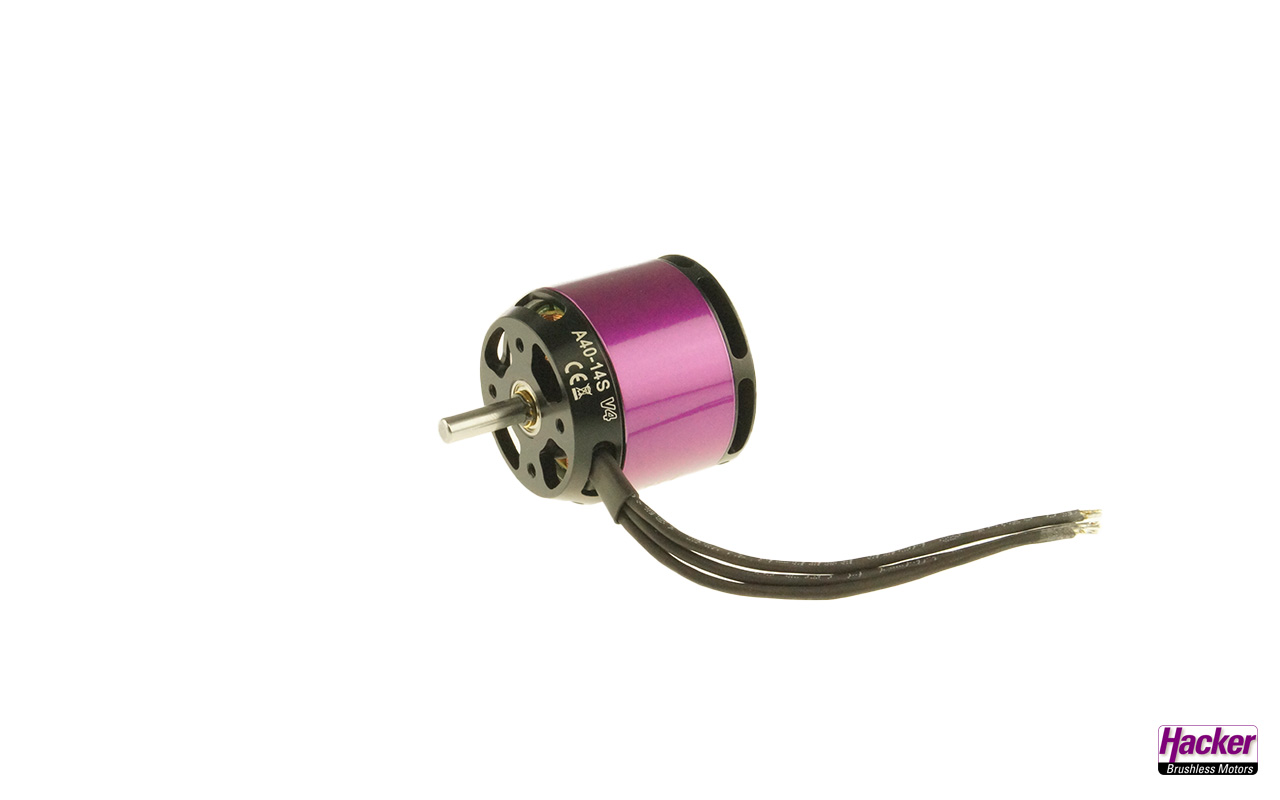

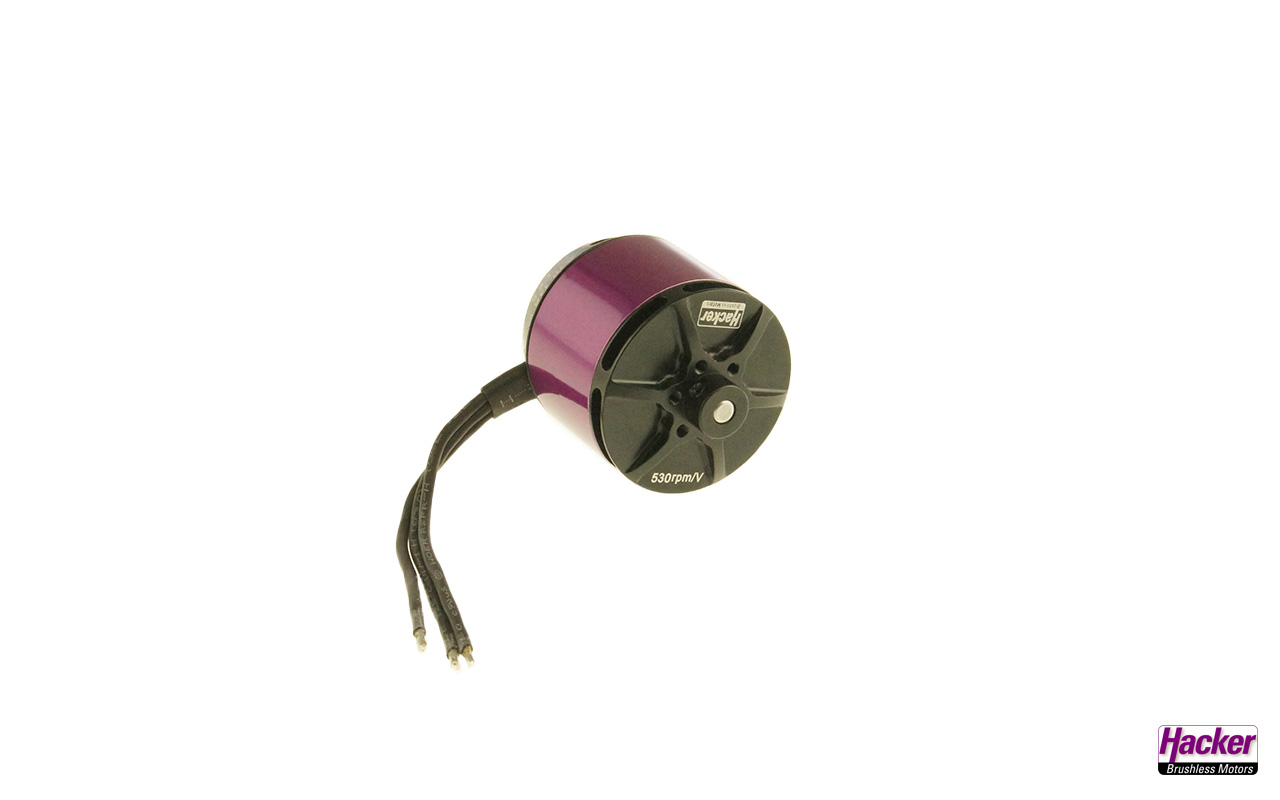

HACKER A40-14S V4 OUTRUNNER KV530

Varenr. 33726609
Kategori:
kr 1588 ,-
1 igjen på lager
Eller

A40-14S V4 kv530



Product description and features

Our range of A40 outrunner motors includes both an 8-pole and a 14-pole version. The A40 motors have been specially developed for use in medium-sized motor and glider models up to 4 kg, such as motor planes, dogfighters, fun and aerobatic planes. In combination with our proven 6.7:1 planetary gearbox, there are also three versions for larger electric gliders up to approx. 10 kg take-off weight.

This weight-optimised high-end motor with a weight of only 198g fits perfectly in motor models up to 2.3 kg and gliders up to 4.5 kg.

Accessories

You will find the suitable regulator, batteries and a suitable propeller in the accessories tab.

Scope of delivery

1x A40-14S V4 kv530, accessories for front and back mount, prop driver and instructions.



Specifications

max. power range [W] (max.15 sec.)

900

Poles

14

Idle current (I0) at 8.4V [A]

0,95

Internal resistance (Ri) [Ohm]

0,040

Recommended timing [°]

20 – 25

Switching Frequency [kHz]

8

Controller recommendation [A] (depending on setup)

55 – 70

Idle speed per volt (kv)

530

Dimensions and weight

Weight [g]

198

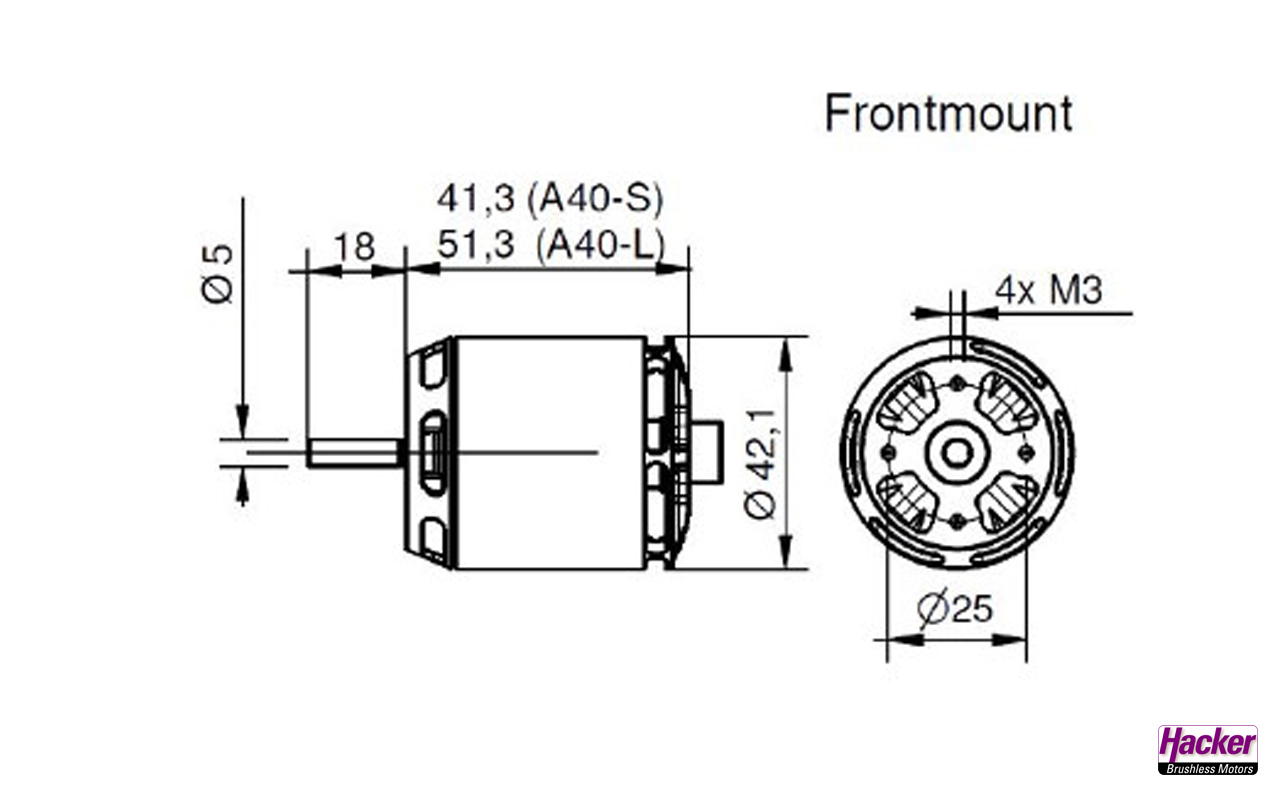

Length [mm]/[in]

42

Outer diameter [mm]/[in]

41,7

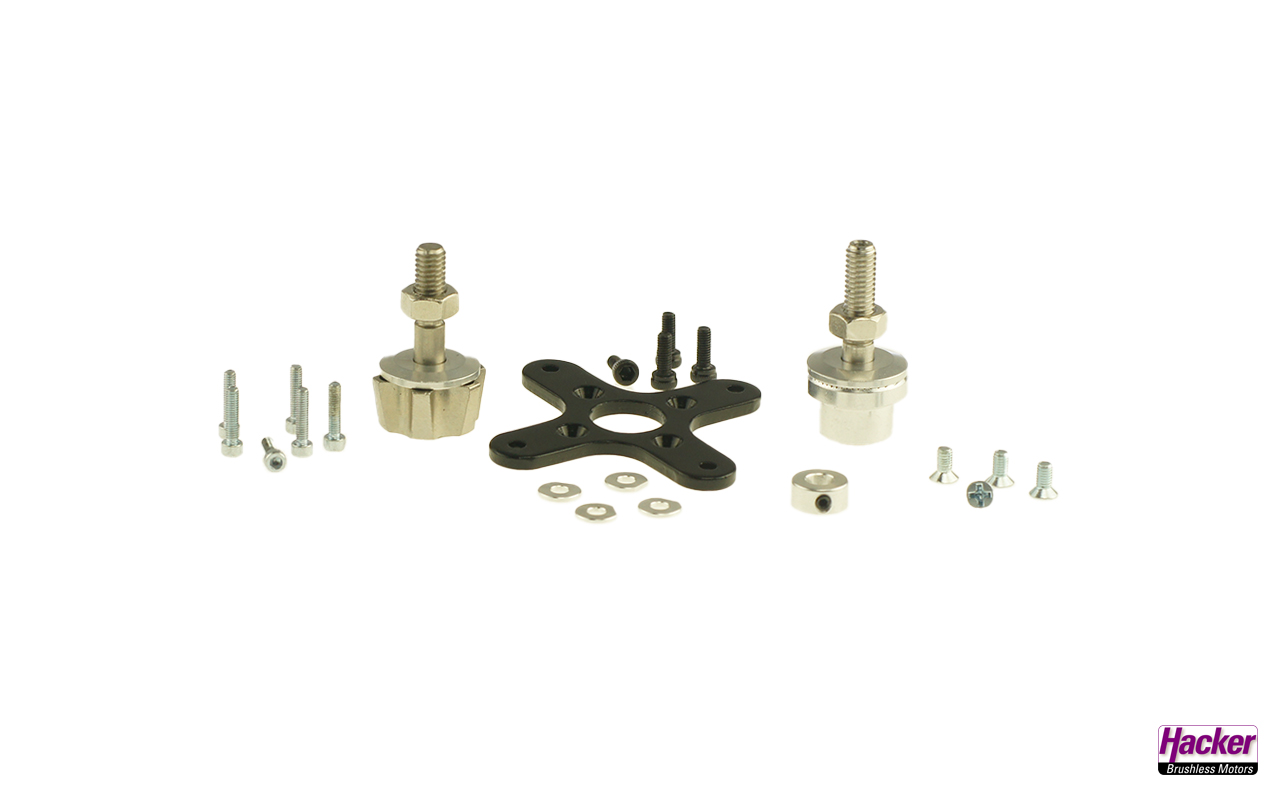

Delivery contents

Prop Adapter

Ja

Mounting cross

Ja

Gold plug mm (recommended)

4

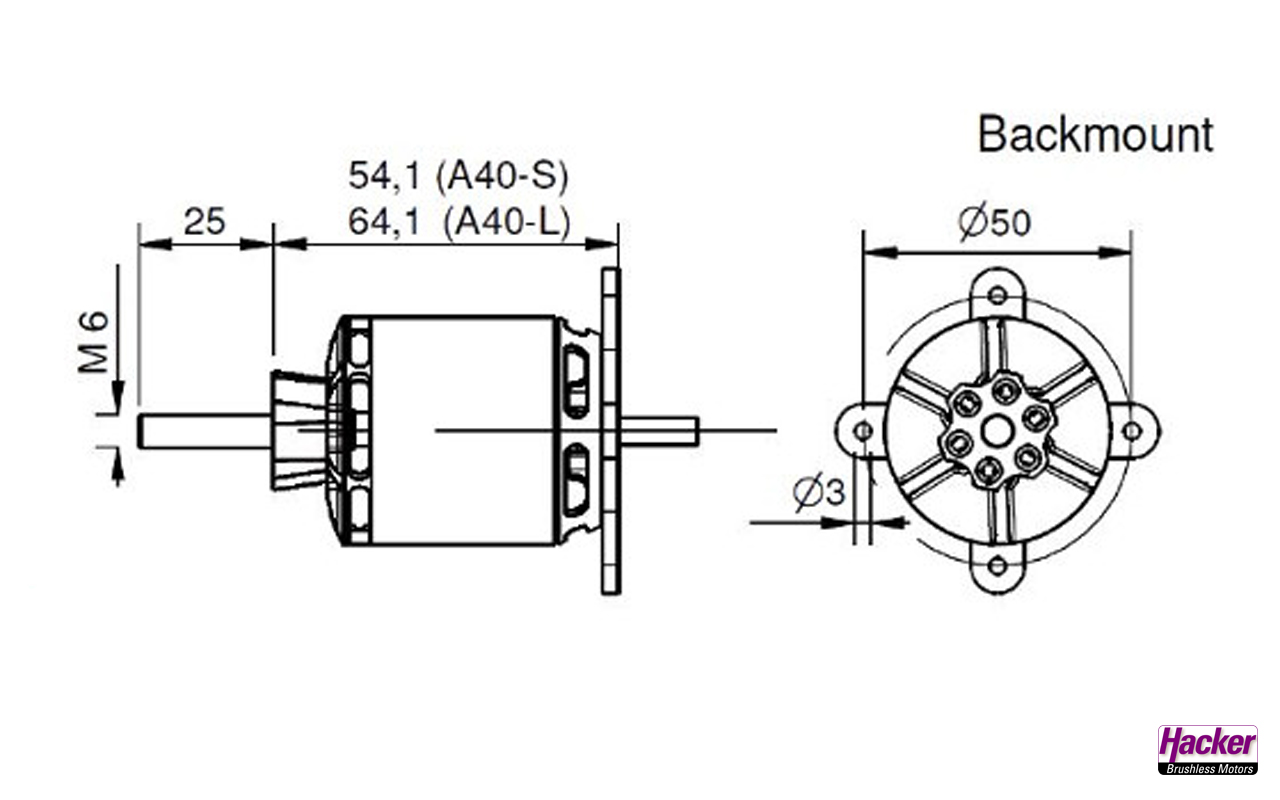

Backmount mountable

Ja

Front mountable

Ja





Propeller ACC-Z 14×8 ACC 13×11 APC 14×7
LiPo 4S 5S 5S
Voltage [V] 14,8 18,5 18,5
Current [A] 36 44 36
Power [W] 533 814 666
RPM 6420 7800 8300
Controller [A] 45-70 50-70 45-70
Timing[°] 20-25 20-25 20-25
