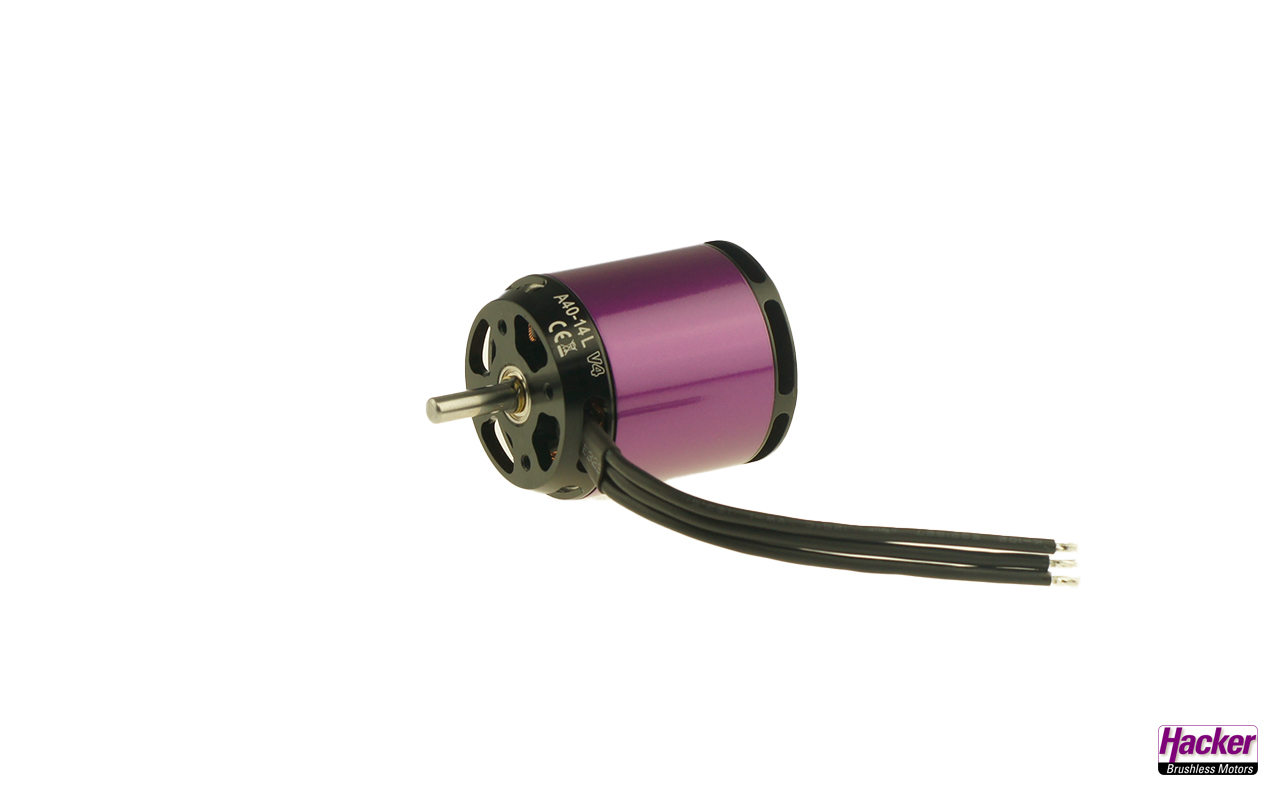

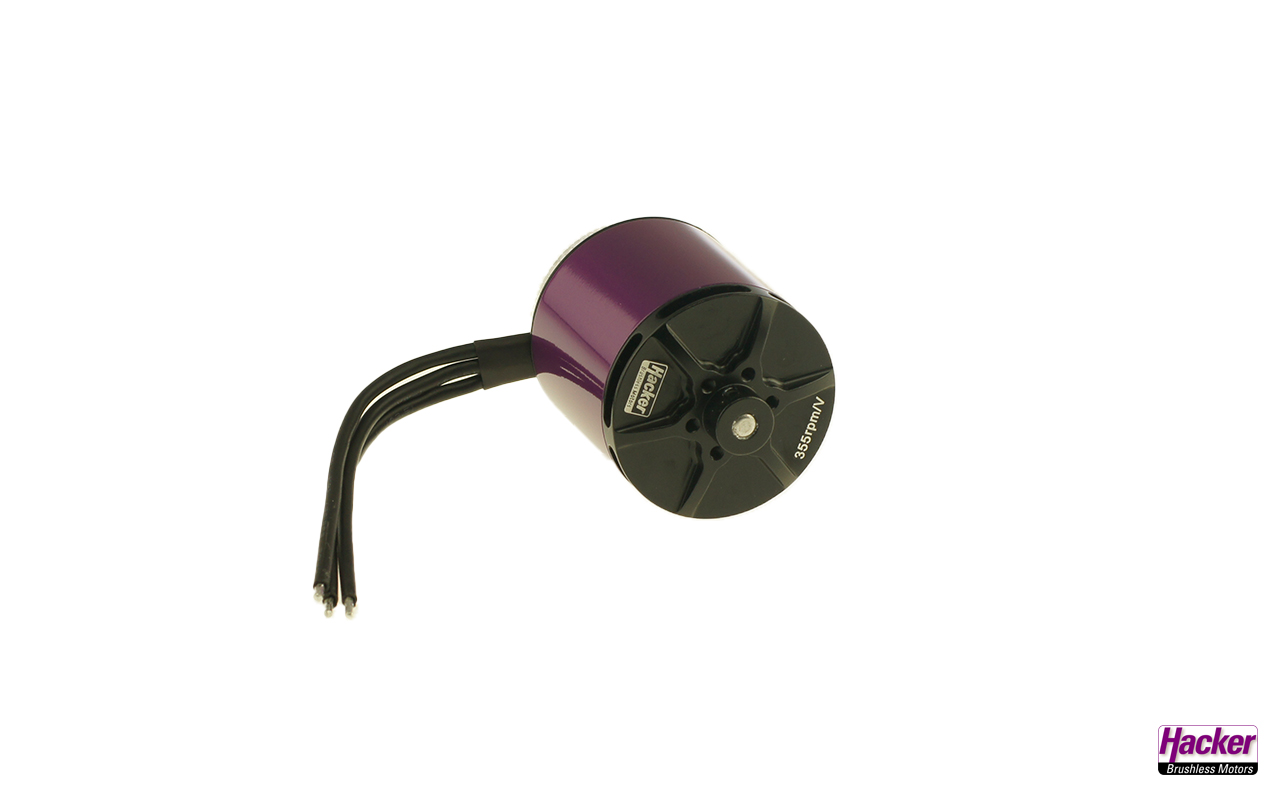

HACKER A40-14L V2 14-POLE
A40-14L V4 kv355
Product description and features
Our range of A40 outrunner motors includes both an 8-pole and a 14-pole version. The A40 motors have been specially developed for use in medium-sized motor and glider models up to 4 kg, such as motor planes, dogfighters, fun and aerobatic planes. In combination with our proven 6.7:1 planetary gearbox, there are also three versions for larger electric gliders up to approx. 10 kg take-off weight.
This weight-optimised high-end motor with a weight of only 275g fits perfectly in motor models up to 2.3 kg and gliders up to 5.5 kg.
Accessories
You will find the suitable regulator, batteries and a suitable propeller in the accessories tab.
Scope of delivery

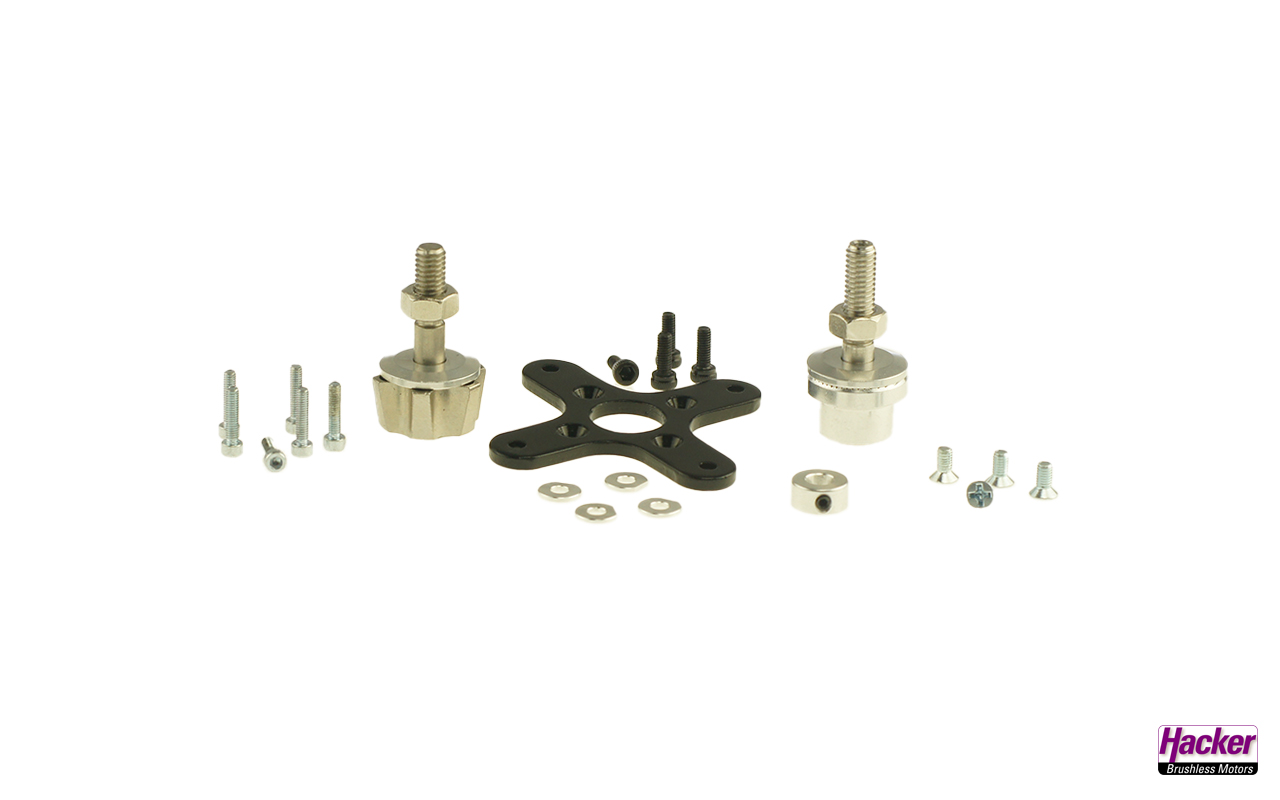

1x A40-14L V4 kv355, accessories for front and back mount, prop driver and instructions.
|
Specifications |
|
|
max. power range [W] (max.15 sec.) |
1100 |
|
Poles |
14 |
|
Idle current (I0) at 8.4V [A] |
0,85 |
|
Internal resistance (Ri) [Ohm] |
0,050 |
|
Recommended timing [°] |
20 – 25 |
|
Switching Frequency [kHz] |
8 |
|
Controller recommendation [A] (depending on setup) |
55 – 70 |
|
Idle speed per volt (kv) |
355 |
|
Dimensions and weight |
|
|
Weight [g] |
275 |
|

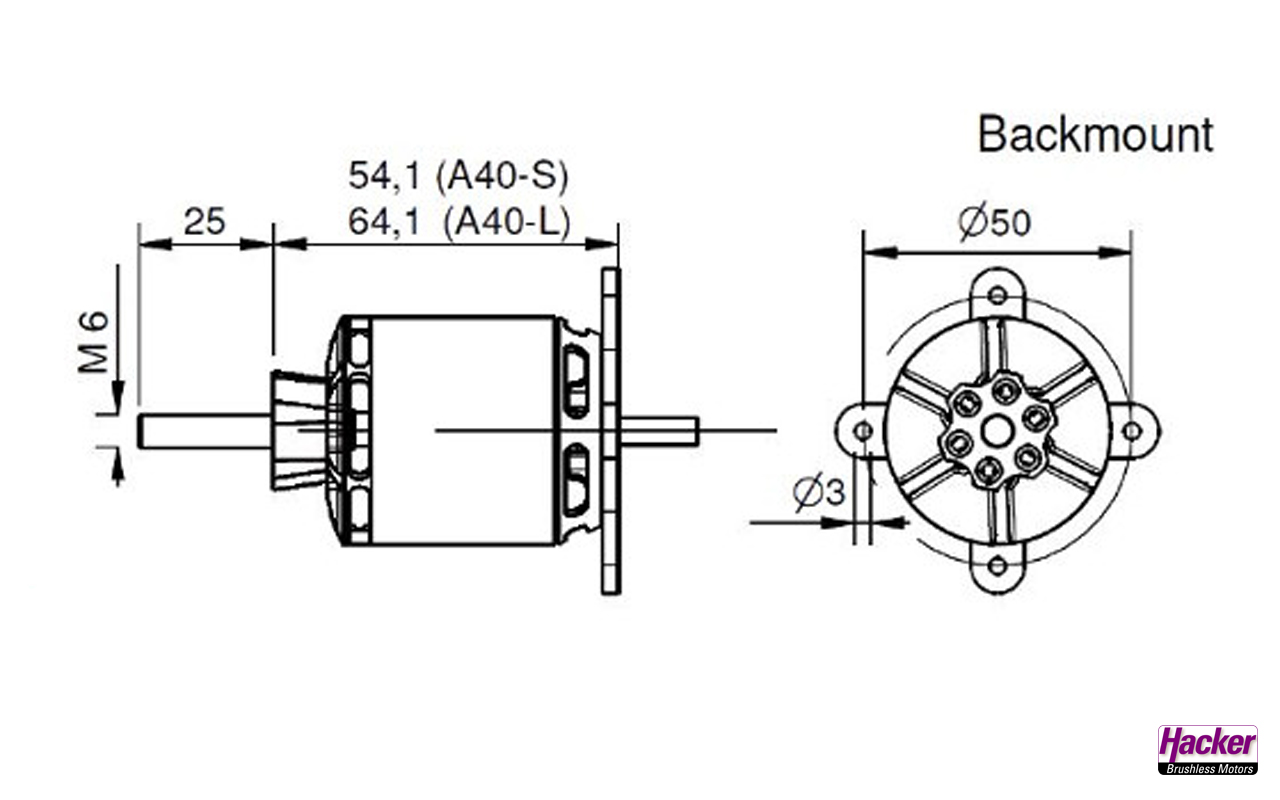

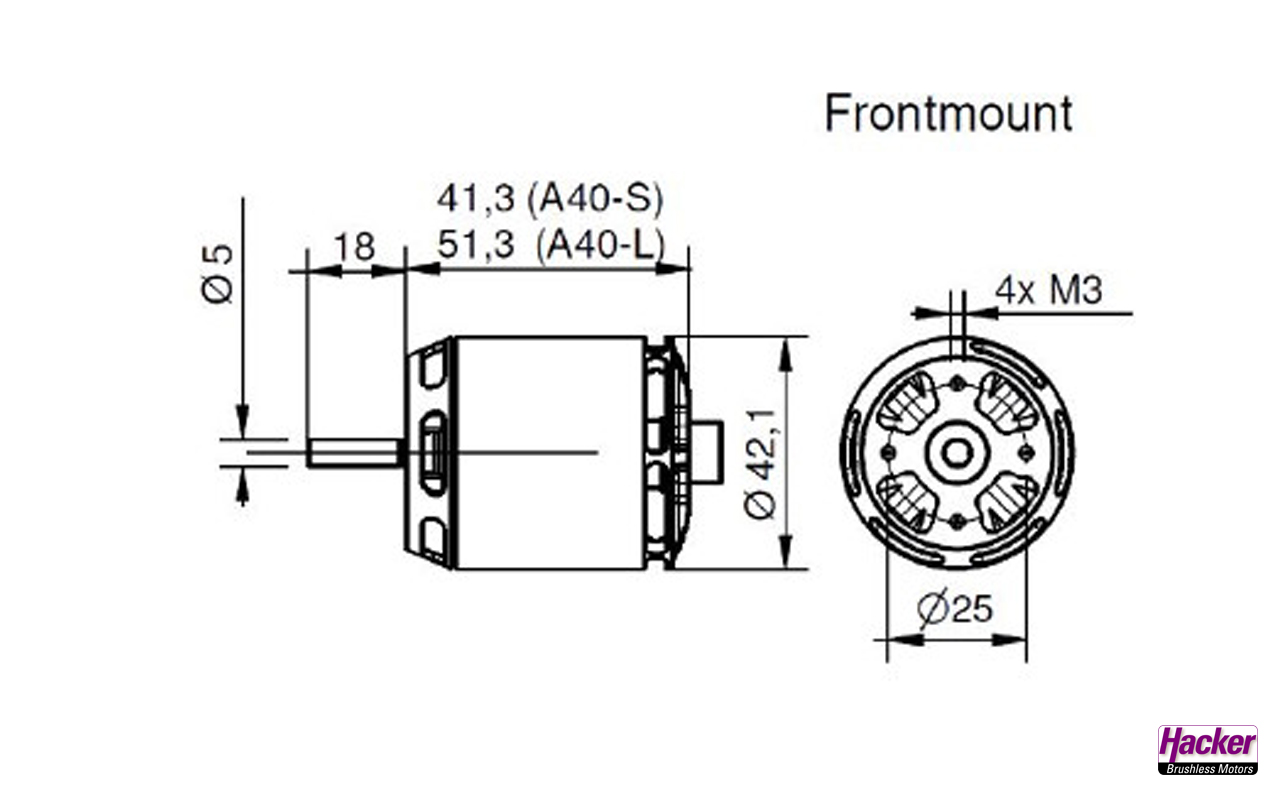

Length [mm]/[in] |
52 |
|
Outer diameter [mm]/[in] |
41,7 |
|
Shaft diameter [mm]/[in] |
5 |
|
Delivery contents |
|
|
Prop Adapter |
Ja |
|
Mounting cross |
Ja |
|
Gold plug mm (recommended) |
4 |
|
Backmount mountable |
Ja |
|
Front mountable |
Ja |
| Propeller | ACC 16×10 | ACC 17×11 |
| LiPo | 6S | 5S |
| Voltage [V] | 22,2 | 18,5 |
| Current [A] | 50 | 50 |
| Power [W] | 1100 | 925 |
| RPM | 6038 | 5048 |
| Controller [A] | 70-80 | 70-80 |
| Timing[°] | 20-25 | 20-25 |
| Attributter | Verdi |
|---|---|
| Produsent |
Hacker |
| Modelltype |
Brushless motor |
