HACKER A40-12L V4 OUTRUNNER MOTOR 14 POLE

Name: HACKER A40-12L V4 OUTRUNNER MOTOR 14 POLE -
SKU: HKRA4012L14P
Price: 1350 NOK
Availability: InStock

Varenr. HKRA4012L14P

Kategori: Hacker

kr 1688 ,-

A40-12L V4 kv410

Product description and features

Our range of A40 outrunner motors includes both an 8-pole and a 14-pole version. The A40 motors have been specially developed for use in medium-sized motor and glider models up to 4 kg, such as motor planes, dogfighters, fun and aerobatic planes. In combination with our proven 6.7:1 planetary gearbox, there are also three versions for larger electric gliders up to approx. 10 kg take-off weight.

This weight-optimised high-end motor with a weight of only 275g fits perfectly in motor models up to 2.3 kg and gliders up to 5.5 kg.

Accessories

You will find the suitable regulator, batteries and a suitable propeller in the accessories tab.

Scope of delivery

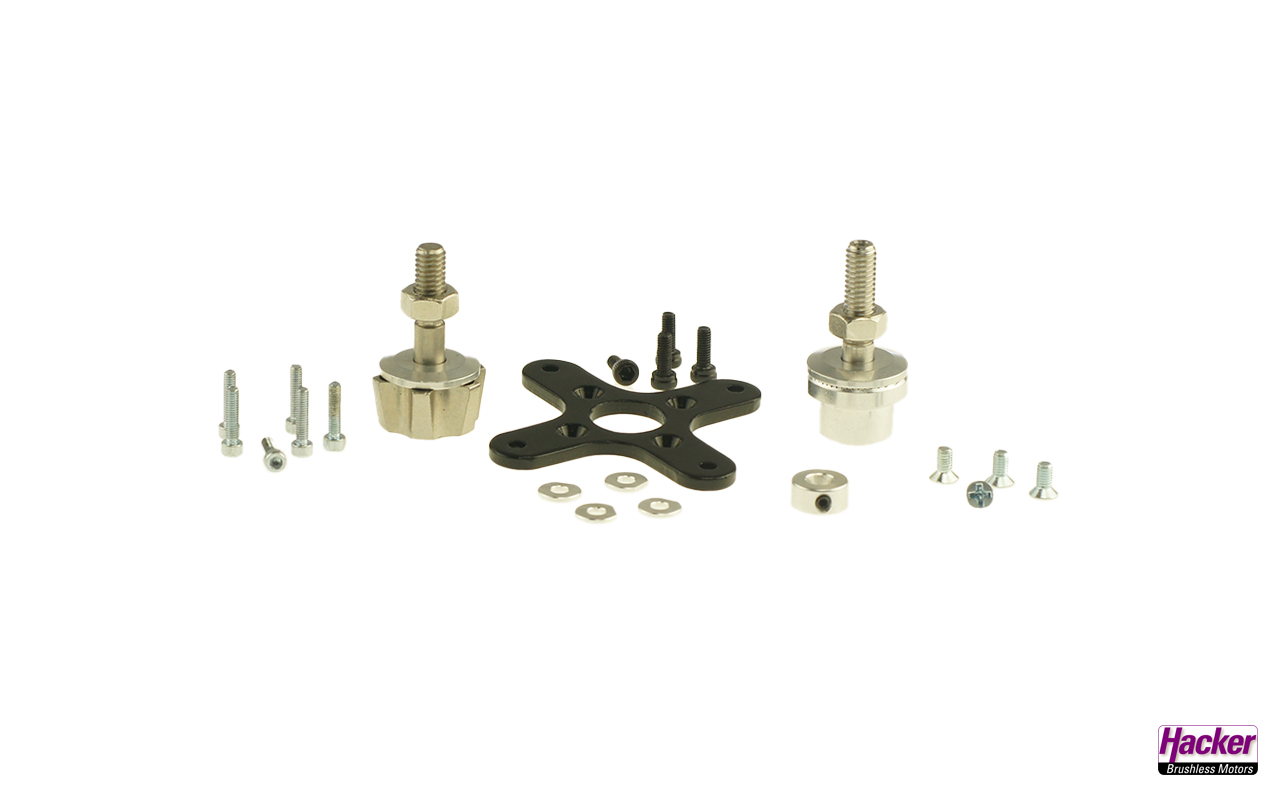

1x A40-12L V4 kv410, accessories for front and back mount, prop driver and instructions.

Specifications
max. power range [W] (max.15 sec.)	1100
Poles	14
Idle current (I0) at 8.4V [A]	1,04
Internal resistance (Ri) [Ohm]	0,039
Recommended timing [°]	20 – 25
Switching Frequency [kHz]	8
Controller recommendation [A] (depending on setup)	55 – 70
Idle speed per volt (kv)	410
Dimensions and weight
Weight [g]	275

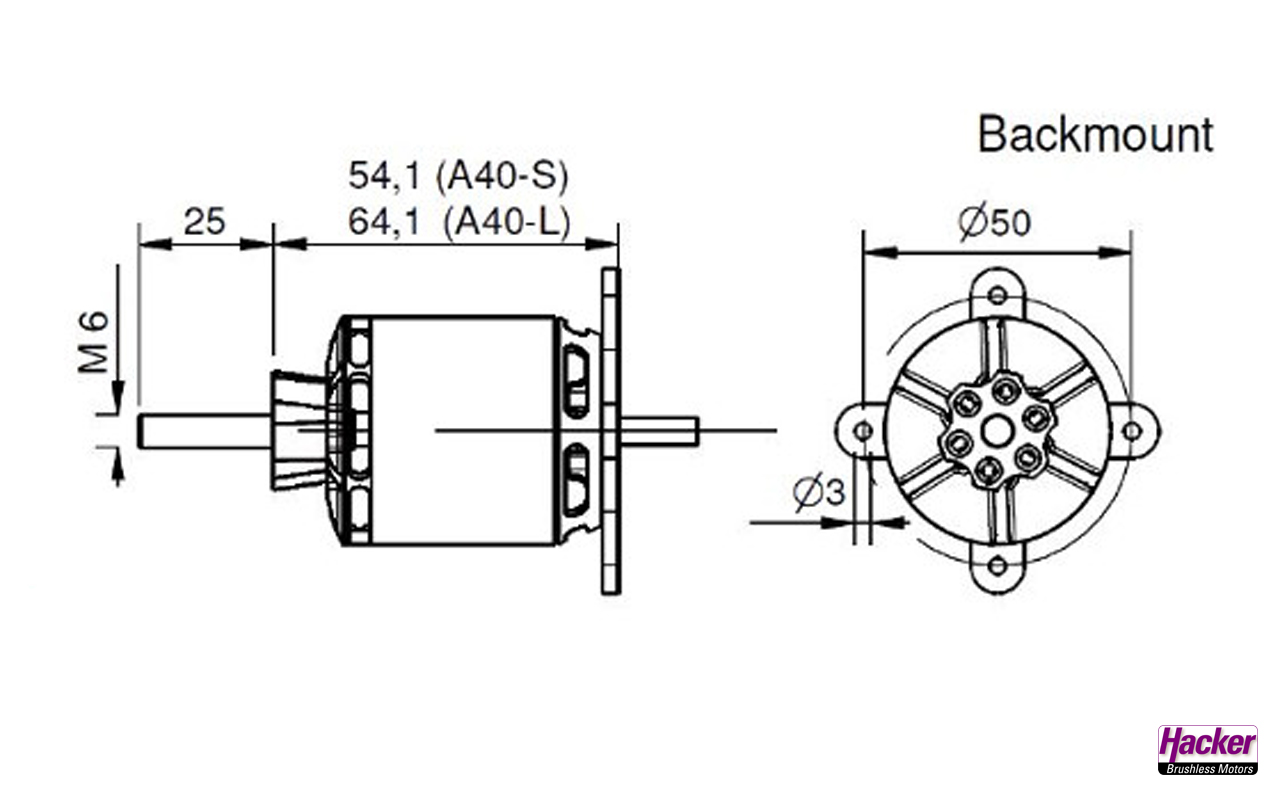

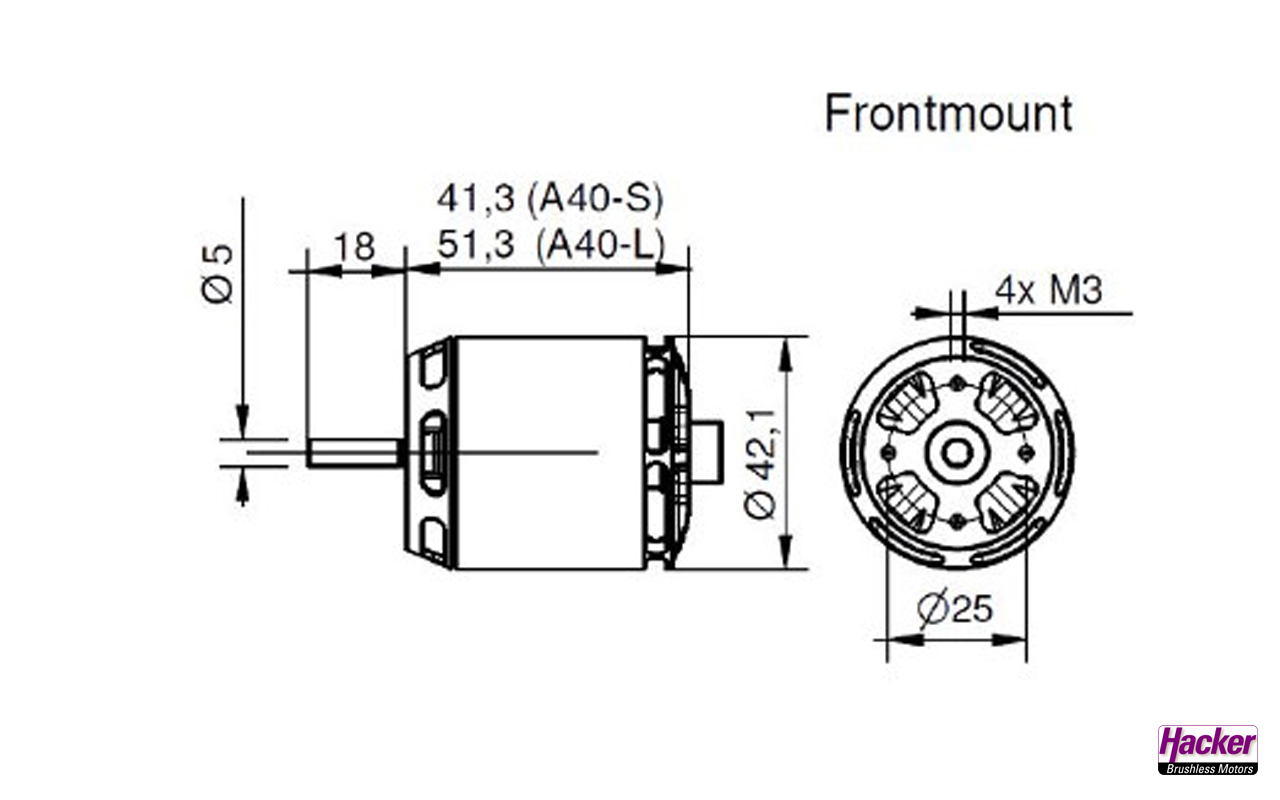

Length [mm]/[in]	52
Outer diameter [mm]/[in]	41,7
Shaft diameter [mm]/[in]	5
Delivery contents
Prop Adapter	Ja
Mounting cross	Ja
Gold plug mm (recommended)	4
Backmount mountable	Ja
Front mountable	Ja
