HACKER A30-14L V4 OUTRUNNER MOTOR – 15716116

Name: HACKER A30-14L V4 OUTRUNNER MOTOR - 15716116 -
SKU: FTHKRA3014L
Price: 988 NOK
Availability: InStock

Varenr. FTHKRA3014L

Kategori: Hacker

kr 1235 ,-

A30-14 L V4 kv800

Product description and features

This small and lightweight outrunner is offered in four lengths (S, M, L, XL). The A30 motors, are perfect for operation on 3S or 4S LiPo batteries. The A30-V4 series comes with an optimized integrated fan and high quality ball bearings. This increases efficiency, stability and increases the range of use. The perfect drive in motor models, electric gliders, paragliders and 3D models.

This weight-optimized high-end motor with a weight of only 143g fits perfectly in motor models up to 1.4 kg and gliders up to 2,1kg.

Accessories

You will find the suitable controller, batteries as well as a suitable propeller in the accessories tab.

Scope of delivery

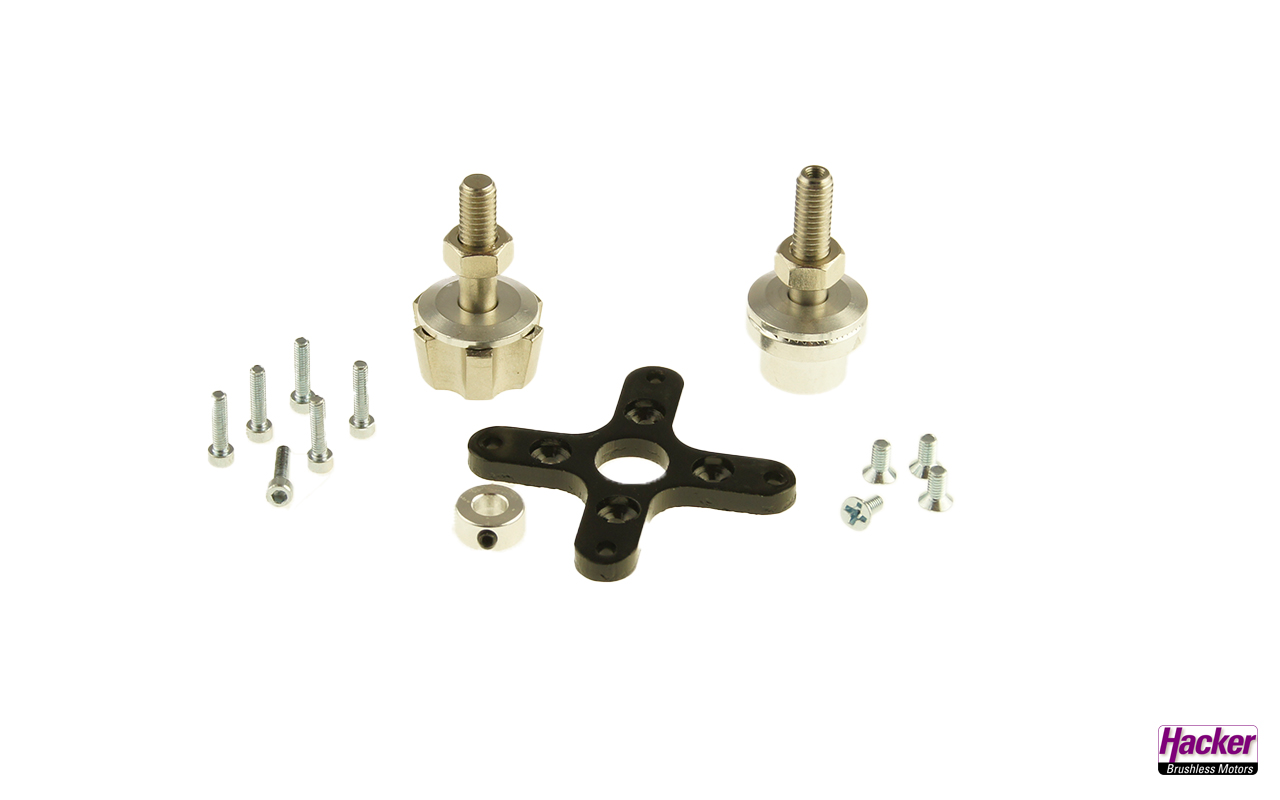

1x A30-14 L V4 kv800, accessories for front and rear mounting, prop driver and instructions.

Specifications
max. power range [W] (max.15 sec.)	500
Poles	14
Idle current (I0) at 8.4V [A]	1,6
Internal resistance (Ri) [Ohm]	0,036
Output shaft	5
Recommended timing [°]	20 – 25
Switching Frequency [kHz]	8
Idle speed per volt (kv)	800
Dimensions and weight
Weight [g]	143
Length [mm]/[in]	40
Outer diameter [mm]/[in]	37,2
Shaft diameter [mm]/[in]	5
Delivery contents
Prop Adapter	Ja
Mounting cross	Ja
Gold plug mm (soldered)	3,5
Backmount mountable	Ja
Front mountable	Ja
