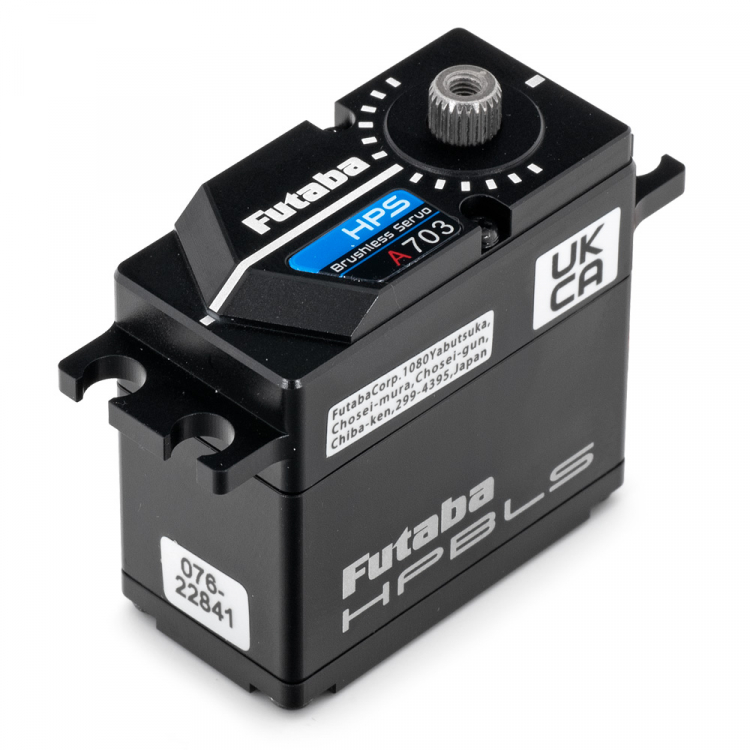

FUTABA HPS-A703 SERVO 66KG 0,12S S.BUS2

Futaba HPS-A703 – S.BUS2 High-Voltage Standard Size Airplane Servo

High Performance Standard Size Servo with Brushless Motor

FEATURES:

• For all-purpose giant scale airplanes

• Programmable/HV Brushless Servo

• Custom New high power Brushless Motor

• Suggested upgrade for BLS172SV/177SV

• Programmable and compatible with S.Bus and S.Bus2 systems

• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately

• Final gear material is Stainless Steel

• Upper/middle/bottom: Aluminum Case

SPEED:

• 0.13 sec/60°at 6.6V

• 0.12 sec/60° at 7.4V

TORQUE:

• 61 kg/cm at 6.6V

• 66 kg/cm at 7.4V

SIZE:

• 40.5 x 21 x 39.4 mm

WEIGHT:

• 82 g

RATED VOLTAGE:

• DC 6.0V-7.4V

OPERATING VOLTAGE:

• DC 4.8-8.4V
