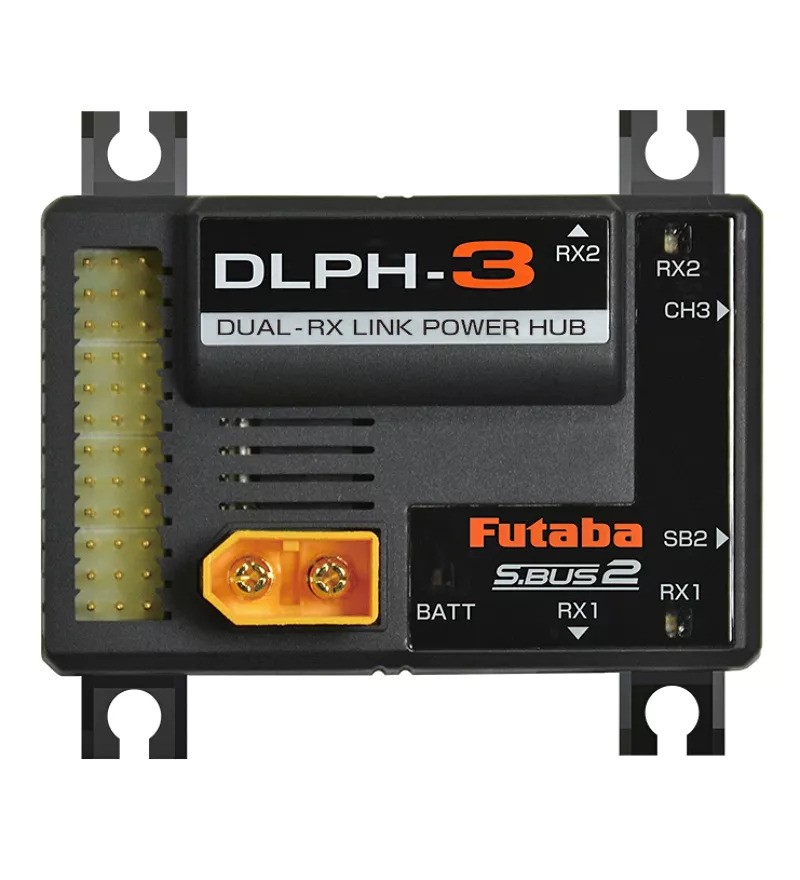

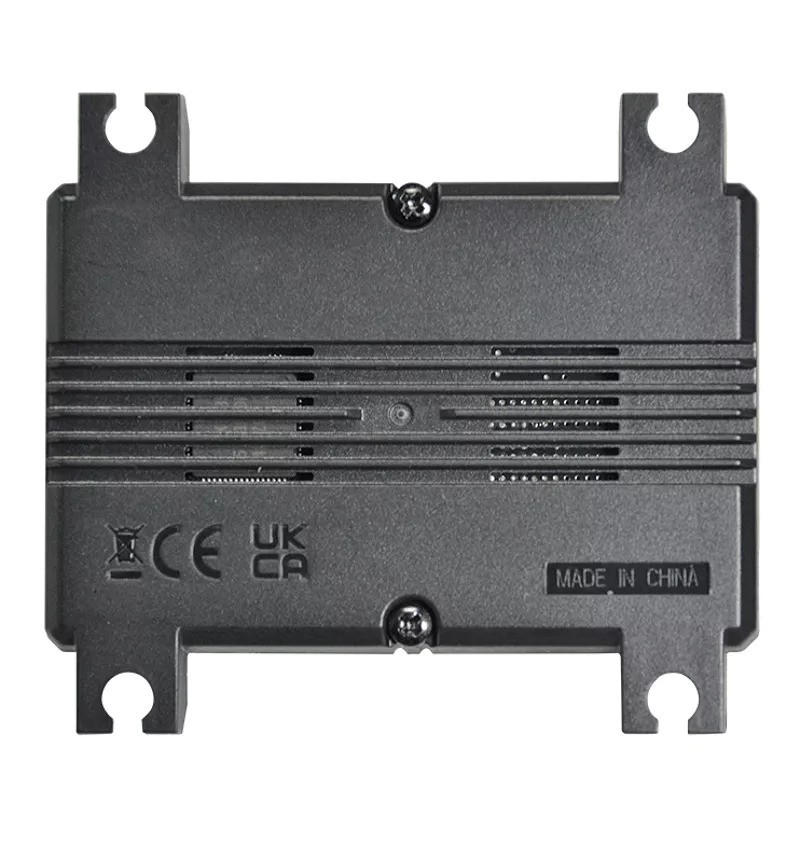

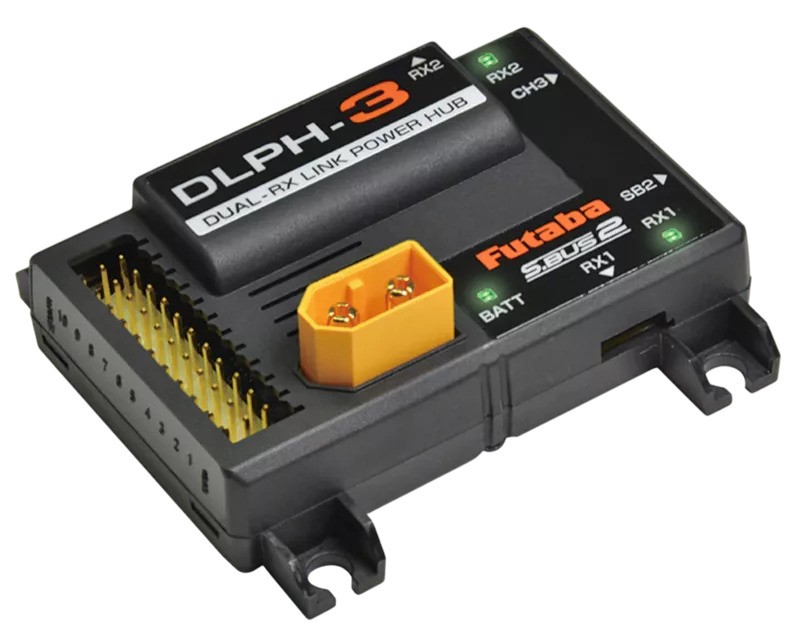

FUTABA DUAL RX LINK POWER HUB DLPH-3

Futaba 05102759-3 – DLPH-3 Dual RX Link Power Hub

MAX60A! 10-Channel Dual RX Link Power Hub

Perfect for large aircraft with multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26-channel support! The DLPH-3’s compact design makes it easy to install in 50-70cc aircraft. Even in larger aircraft, using two units allows for split power supply, providing additional safety redundancy.

Product Features:

• Connects to two receivers and batteries.

• Electronic switch (current controlled by FET circuit).

• Telemetry function displays power supply voltage.

• Compatible with three battery types and includes protection when connecting different types of batteries.

• Includes protection when the battery is low.

DLPH-3 Specifications:

• Application: Dual-Receiver Switching Device (Dual Rx Link System)

• FET (Rating): Continuous 60A

• Dimensions: 43.6 x 66.0 x 19.3 mm

• Weight: 34.6 g

• Operating Voltage: 6.4 to 13.0 V (XT60 Connector)

Included accessories:

• Switch, Receiver connection cables (3), Flange Damper, Eyelets & Wood Screws
