FES EX-UNI8 SYSTEM 2-BLADE 31MM

FES Ex-Uni8 System 2-Blade 31mm

Product description and features

A very easy to remove propeller adapter transforms your Scaleglider in seconds from the electric model to a pure glider and back. Slight pressure on the Propadapter lock pin allows you to pull off the propadapter unit. The model is still a pure glider with the option for self-launch. Adaptable to various engines and models.

• Easy installation without sawing the nose and thus maintaining the original look and the resale value

• The FES Ex-Uni8 shaft adapter does not protrude through the fuselage tip – not visible from the outside when the propeller is removed

• Aerodynamically negligible – small prop adapter, closely fitting propeller blades

• Safety for pilot, helper and spectator

• Can be attached and removed from the outside within seconds without tools

• Withdrawn propellers can be safely stowed away (e. g. in the fuselage or in the trouser pocket)

• In the locking device, a pull line can be clicked to the model to the starting point and retreat.

• Made in Germany by Torcman

Specifications

• maximal motor power: 3.5kW

• maximal RPM: 15000 rpm

• Diameter snap-on sleeve in front: 12mm

• Lenght snap-on sleeve in front: 12mm

• Diameter ballbearing front: 32mm

• for motor shaft with 8mm (Adapter for 5 and 6mm shaftdiameter available)

• Propadapter wide: 31mm

• Propeller mount: 8mm

• Weight: 87g

Delivery contents

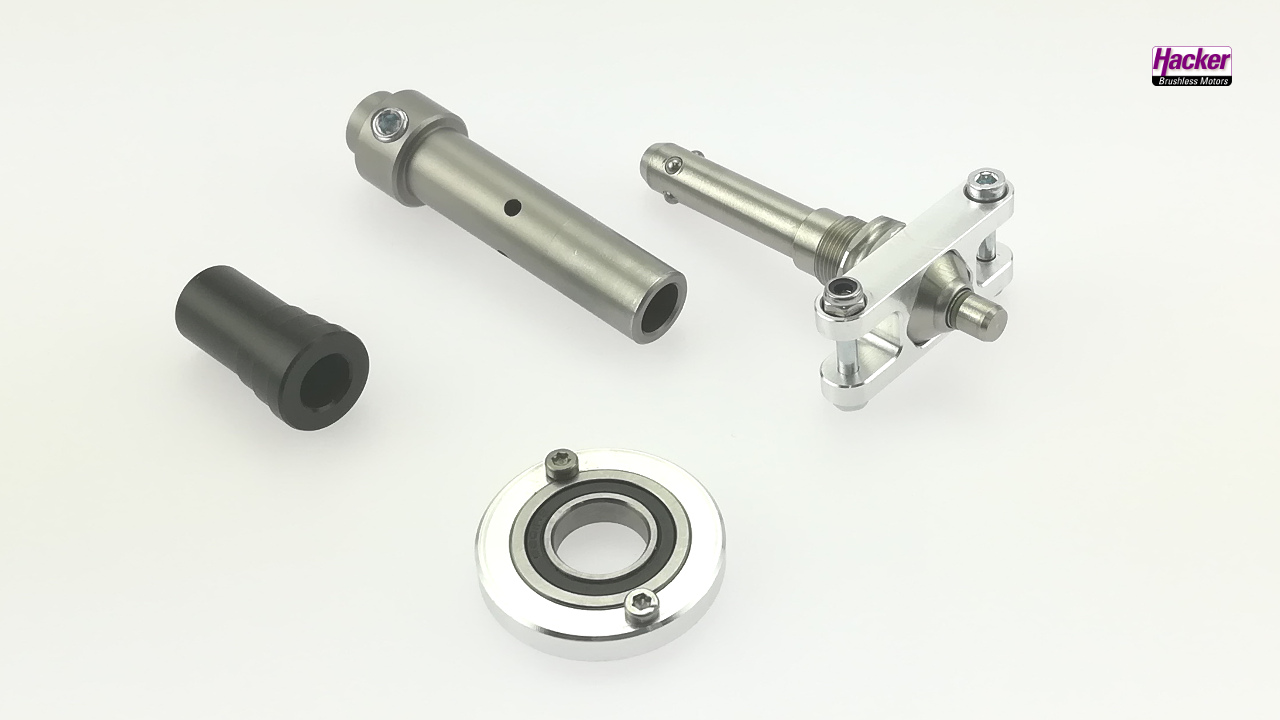

Set contains: Locking sleeve, ball locking bolt with prop adapter, frontframe incl. ballbearing, mounting sleeve
